Kozyard Apollo - Step 14: Assemble Roof Panels

R x4
T4 x2T2 x2
#1 x8
page 18
12’x14’ assembly manual
#1
#1
#1
V43
V44
V45
V46
V11
V11
V12
V46
R
R
R
R
T4
T2
T2
T4
V12
V45
V44
V43
R
#1
#1
#1
T4
T2
V11
V12 V43
V44
V45
V46

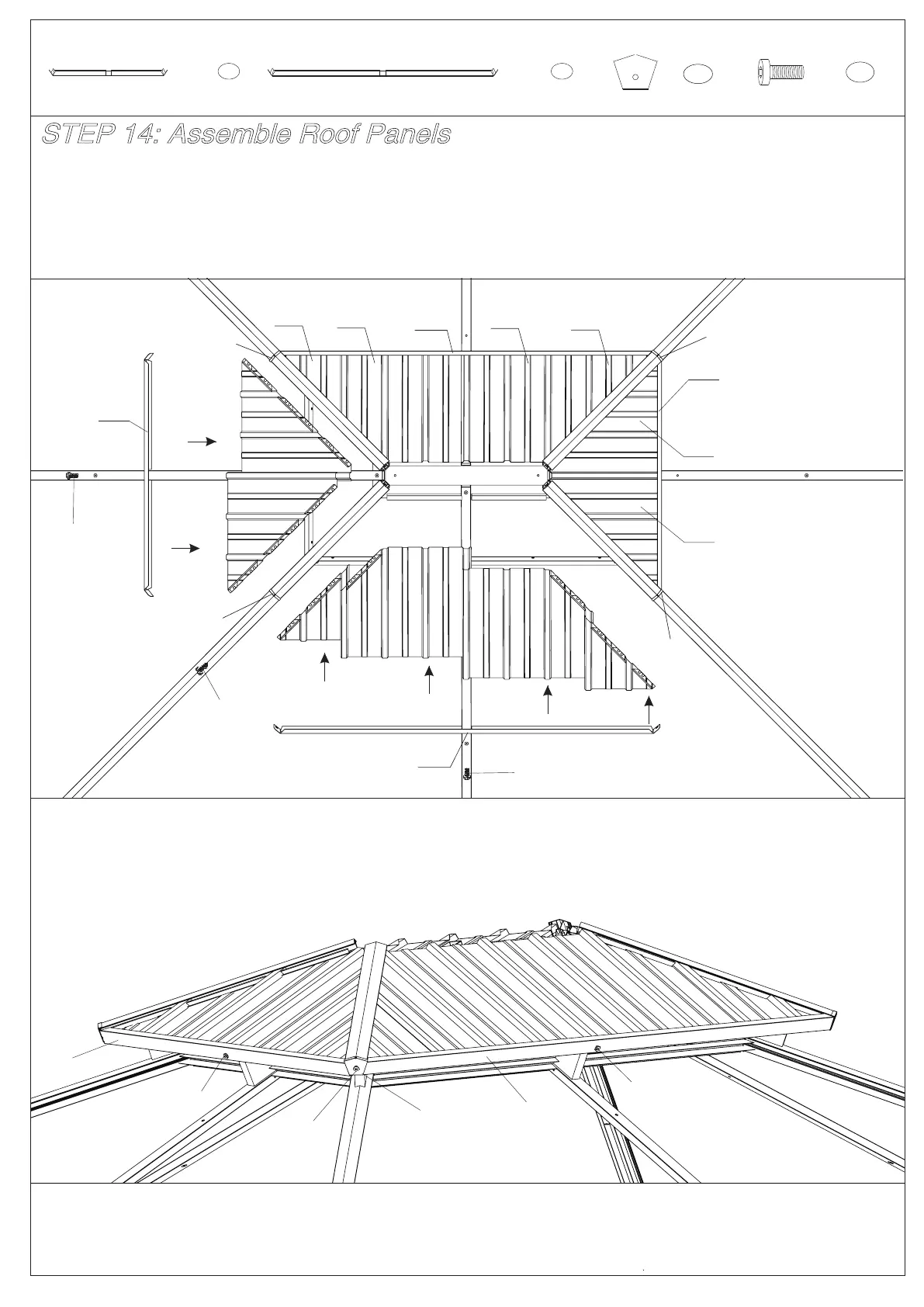

STEP 14: Assemble Roof Panels
1. Insert Roof Panels (Part v11,v12,v43,v44,v45,v46) to upper roof as shown in diagram.
2. Attach Finishing Bars (Part T2,T4) to upper roof with Finish End (Part R) using #1 screws as shown
in diagram.
Parts Required:
