Kozyard Apollo - Page 27

12’X14’ assembly manual
Parts Required:
page 25
P12
Q
14
Q
14
Q
14
Q
14
P12
N1
N1
#11 x12
#1 x4
Perspective:

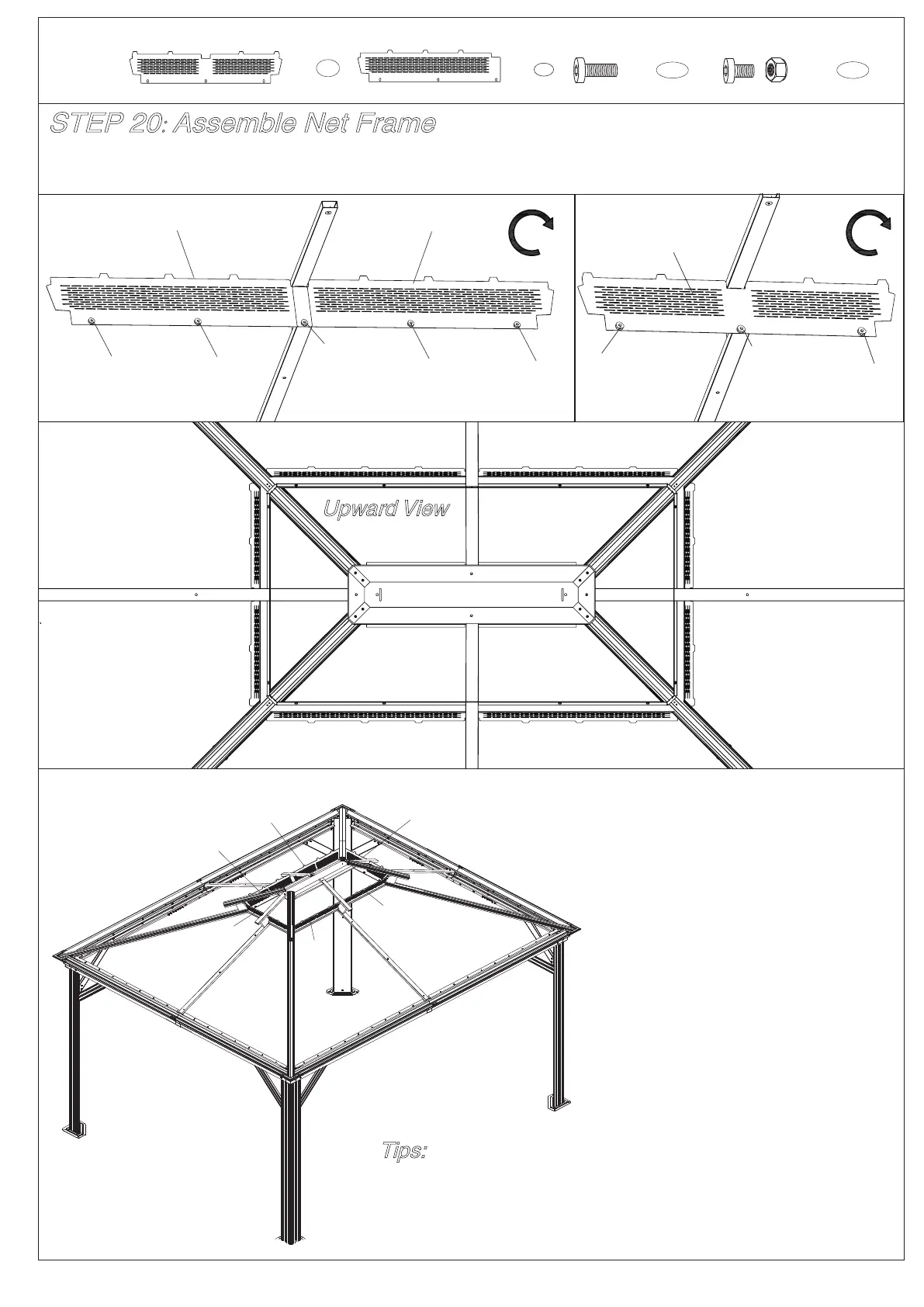

STEP 20: Assemble Net Frame
Attach Net Frames (Part P12,Q14) to Finishing Bars (Part P2, Q4) using #1 & #11 screws as shown
in diagram.
Tips:
The perspective drawing is for demonstrating how to better
assemble final step that sets up Net Frame (Parts P12,Q14).
Q14
Q
14
#1
#11#11
#11 #11
P12
#1
#11
#11
X2 X2
Q14 x4
P12
P12
Q14 Q14
Q14Q14
Upward View
P12 x2
