Kozyard Apollo - Step 19: Affix Roof Panels

12’X14’ assembly manual page 24
At least two people
for this step.
2+
Parts Required:
X36
X80
④
④
④
④
④
③
③
#5
#7
①
①
#10
S
X4
②
②
②
#6
S
X8
③
①
Tip:
S x128
#5 x80
M6x28
#6 x8
M6x45
#7 x36
M6x50
#10 x4
M6x25
Step 19:
ATTENTION – VERY IMPORTANT!

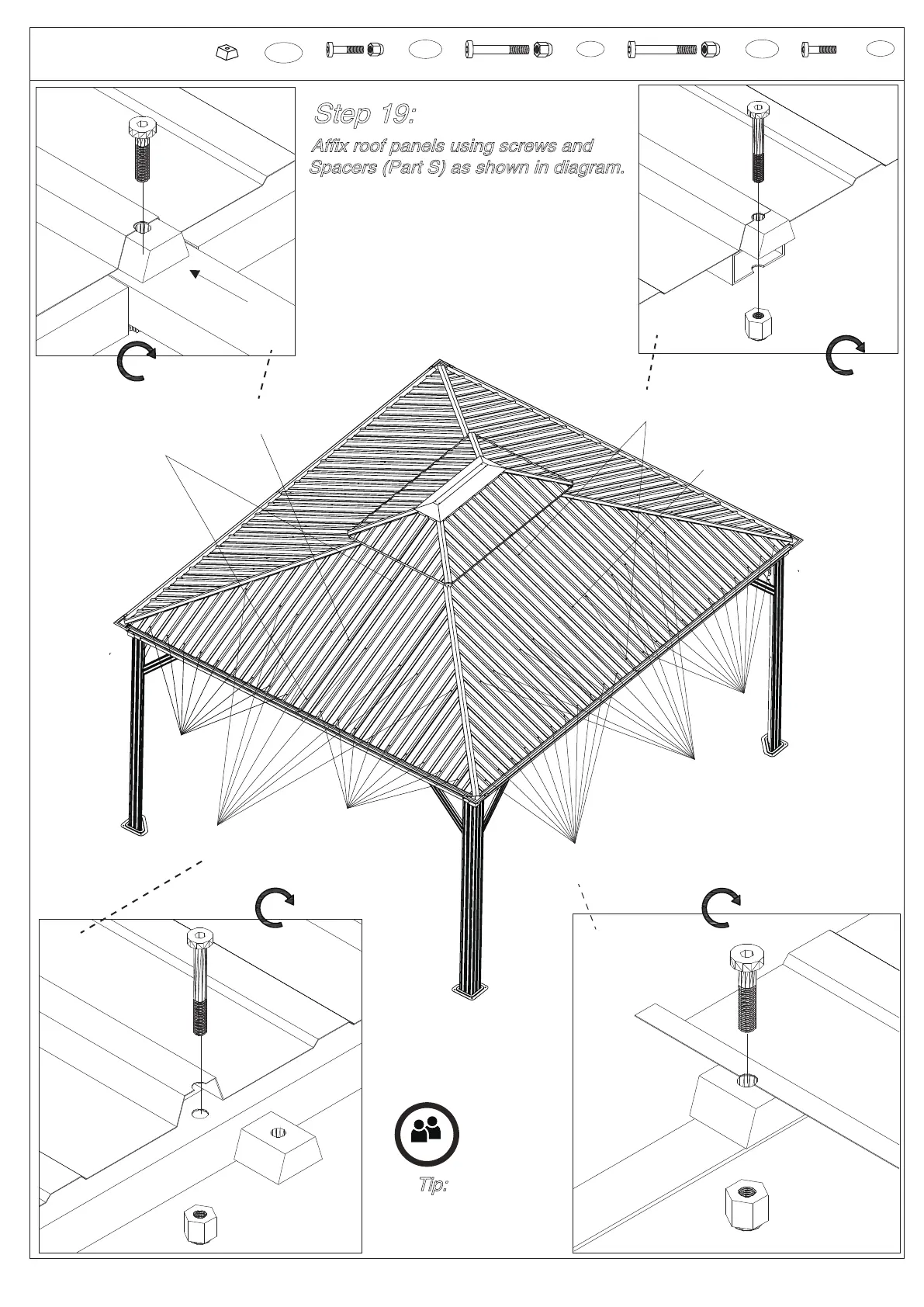

Affix roof panels using screws and
Spacers (Part S) as shown in diagram.
Align all roof panels and screws LOOSELY
(DO NOT TIGHTEN ANY SCREWS) until all
the roof panels are aligned accordingly,
THEN TIGHTEN all screws to lock the
roof panels in place.
