Kozyard Apollo - Page 25

12’X14’ assembly manual

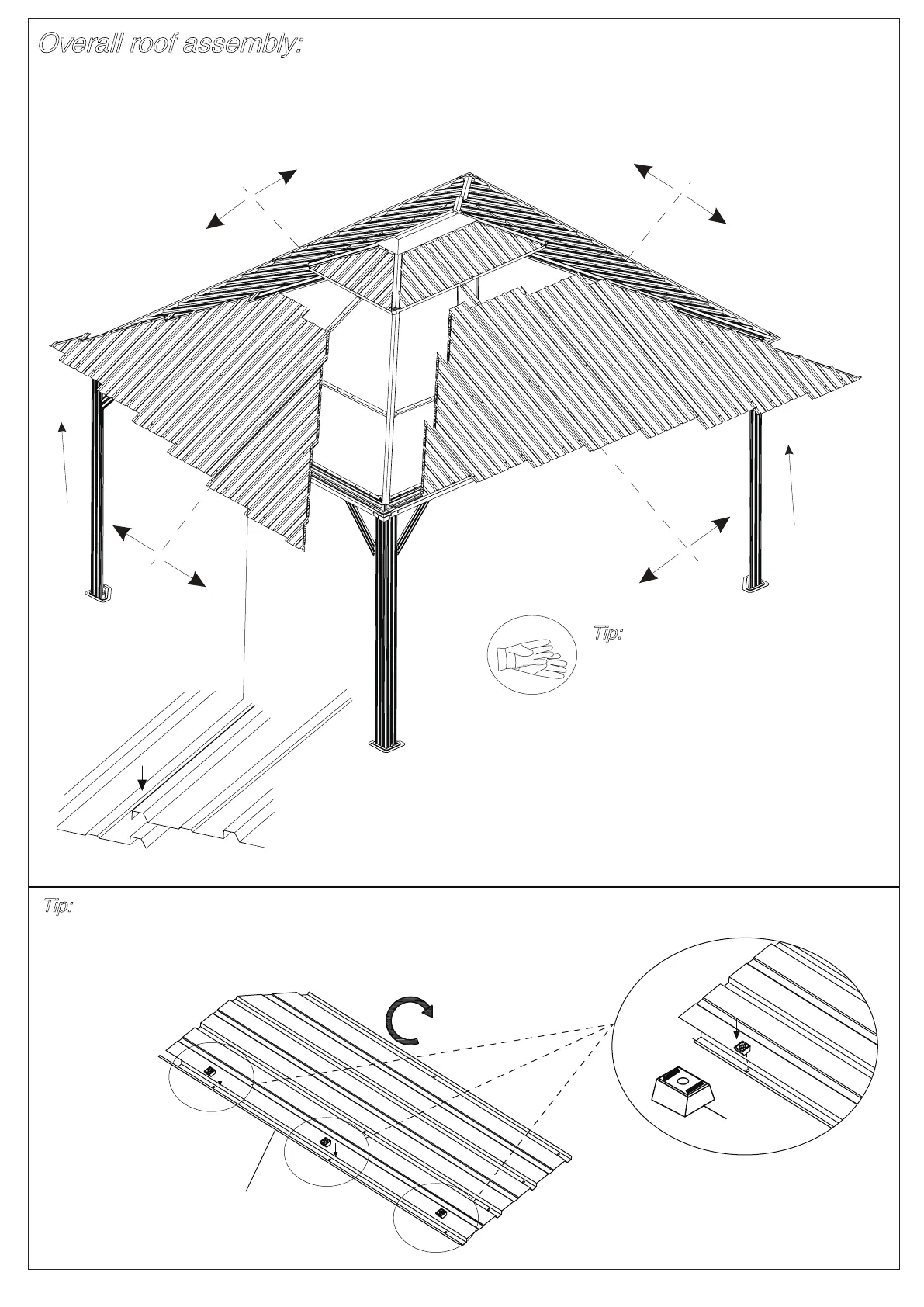

Overall roof assembly:
Connect roof
as below:
W11
W11
X41
X1
X42
X2
X43
X3
X44
X4
X45
X5
X46
X6
X47
X7
X48
X8
W12
W12
W13
W13
W14
W14
W15
W15
W16
W16
W17
W17
W18
W18
Wearing protective gloves is
recommended.
For fastening roof panels (Part W14 and Part X44) easily,
please glue Part S onto Panel W14 and Part X44 by adhesive tape in advance
to avoid Part S sliding down during assembly..
W14 or X44
Part S with
adhesive tape
X4
N1
N1
N1
N1
page 23
Please put the panels on the frame and assemble them from the centerline (Part N1)
to the left and right.
Tip:
Tip:
