Kozyard Apollo - Step 3: Connect Joint Bars and Tracks

B6
C6
B61
C61
C62
B62
E72
D72
D7
E7
D71 E71
page 712’x14’ assembly manual
Parts Required:
Tip:
Tip:
1. Connect Joint Bars (part C61,E71) and
Tracks (Part C62 ,E72) to Beams (Part C6 ,E7)
using #1 screws as shown in diagram.
2. Follow the same steps for Joint Bars
(Part B61,D71) and Tracks (Part B62,E72)
attaching them to Beams (Part B6 , D7)
using #1 screws as shown in diagram.
12 ft overall:
14 ft overall:

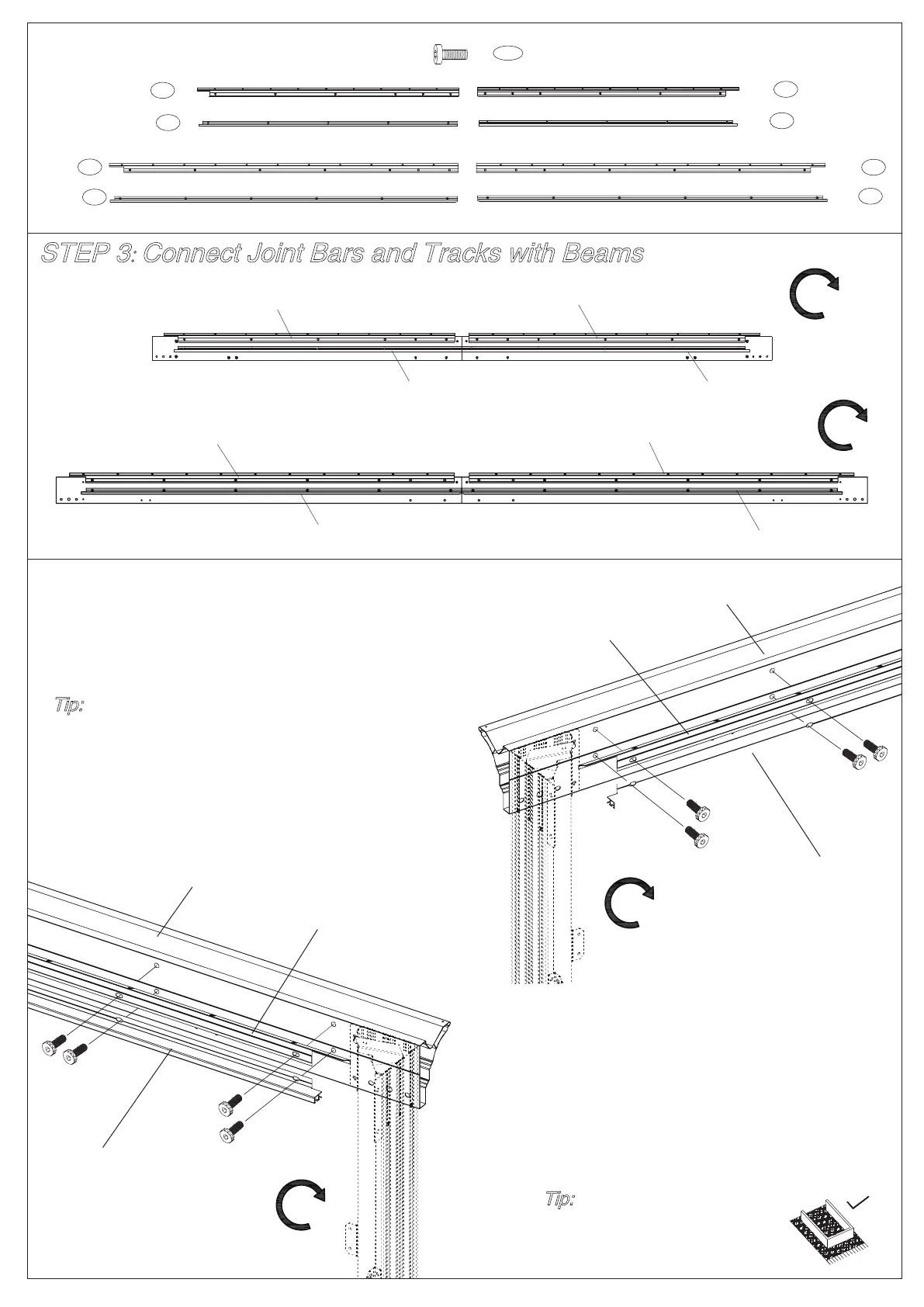

STEP 3: Connect Joint Bars and Tracks with Beams
Do not tighten screws on Jointer bar
(part C61,E71,B61,D71), until the screws
on roof
panels are aligned in place.
Place parts on carpet or rug to
avoid scratches during assembly.
X2
C6,E7
#1
#1
C62,E72
C61,E71
B6,D7
#1
#1
B62,E72
B61,D71
X2
#1
x96
C61 x2
C62 x2
B61 x2
D71 x2
D72 x2
B62 x2
E71 x2
E72 x2
X2
X2
