Kozyard Apollo - Step 2: Connect the Beams

12’X14’ assembly manual
#1
X24
D7 x2
C6 x2
B6 x2
E7 x2
F x4
D7
E7
E7
D7
F
#1
#1
#1
#1
X2

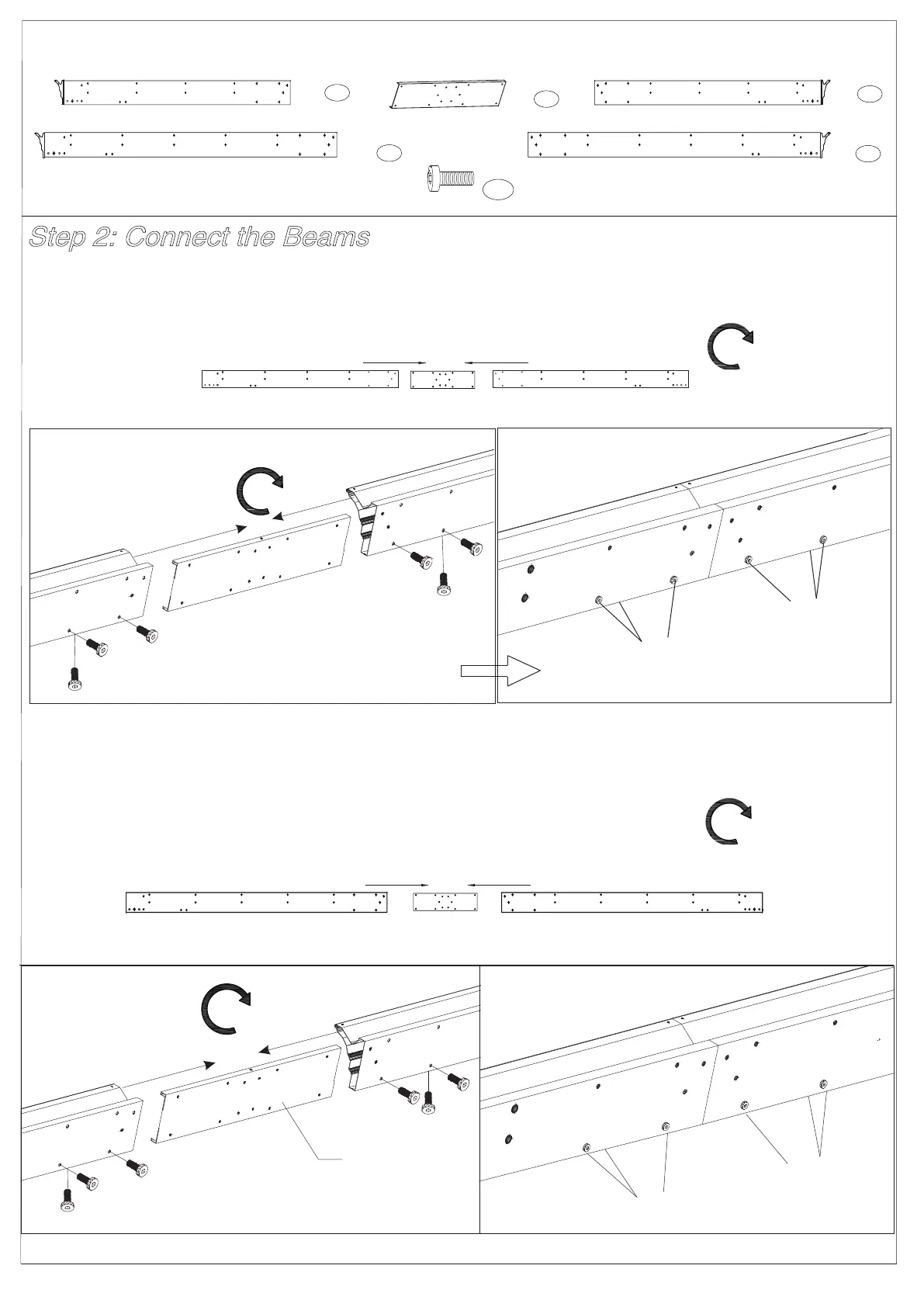

Short Beam Overall:
1. Connect Beams (Part C6, B6) into one beam using Union Bar (Part F) with
#1 screws as shown in diagram.
Long Beam Overall:
2. Connect Beams (Part E7, D7) into one beam using Union Bar (Part F) with
#1 screws as shown in diagram.
X2
B6
C6
F
X2
X2
F
#1
#1
#1
#1
C6
B6
C6
B6
D7
E7
F
page 6
Step 2: Connect the Beams
Parts Required:
