Kozyard Caesar - Roof Assembly and Installation

page 10Caesar 12’x14’ assembly manual
K4 x1
Tip:
Parts Required:
M6
M7=M1+M6
1#
x12
1#
12#
1#
12#
M1
M6 x4
M1 x4
M1
M6
12#
x12
X4
K4
M7
M7 M7
M7
P2
P2
Q4
Q4
Upward View
②
Upward View

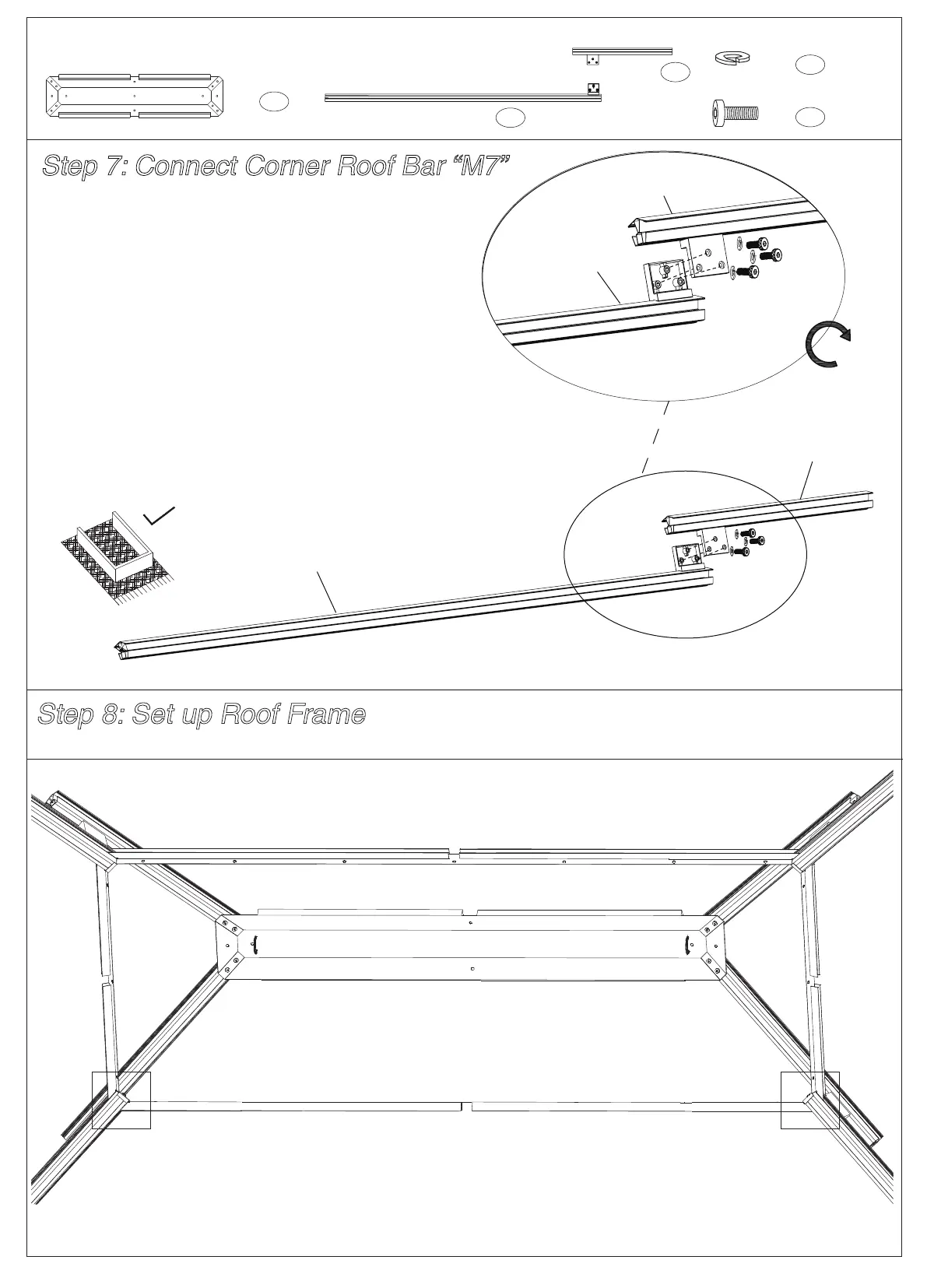

Step 7: Connect Corner Roof Bar “M7”
Connect the Short Corner Roof Bar (Part M1) with
Long Corner Roof Bar (Part M6) using screws 1# and
washer 12#.
Tip:
The combination will be called “Part M7” in following
steps.
Step 8: Set up Roof Frame
