page 19Caesar 12’x14’ assembly manual
Tips:
B24 , A45
Part S with
adhesive tape
X4
Connect roof as below：
Wearing protective gloves is
recommended.
Tip:
N6
N6
N6
N6
B21
B21
A41
A41
A42
A42
A43
A43
A44
A44
A45
A45
A46
A46
A47
A47
A48
A48
A49
A49
A50
A50
B22
B22
B23
B23
B24
B24
B25
B25
B26
B26
B27
B27
B28
B28
The back view of Part B24 , Part A 45

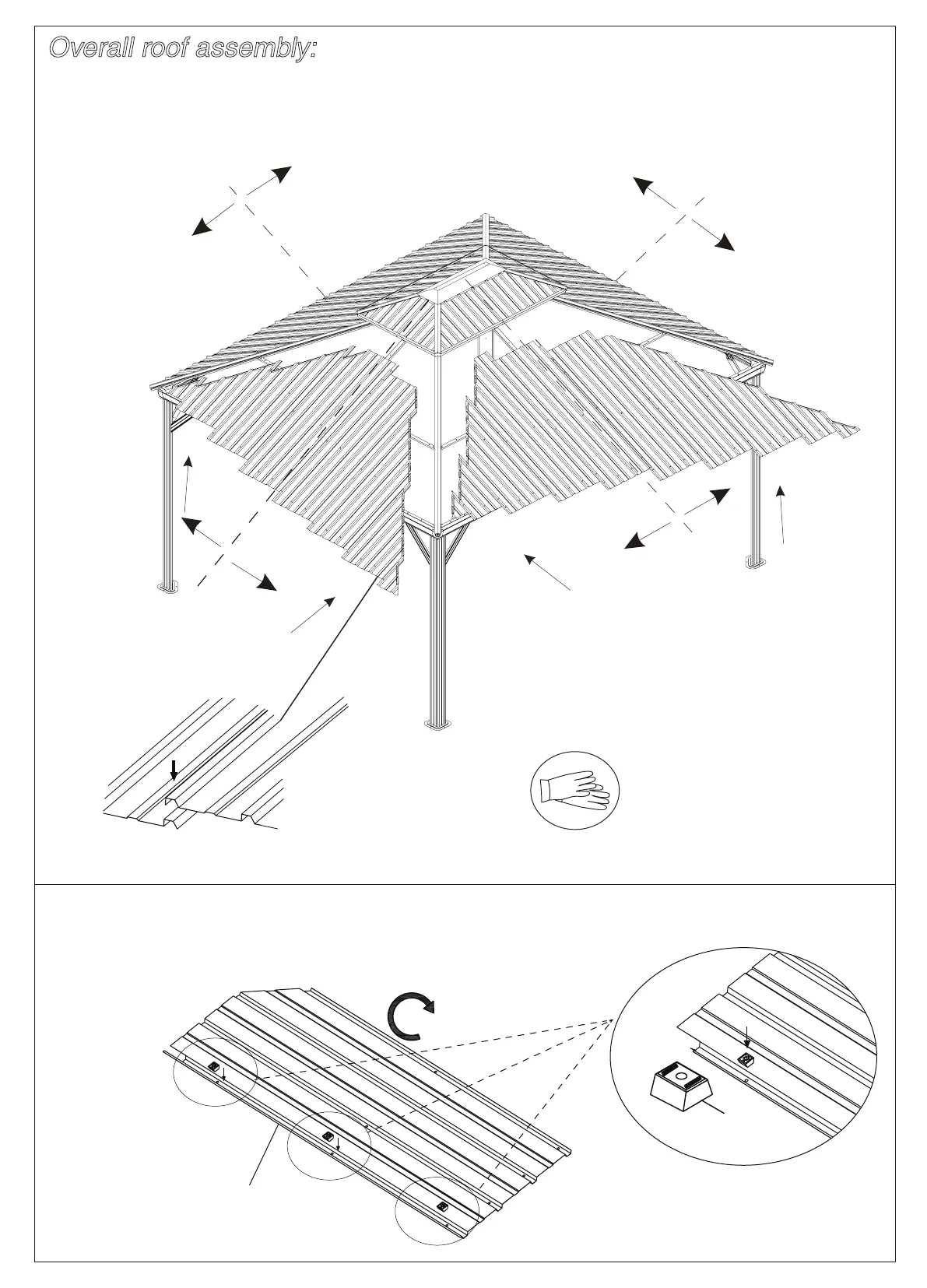

Overall roof assembly:
Please place the panels on the frame and assemble them from the centerline (Part N6)
to the left and right.
To facilitate the easy fastening of roof panels (Part B24, Part A45), please use double-sided
adhesive tape (Part H3) to affix Part S onto Panel (Part B24, Part A45) in advance. This will
prevent Part S from sliding down during assembly.
