Alexander 12’X14’ assembly manual
Parts Required:
A41
A42
A43 A44
A45
A46
A47 A48
A49 A50

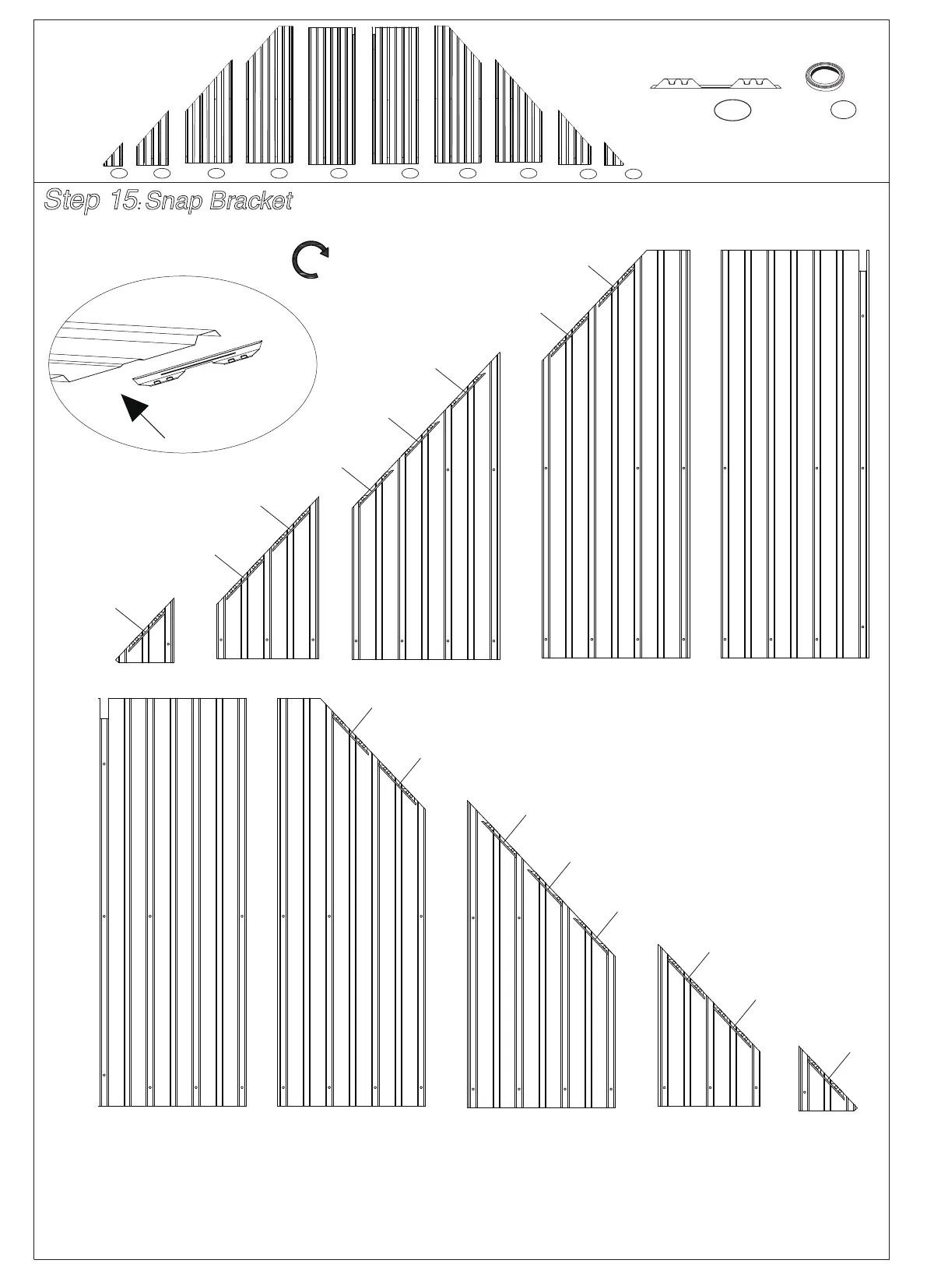

Step 15: Snap Bracket
A41 x2 A42 x2
A43 x2
A44 x2
A45 x2 A46 x2
A47 x2 A48 x2
A49 x2 A50 x2
X2
page 18
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
H3 x1
Z X32
Tips:
Snap bracket (Part Z) to roof panel edges as shown in diagram.
(with snaps facing upwards)
1. Wearing protective gloves is recommended.
2. To prevent Z-Clips (plastic brackets) from sliding off prior to assembly, apply double-sided adhesive tape
(Part H3) to the underside (bottom) edge of the roof panels where the brackets (Part Z) are supposed to
attach.
3. You can use super glue (not included) to attach the brackets to the roof panel if the double-sided tape
doesn't work for you.
