Caesar 12’x14’ assembly manual page 17
X2
x32
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Parts Required:

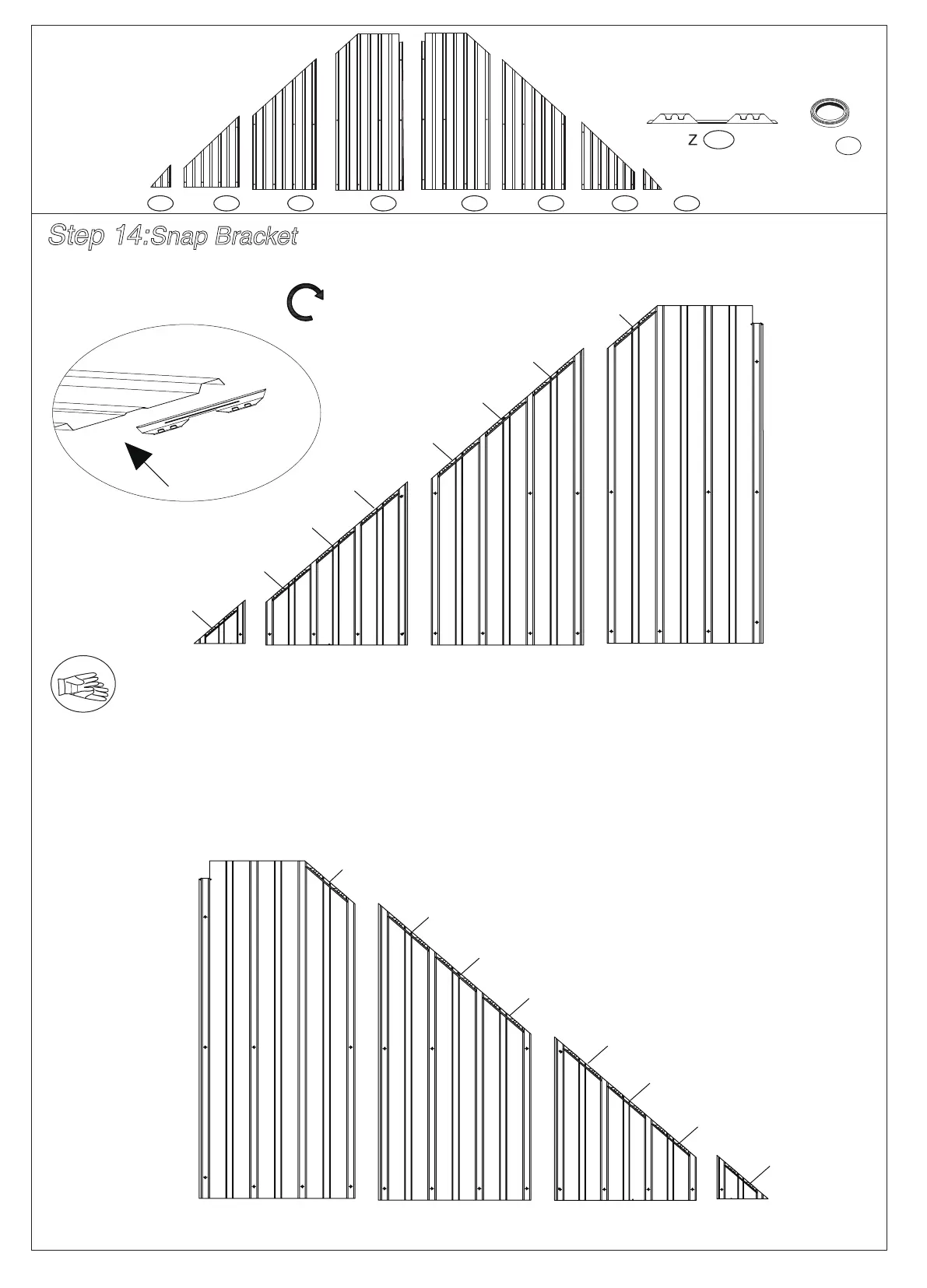

Step 14:Snap Bracket
B21 x2 B22 x2 B23 x2 B24 x2 B25 x2 B26 x2 B27 x2 B28 x2
B21 B22 B23 B24
B25 B26 B27 B28
Z
H3 x1
Tips:
Snap brackets (Part Z) to roof panel edges as shown in diagram.
(with snaps facing upwards)
1. Wearing protective gloves is recommended.
2. To prevent Z-Clips (plastic brackets) from sliding off prior to assembly, apply
double-sided adhesive tape (Part H3) to the underside (bottom) edge of the roof
panels where the brackets (Part Z) are supposed to attach.
3. You can use super glue (not included) to attach the brackets to the roof panel if
the double-sided tape doesn't work for you.
