page 16
Caesar 12’x14’ assembly manual
Parts Required:
U1
U1
U1
U1
U6
U6
U6
U6
①
①
①
②
②
1#
x24
U6 x4
U1 x4
U4 x4
U3 x4
U3
U4
1#
1#
X4
X4

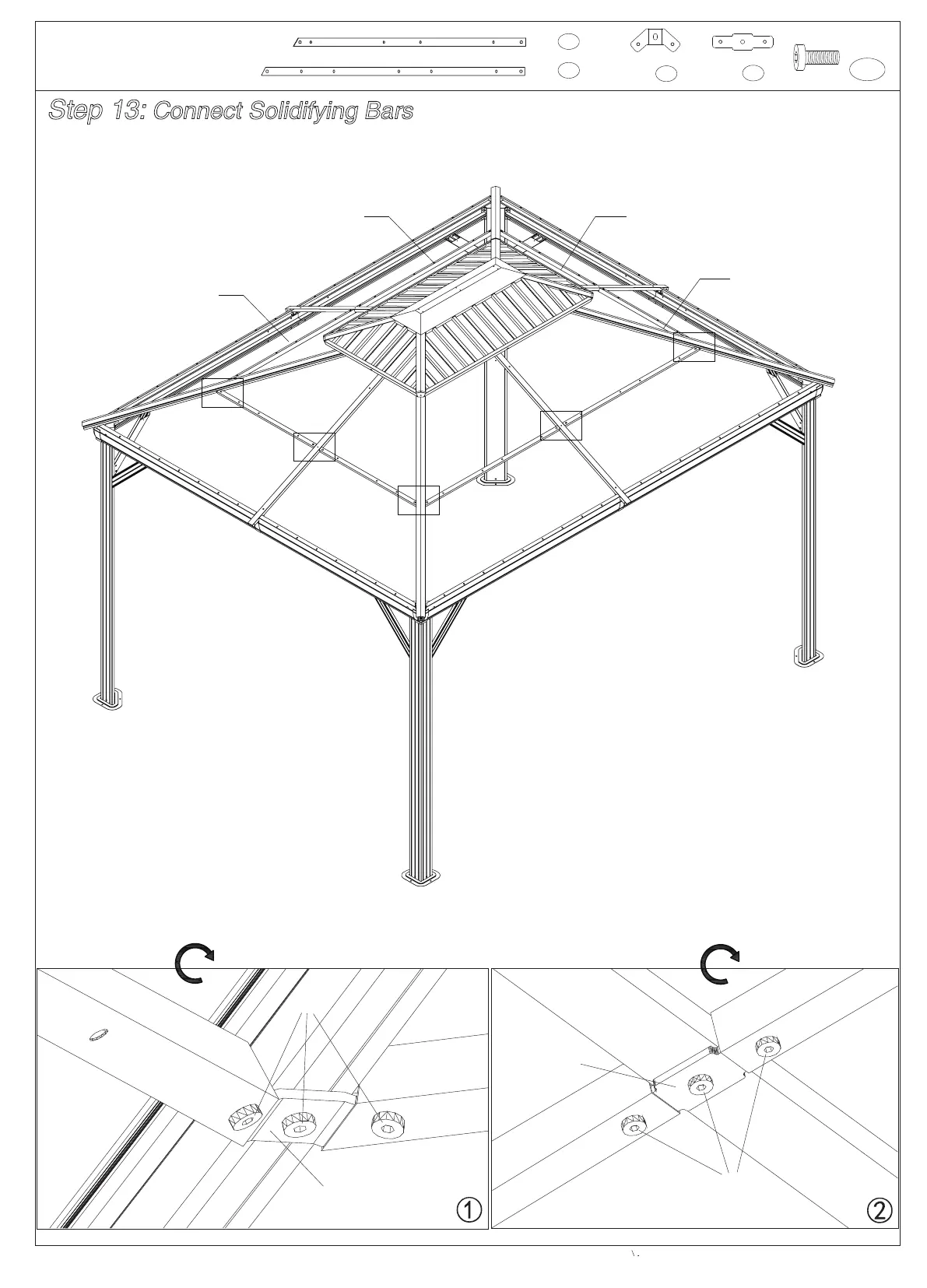

Step 13: Connect Solidifying Bars
Attach Solidifying Bars ( Part U1, U6) to roof bar or corner roof bar using Iron Angle (Part U3, U4)
and screws 1# as shown in the diagram.
Attention:
If the holes on the Solidifying Bar (Part U1,U6)
and the hole of the roof panel cannot be aligned,
please adjust or loosen screw 1# until the screws
of the roof panel are in place.
