page 15Caesar 12’x14’ assembly manual
Parts Required:
T2
T4
T2
T4
R
1#
1#
1#
V11
V12
T2
1#
V43
V44
V45
V46
T4
1#
R
1#
R
R
R
1#
x8
R x4
T4 x2
T2 x2
V
11
V
11
V
12
V
12
V
43
V
43
V
44
V
44
V45
V45
V46
V46

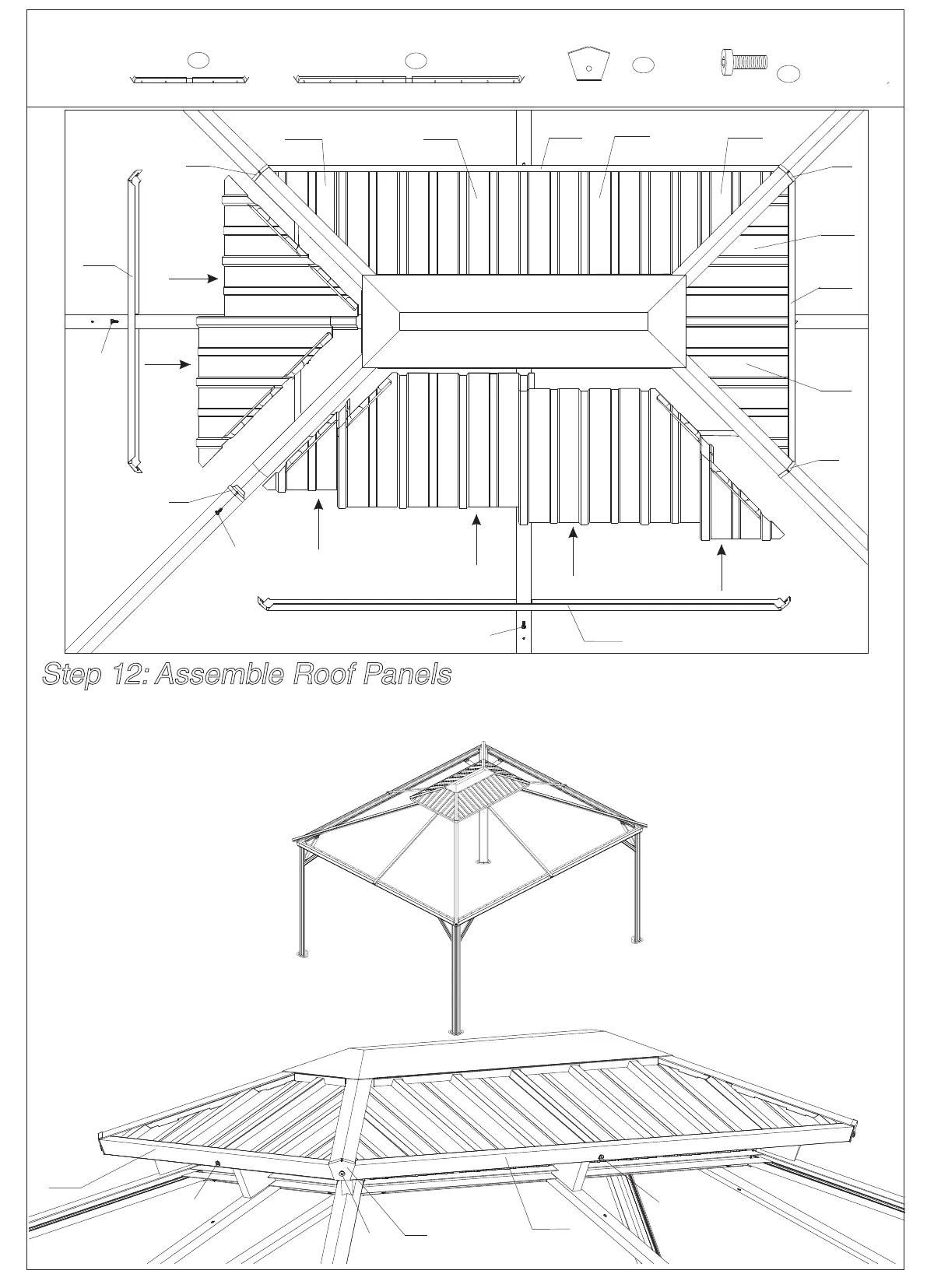

Step 12: Assemble Roof Panels
1. Push the Roof Panels (Part V11, V12, V43, V44, V45, V46) to upper roof as shown in the diagram.
2. Attach Finishing Bars (Part T2, T4) to upper roof with Finish End (Part R) using screws 1#
as shown in the diagram.
