page 14Caesar 12’x14’ assembly manual

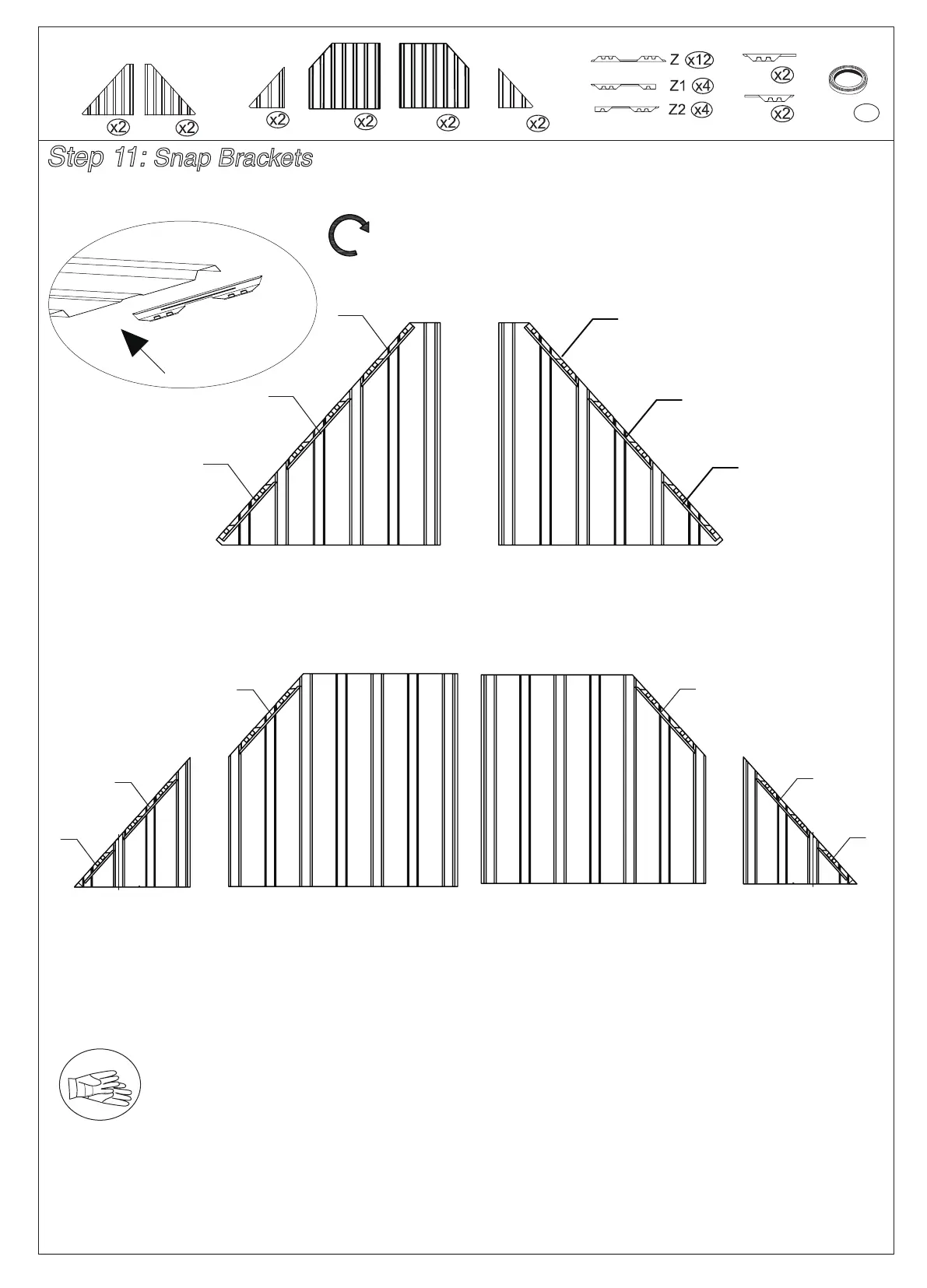

Snap brackets (Part Z,Z1,Z2,Z3,Z4) to roof panel edges as shown in the diagram.
(with snaps facing upwards)
V11
V12
V43
Z3
Z4
V44
V45
V46
X2
Parts Required:
V11
V43
Z4
Z
Z Z
Z
Z
Z
Z3
Z1
Z1
Z2
Z2
V44
V45
V46
V12
H3 x1
Step 11: Snap Brackets
Tips:
1. Wearing protective gloves is recommended.
2. To prevent Z-Clips (plastic brackets) from sliding off prior to assembly, apply
double-sided adhesive tape (Part H3) to the underside (bottom) edge of the roof
panels where the brackets (Part Z, Z1, Z2, Z3, Z4) are supposed to attach.
3. You can use super glue (not included) to attach the brackets to the roof panel if
the double-sided tape doesn't work for you.
