X2
X6
X4

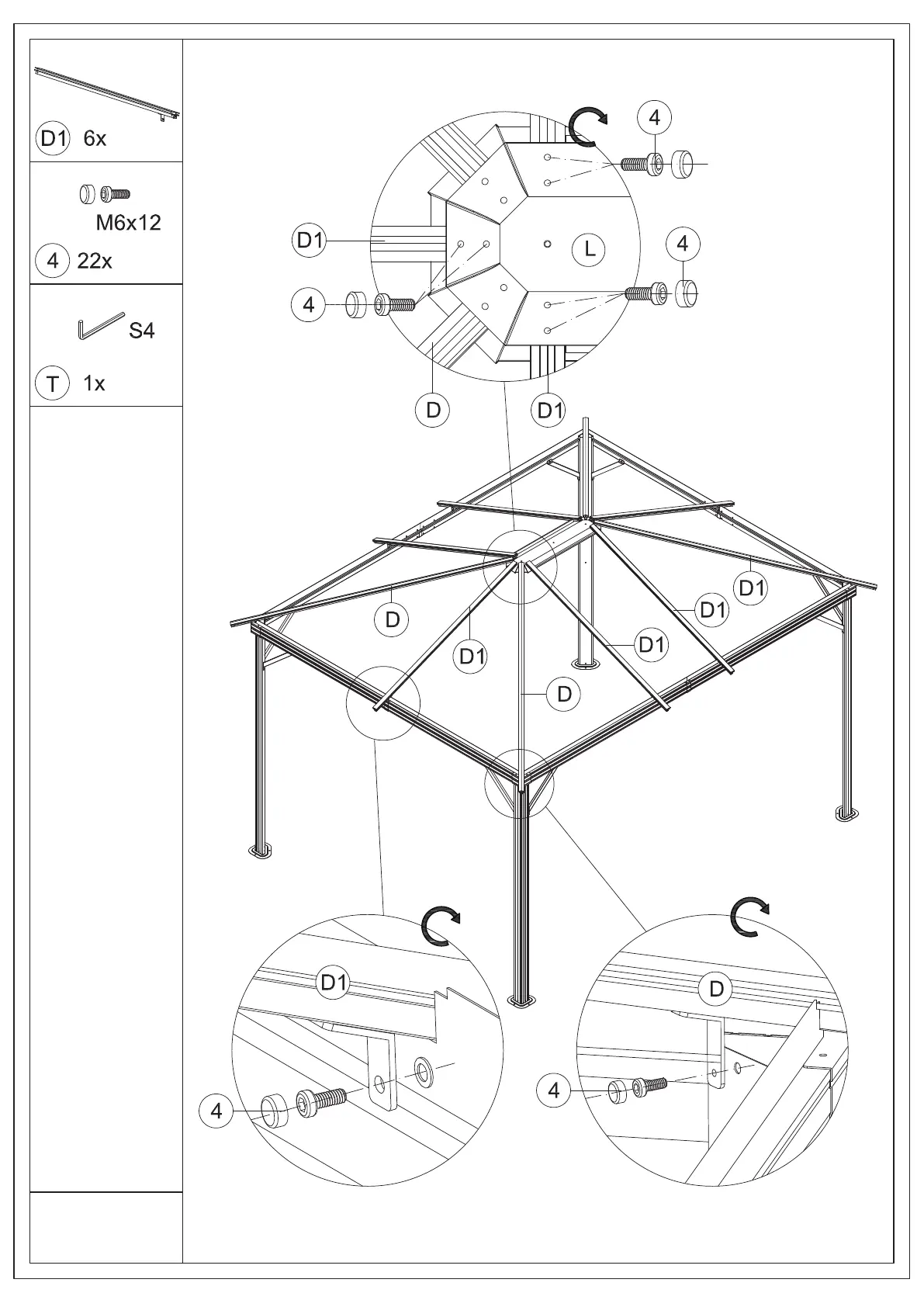

Step 7：
Attach roof bar (Part D1) to inside roof connector(Part L) using screws ④
as shown in diagram.
Attach roof bar
(Part D1&D) to main
frame using screws ④
as shown in diagram.
