-8-
6. Measuring methods
BEFORE PROCEEDING MEASUREMENT, READ
SAFETY NOTES ON PAGE 1.
WARNING
In proceeding with measurement, if " " symbol
appears on the display, replace with new batteries.
(1) Earth voltage check
a. Test leads connection
b. Turn the function switch to the "EARTH
VOLTAGE" position, then press the TEST
button to test.

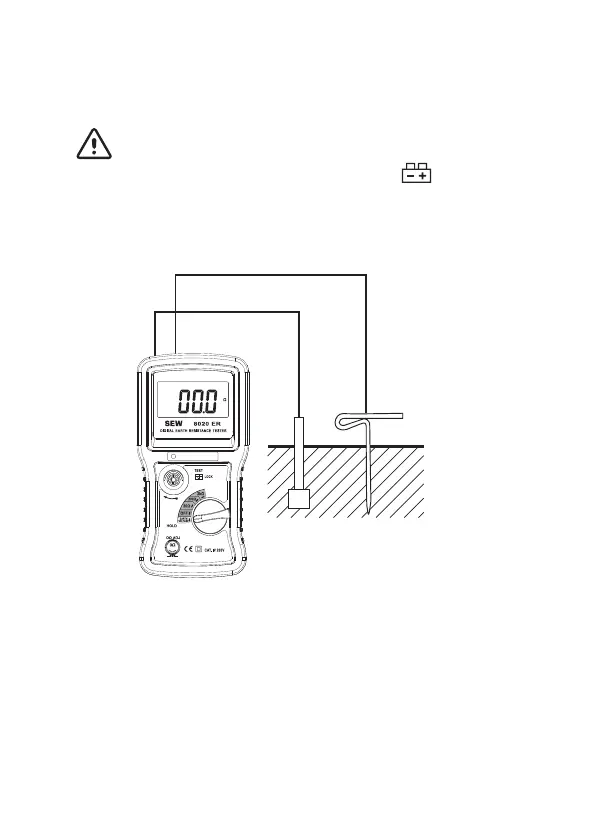

Fig. 1
Green
Earth
Electrode
under test
Auxiliary
Earth
Spikes
P
E
Yellow
