101L - Overview
3 Overview
The high performance 101L Video Line Amplifier is used for amplifying the video signal
intensity and improving the image sharpness (the picture quality) when a video signal is
transmitted over a long cable.
In particular, the 101L features:
 Extra-wide bandwidth of 500MHz
 Gain and equalization trimmer controls to compensate for signal losses
inherent in long cable runs, recessed to prevent tampering
3.1 Defining the 101L Video Line Amplifier
This section defines the 101L.

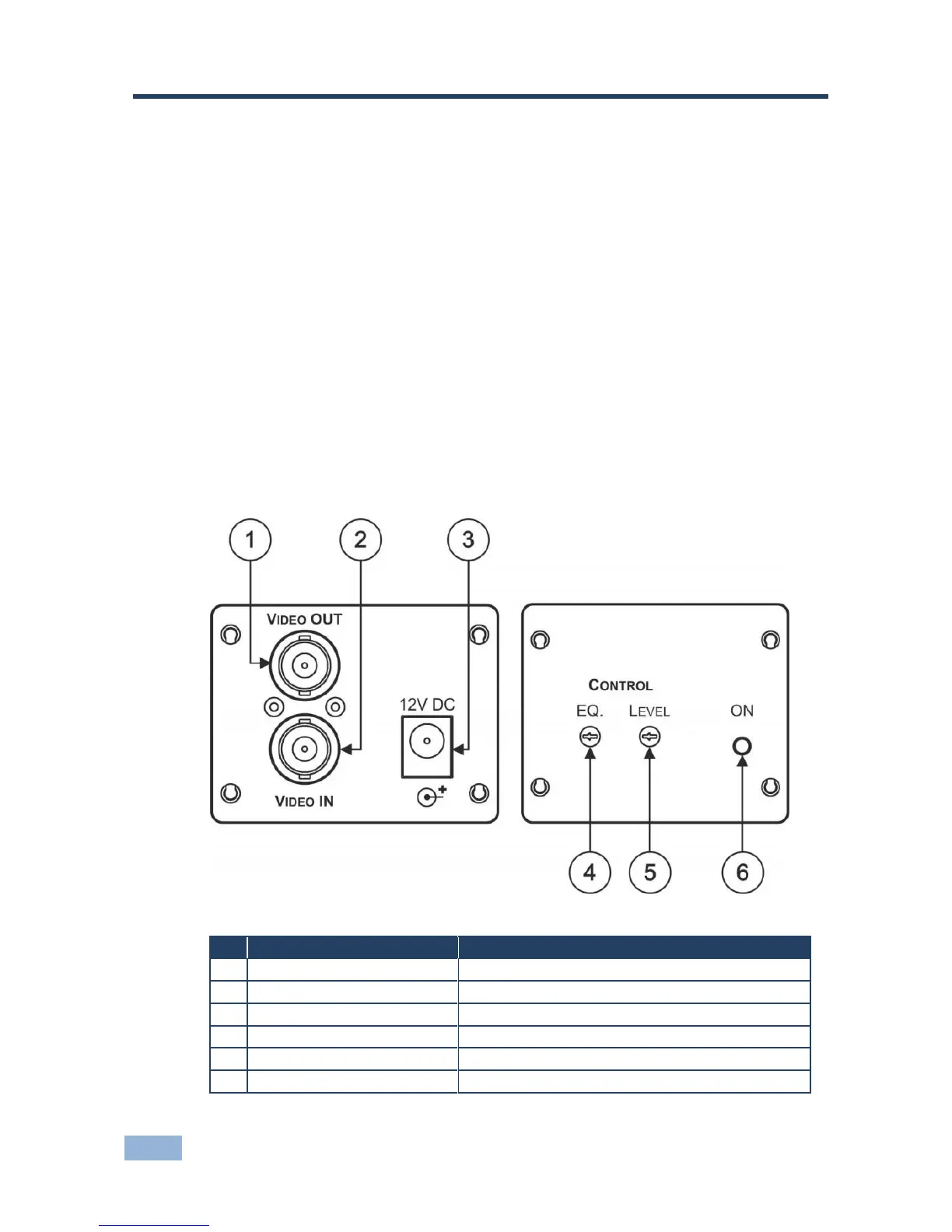

Figure 1: 101L Video Line Amplifier
#
Feature
Function
1
VIDEO OUT BNC Connector
Connects to a video acceptor
2
VIDEO IN BNC Connector
Connects to the video source
3
12V DC
+12V DC connector for powering the unit
4
CONTROL EQ. Trimmer
Adjusts the cable compensation equalization level
5
CONTROL LEVEL Trimmer
Adjusts the output signal level
6
ON LED
Illuminates when receiving power
