Always switch off the power to each device before connecting it to your
101L. After connecting your 101L, connect its power and then switch
on the power to each device.
To connect the 101L, as illustrated in the example in Figure 2, do the following:
1. Connect the video source (for example, a composite video camera) to the
VIDEO IN BNC connector.
It is recommended that you connect the 101L closer to the source than to the acceptor.
2. Connect the VIDEO OUT BNC connector to a video acceptor (for example, a
composite display).
3. Connect the 12V DC power adapter to the power socket on the 101L, and
connect the adapter to the mains electricity.
The ON LED illuminates.
4. If required, adjust the output signal level (LEVEL) and/or cable
compensation equalization level (EQ.) with a small screwdriver.

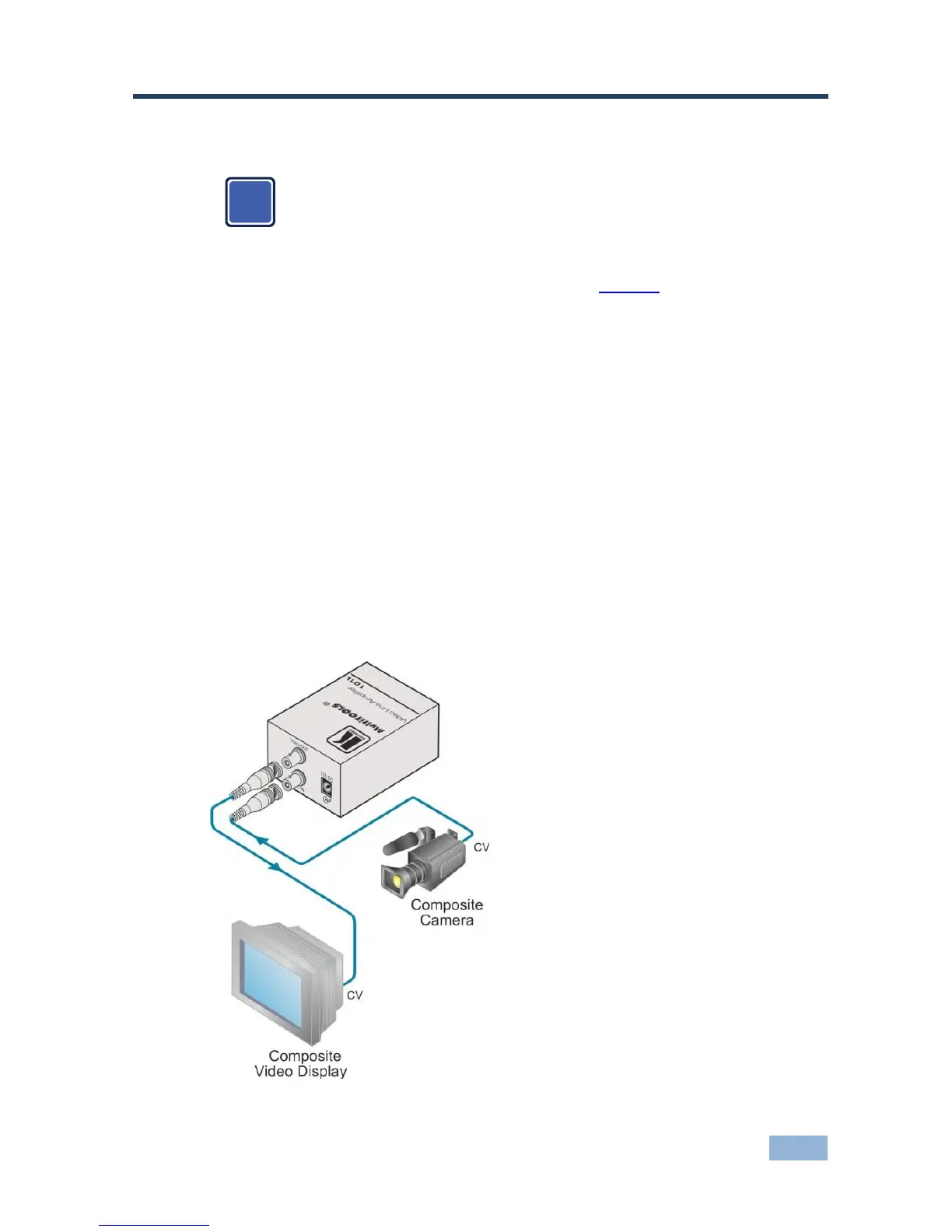

Figure 2: Connecting the 101L Video Line Amplifier
