Kramer 611R

KRAMER ELECTRONICS LTD  6
Front/rear panel features of the 611R are described in Figure 2 and Table 2.


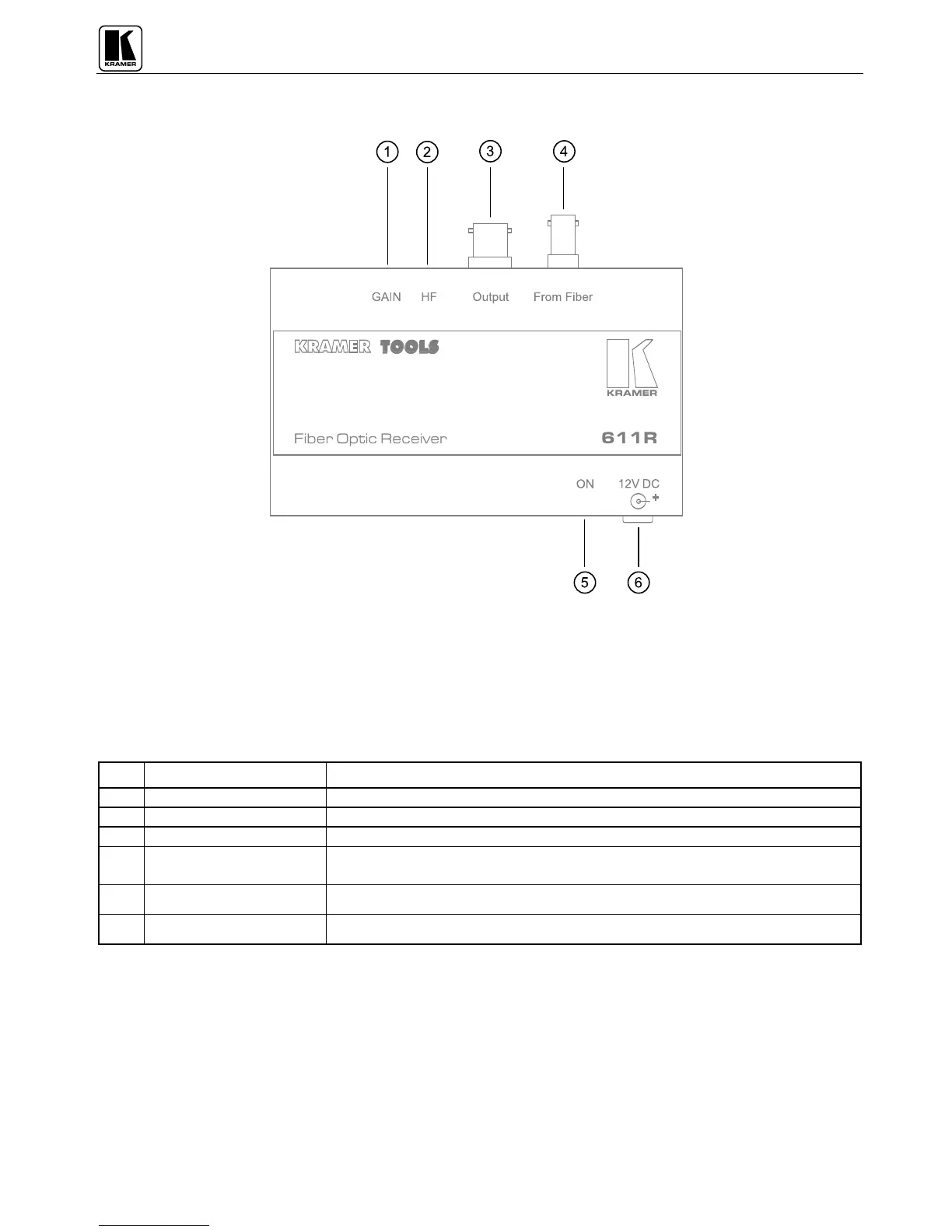

Figure 2: 611R Front/Rear Panel Features
Table 2: 611R Front/Rear Panel Features

No.
Feature
Function
1 GAIN
Video level control trimmer
2 HF
Cable compensation (High Frequency) control trimmer
3 OUTPUT
Video output connector on a BNC
4 FROM FIBER
“ST” type connector inputting the converted video signal from the optical fiber
to the 611R
5 ON
Power ON indication LED
6 12V DC
12 Volts DC feed to the machine
6 INSTALLATION
6.1 Rack Mounting
The 611T and 611R come with mounting brackets for tabletop mounting. The machines may be rack-mounted
in a standard 19” (1U) EIA rack assembly using an optional rack adapter.
