4.2 Your 611R Fiber Optic Receiver
Figure 2 and Table 2 define the unit.

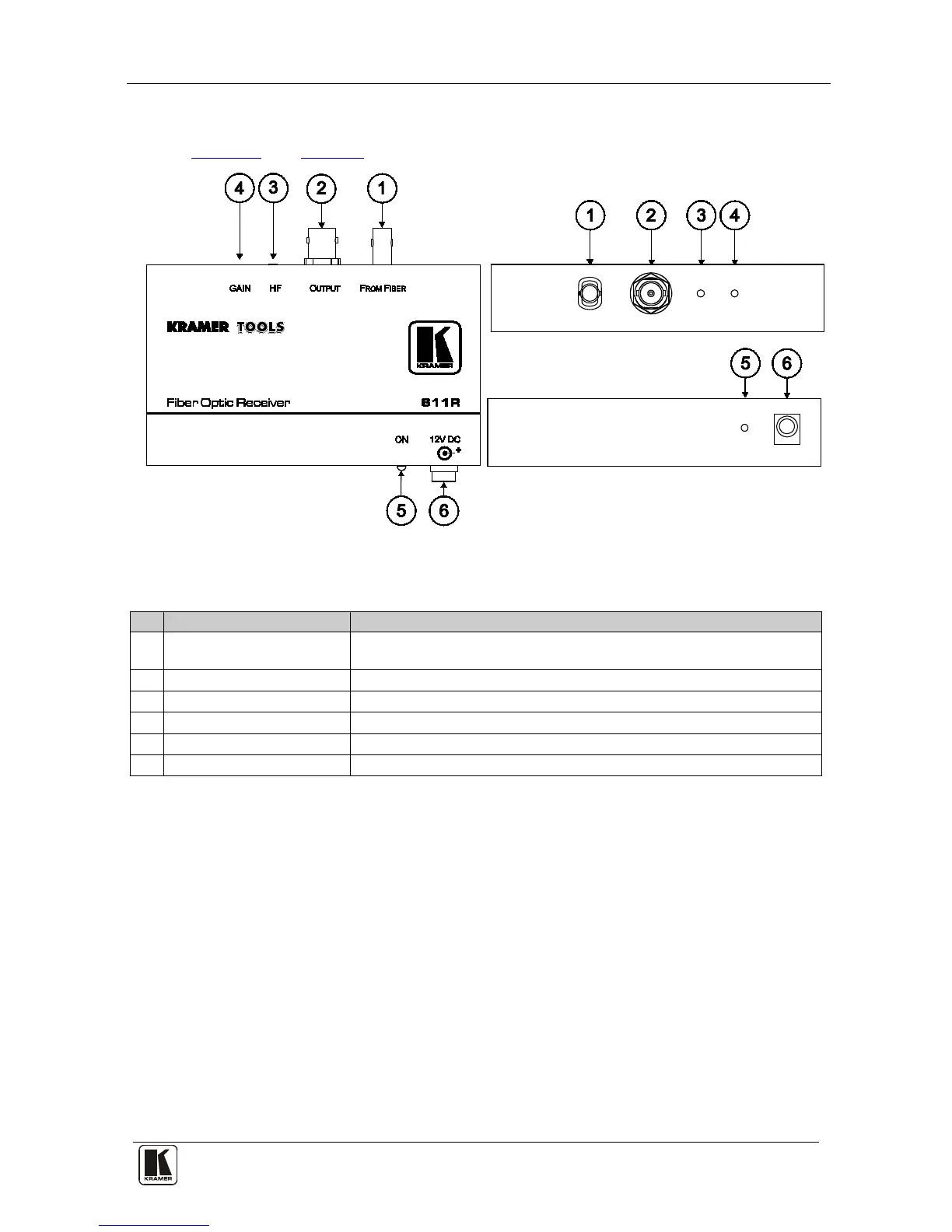

Figure 2: 611R Fiber Optic Receiver Functions
Table 2: 611R Fiber Optic Receiver Functions
1 FROM FIBER Connector “ST” type connector inputting the converted video signal from the
optical fiber to the 611R
2 OUTPUT BNC Connector Connects to a composite video acceptor
3 HF Trimmer Cable compensation (high frequency) control trimmer
4 GAIN Trimmer Video level control trimmer
5 ON LED Illuminates when the unit is powered ON
6 12V DC Power Connector Connects to the power supply to supply power to the unit
