Kramer Galil 6-C

12
Galil 6-C - Installing the Galil 6-C Closed-back Ceiling Speakers

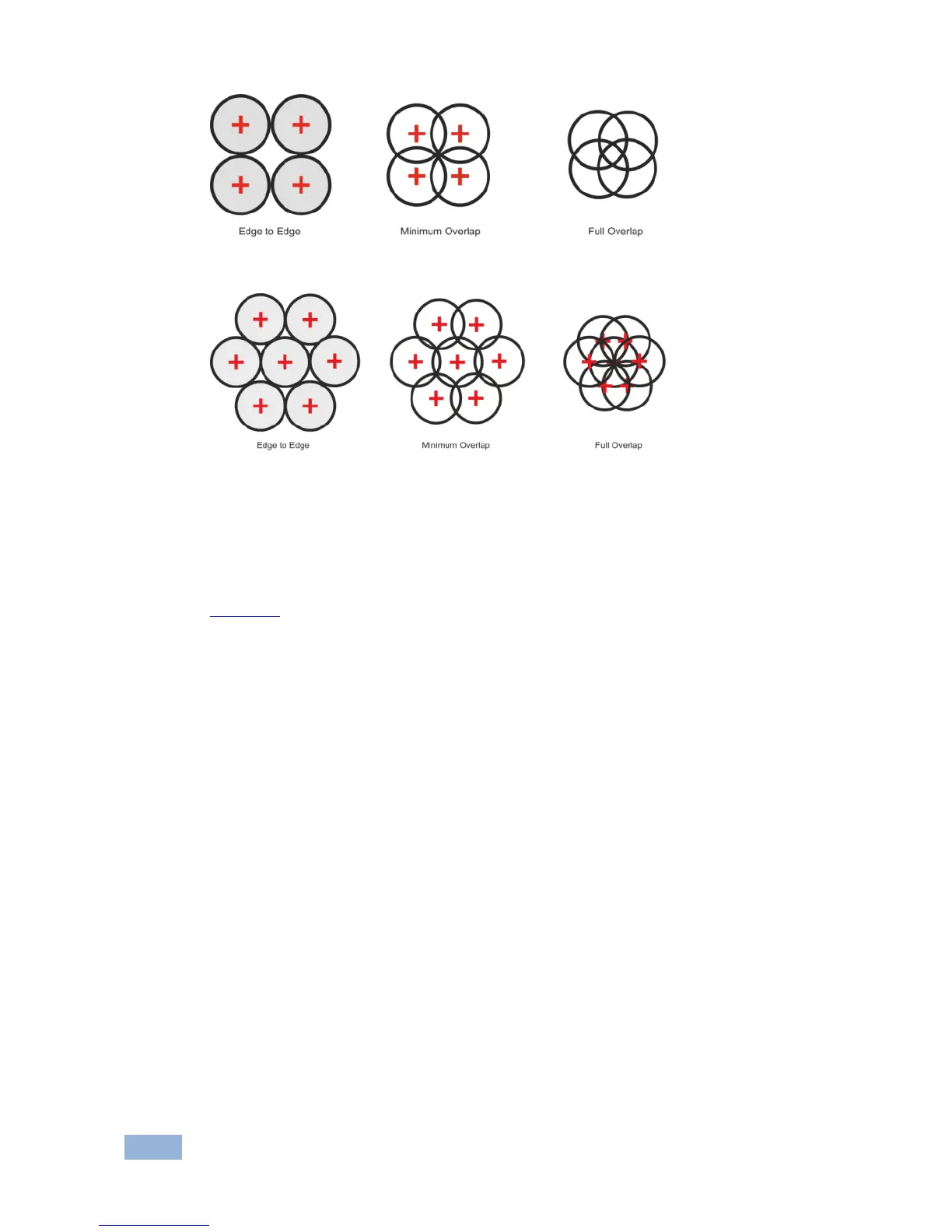

Figure 8: Square Layout
Figure 9: Hexagonal Layout
You can set the power on each speaker to get the desired power level in different
installation areas.
Figure 10 shows an example of parallel wiring in a square array installation:
