PSE-4 - Connecting the PSE-4
7
4. Connect the supplied power adapter to the PSE-4 and plug the power
adapter into the mains supply.
The PSE-4 provides power to the WP-5VH2 HDBT transmitters.
Note: The PSE-4 can provide power via the LAN+POE ports to either an HDBT
transmitter or receiver. Figure 3 illustrates this by showing the PSE-4 providing
power to transmitters. The PSE-4 can also provide power to receivers as shown in
Figure 4.

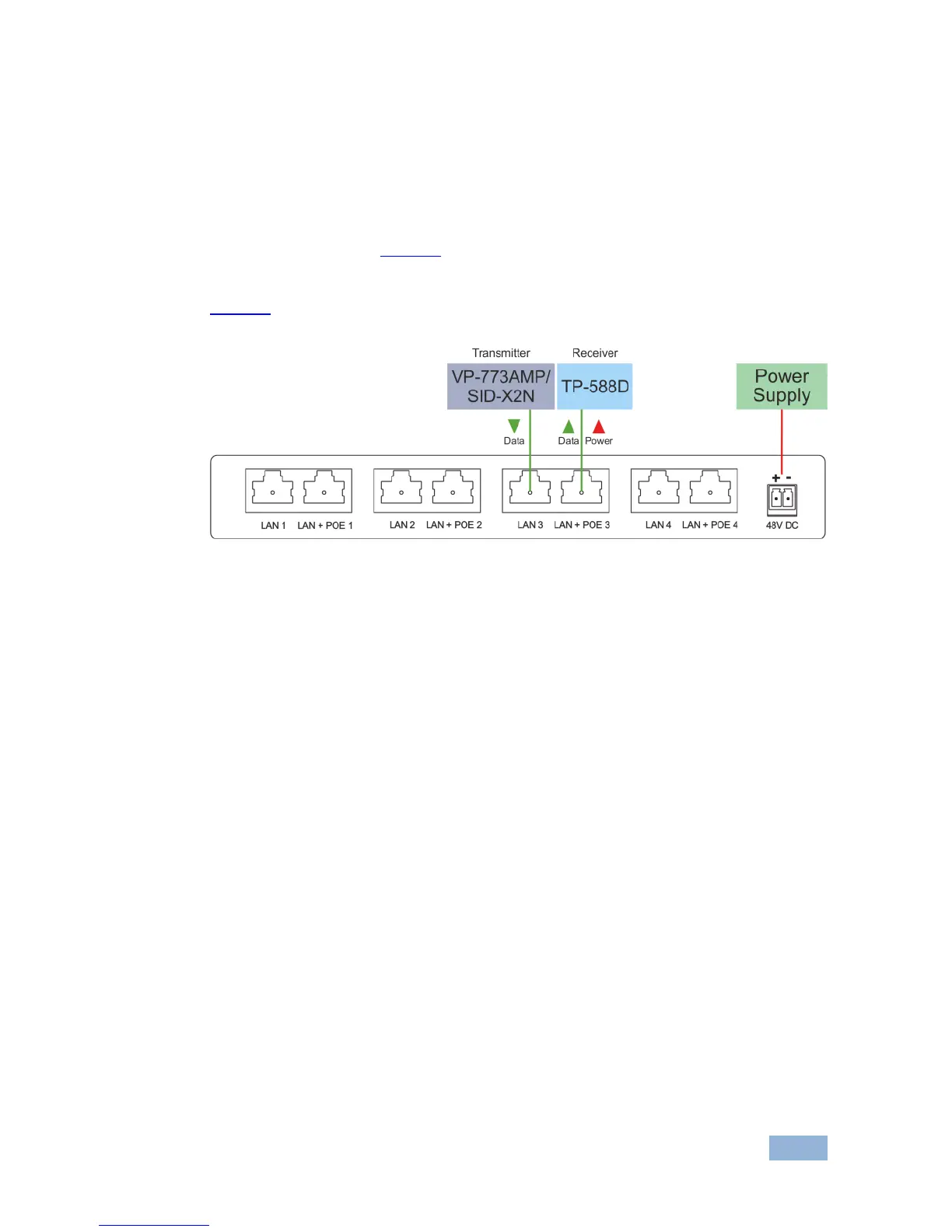

Figure 4: The PSE-4 Supplying Power to Receivers
