PSE-4 - Connecting the PSE-4
5 Connecting the PSE-4
Always turn off the power to each device before connecting it to your
PSE-4. After connecting your PSE-4, connect its power and then turn
on the power to each device.

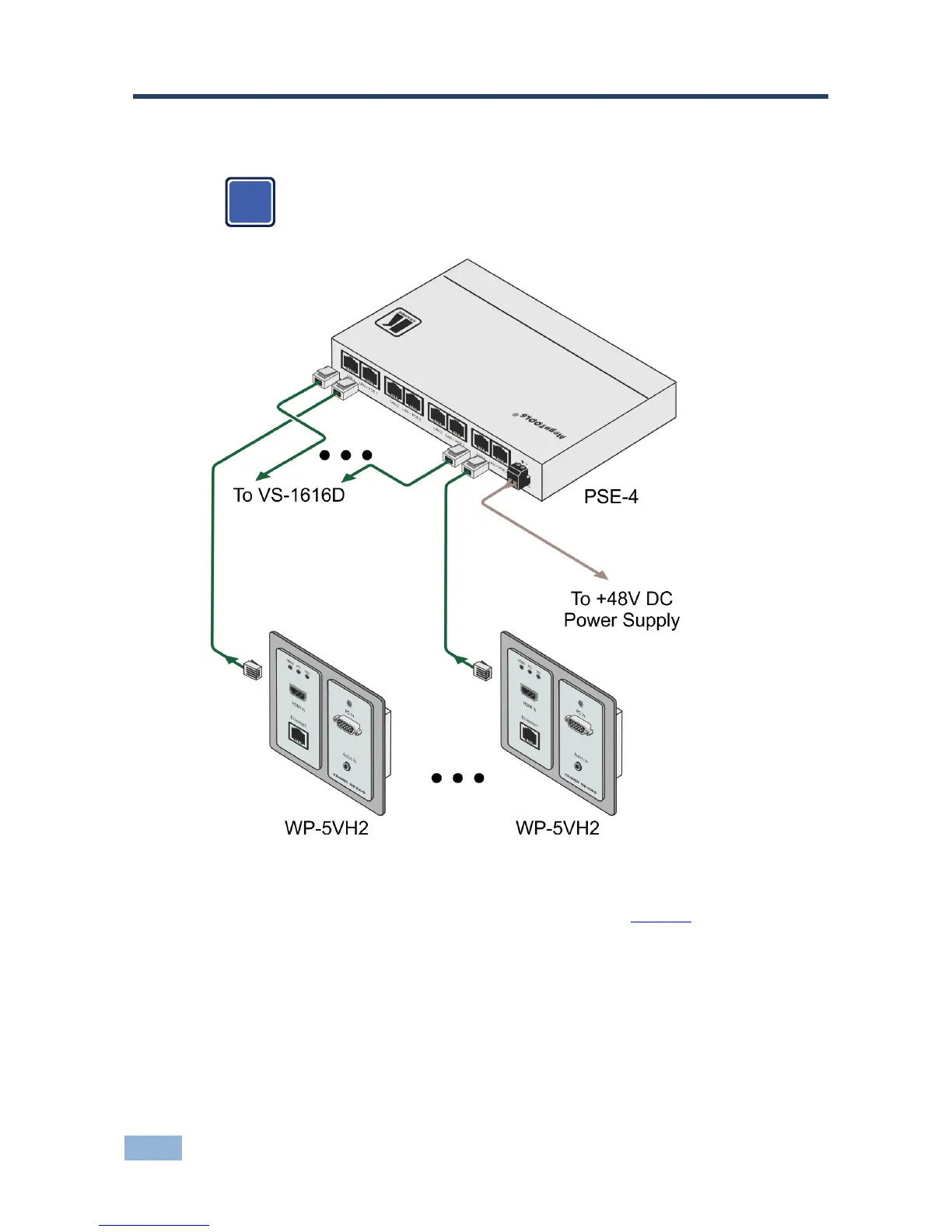

Figure 3: Connecting the PSE-4 10G Quad POE Injector
To connect the PSE-4 as illustrated in the example in Figure 3:
1. Connect the first HDBT transmitter, (for example, the WP-5VH2) to the
LAN + POE 1 RJ-45 connector on the rear panel of the PSE-4.
2. Connect the LAN 1 RJ-45 connector on the rear panel of the PSE-4 to the
HDBT receiver, (for example, the VS-1616D).
3. Repeat steps 1 and 2 for an additional three devices.
