Kramer SL-12 User Manual

SL-12 - Connecting the SL-12
11

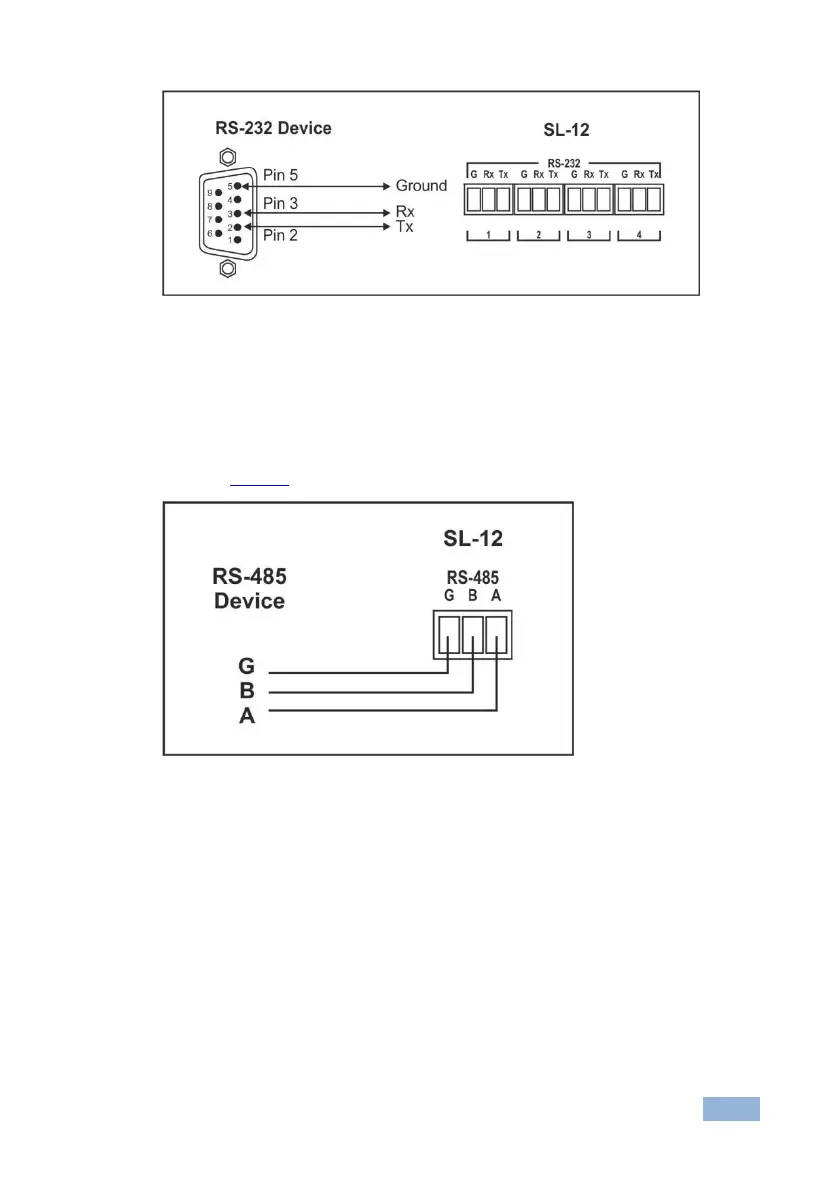

Figure 4: RS-232 Connection
4.4 Connecting the RS-485 Interface
To connect an AV device to the SL-12 using the RS-485 port, connect the RS-485
port on your device to the RS-485 terminal block on the rear panel of the SL-12 as
shown in Figure 5:
Figure 5: RS-485 Connection
4.5 Connecting the Ethernet Port
The Ethernet connection of the SL-12 allows you to perform all control functions of
the SL-12 over the Internet using a PC running the Kramer Site-CTRL control
program.
To connect the SL-12 to a network:
1. Connect the Ethernet port of the SL-12 to the Ethernet port on a network
hub or network router, via a straight cable with RJ-45 connectors.

Kramer SL-12 Specifications

General

Brand	Kramer
Model	SL-12
Category	Controller
Language	English
