Connecting the TP-50 XGA / Audio Line Receiver – DA
8
6. On the TP-50 underside:
 Adjust
1
the video output signal level and/or cable compensation
equalization level, if required
 If necessary, set the HS and VS switches
2
, on the underside

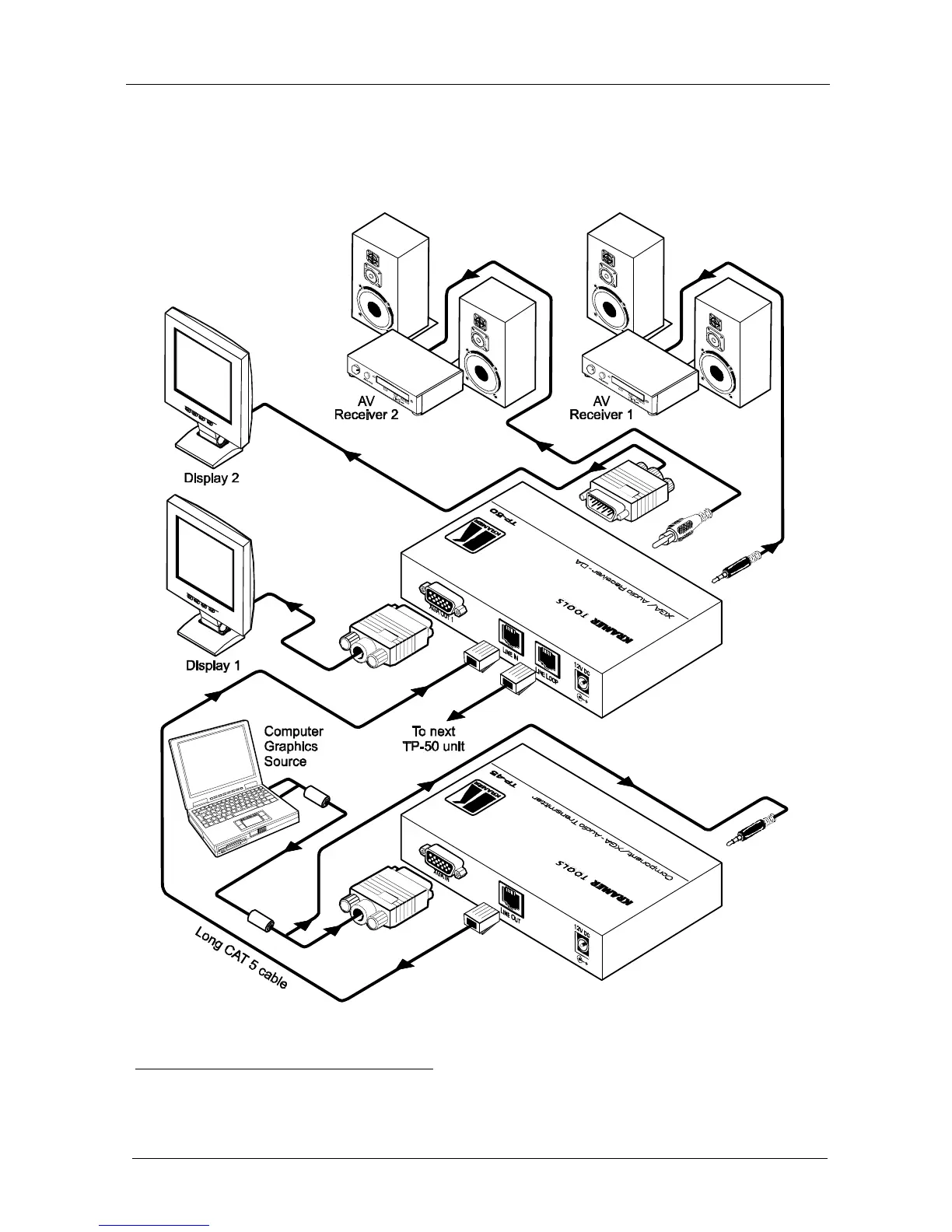

Figure 3: Component/XGA – Audio Distribution System, XGA Mode
1 Use a screwdriver to carefully rotate the trimmer, adjusting the appropriate level
2 By default, both switches are set down (for normal V SYNC and H SYNC polarity)
