Kramer TP-590T User Manual

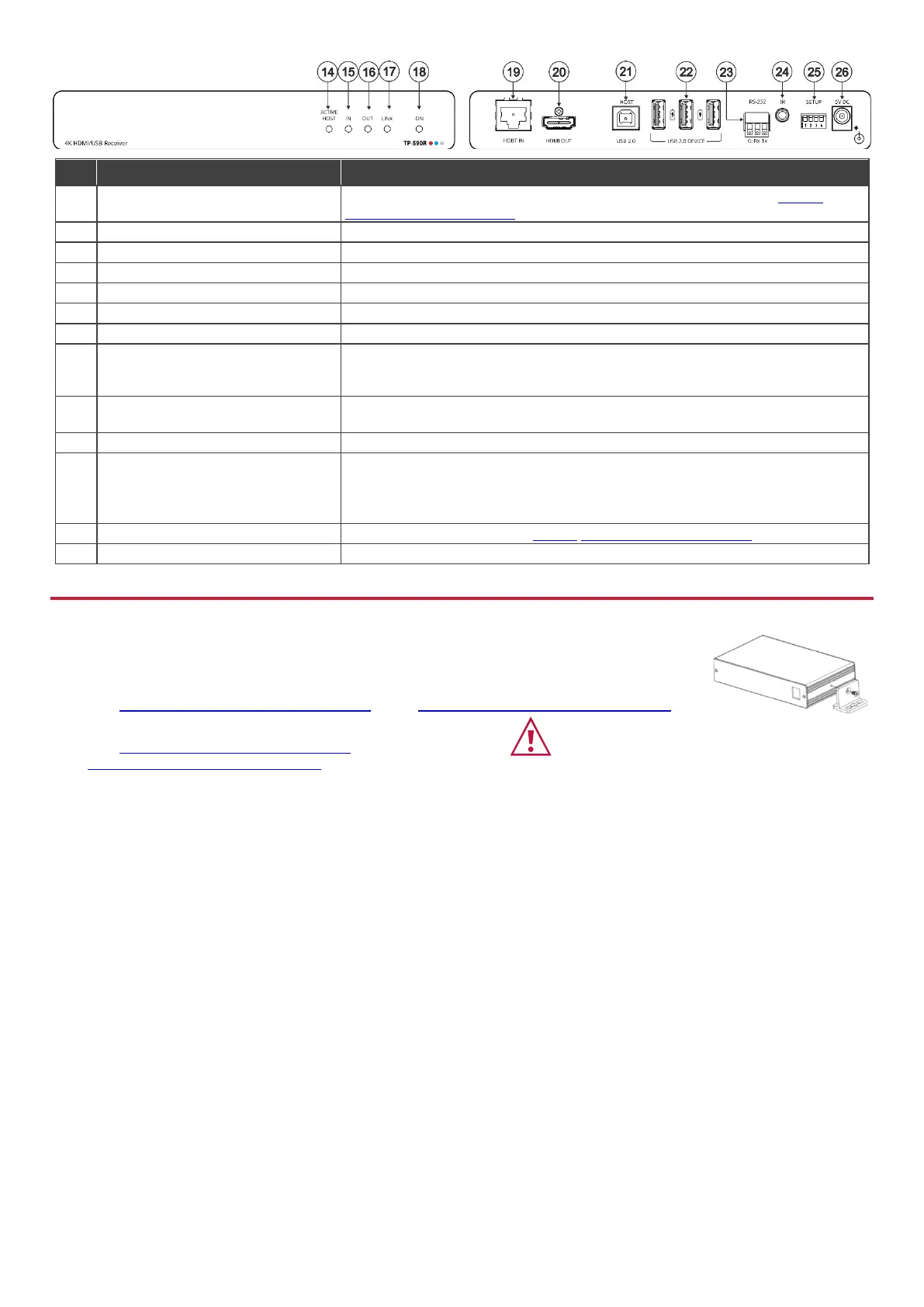

TP-590R
#
Feature
Function
14
ACTIVE HOST LED
Lights orange when the device is enabled as an active USB host (see Step 4:
Connect inputs and outputs).
15
IN LED
Lights blue when an active HDMI input signal device is detected on HDBT IN.
16
OUT LED
Lights blue when an output device is connected to the HDMI OUT.
17
LINK LED
Lights green when the HDBT active link connection is established.
18
ON LED
Lights green when the device receives power.
19
HDBT IN RJ-45 Connector
Connect to the HDBT OUT RJ-45 connector on the HDBT transmitter.
20
HDMI OUT Connector
Connect to the HDMI acceptor.
21
HOST USB 2.0 Connector
Connect to the USB host (for example, a room PC) to communicate with the USB
peripheral devices (for example, a room camera) connected to USB device ports on
either the transmitter or the receiver.
22
USB 2.0 Charging Connectors (3)
Connect to the USB local peripheral devices (for example, USB camera, a
soundbar, speakers and so on).
23
RS-232 3-pin Terminal Block
Connect to a serial device to be controlled.
24
IR 3.5mm Mini Jack Connector
Connect to an external IR emitter to control a local IR-controlled device from the
transmitter side (for example, TP-590T).
Connect to an IR sensor to control a remote IR-controlled device connected to the
transmitter side (for example, TP-590T).
25
SETUP 4-way DIP-switch
Sets the device behavior (see Step 4: Connect inputs and outputs).
26
5V DC Power Connector
Connect to the power supply.
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Step 3: Mount TP-590T and TP-590R
Install TP-590T and TP-590R using one of the following methods:
• Attach the rubber feet and place the unit on a flat surface.
• Fasten a bracket (included) on each side of the unit and attach it to a flat surface
(see www.kramerav.com/downloads/TP-590T and/or www.kramerav.com/downloads/TP-590R).
• Mount the unit in a rack using the recommended rack adapter
(see www.kramerav.com/product/TP-590T and/or
www.kramerav.com/product/TP-590R).
• Ensure that the environment (e.g., maximum ambient temperature &
air flow) is compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be
used for avoiding overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.
• Maximum mounting height for the device is 2 meters.
