Kramer VM-2HDT Quick Start Guide

Step 3: Install VM-2HDT, VM-3HDT
Install VM-2HDT, VM-3HDT using one of the following methods:
• Attach the rubber feet and place the unit on a flat surface.
• Fasten a bracket (included) on each side of the unit and attach it to a flat surface.
For more information go to
www.kramerav.com/downloads/VM-2HDT, VM-3HDT.
• Mount the unit in a rack using the recommended rack adapter
(see www.kramerav.com/product/VM-2HDT, VM-3HDT).

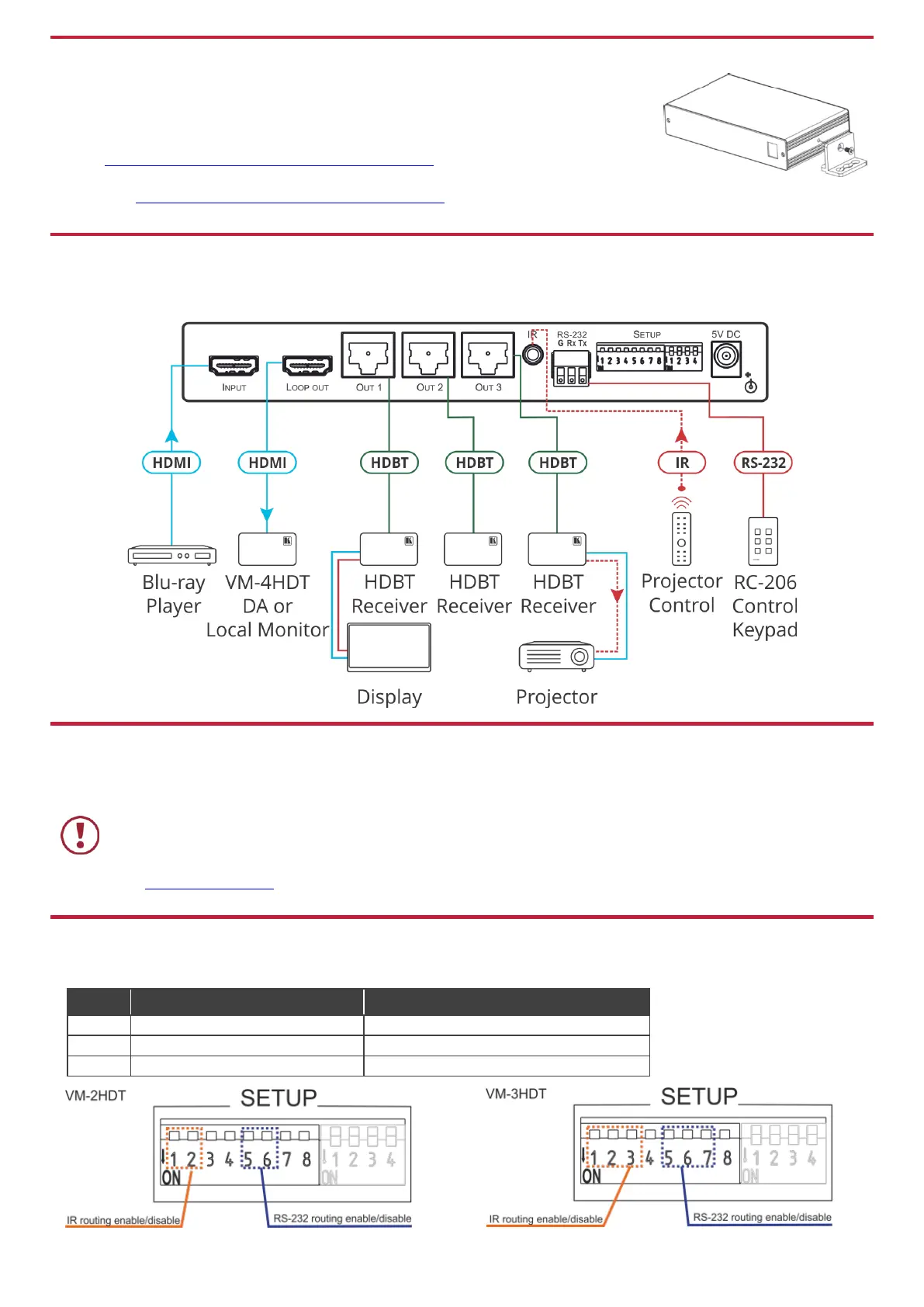

Step 4: Connect the inputs and outputs
Always switch OFF the power on each device before connecting it to your VM-2HDT, VM-3HDT. For best results, we
recommend that you always use Kramer high-performance cables to connect AV equipment to VM-2HDT, VM-3HDT.
Step 5: Connect the power
Connect the 5V DC power adapter to VM-2HDT, VM-3HDT and plug it into the mains electricity.
Safety Instructions
Caution:
There are no operator serviceable parts inside the unit.
Warning:
Use only the Kramer Electronics power supply that is provided with the unit.
Warning:
Disconnect the power and unplug the unit from the wall before installing.
See www.KramerAV.com for updated safety information.
Step 6: Operate VM-2HDT, VM-3HDT
To enable/disable IR and RS-232 routing, set the DIP-switches (by default, set to OFF) as follows:
Out #
IR Routing is enabled when:
RS-232 Routing is enabled when:
OUT 1
DIP 1 – OFF (up)
DIP 5 – OFF (up)
OUT 2
DIP 2 – OFF (up)
DIP 6 – OFF (up)
OUT 3
DIP 3 – OFF (up)
DIP 7 – OFF (up)

Kramer VM-2HDT Specifications

General

Brand	Kramer
Model	VM-2HDT
Category	Extender
Language	English
