Kramer VM-2UHD User Manual

VM-2UHD – Overview
5
3.1 Defining the VM-2UHD 1:2 HDMI DA
This section defines the VM-2UHD.

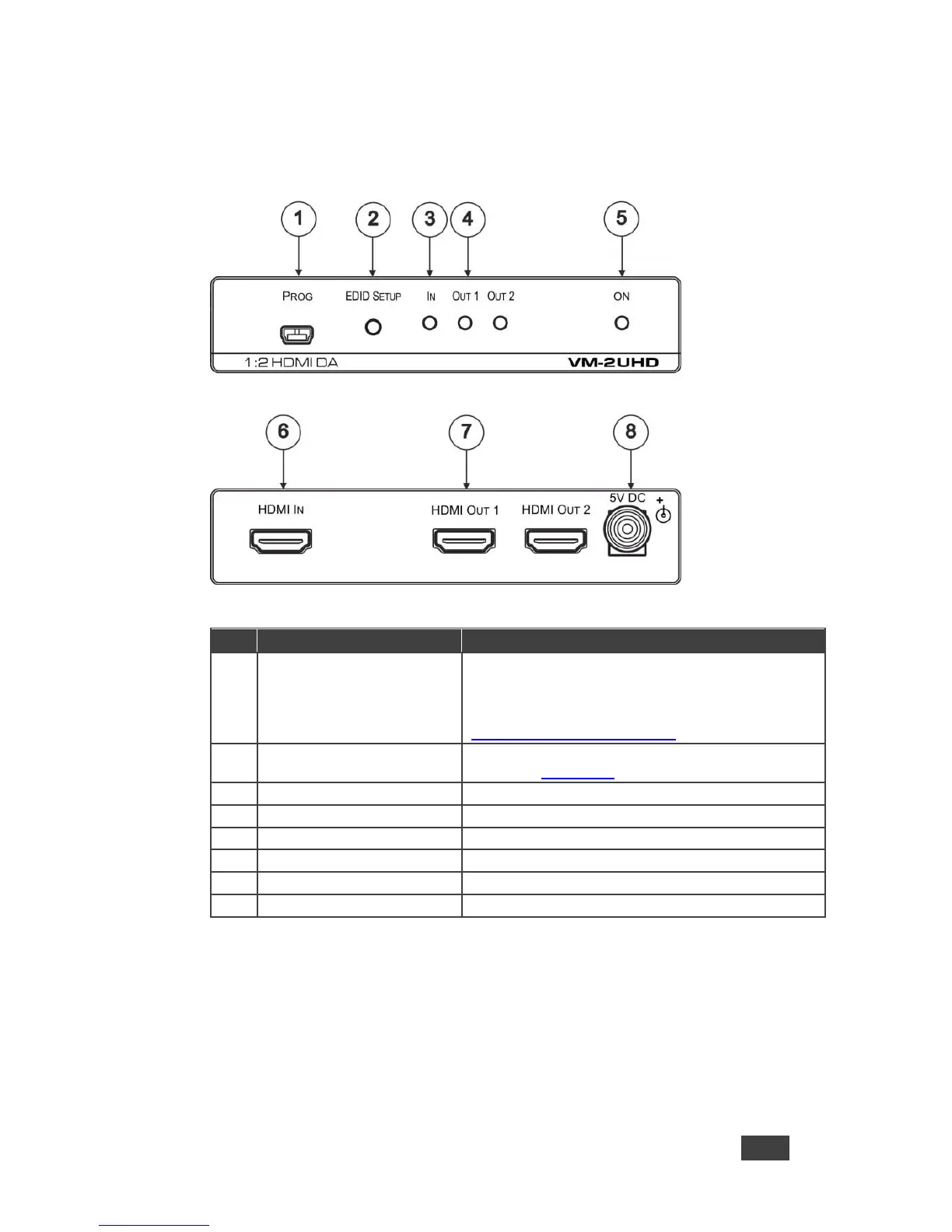

Figure 1: VM-2UHD 1:2 HDMI DA
#
Feature
Function
1
PROGRAM USB Connector
Connect to a PC to perform firmware upgrades (via
K-Upload) and work with the EDID Designer
K-Upload and EDID Designer can be downloaded
from our Web site at:
www.kramerav.com/downloads/)
2
EDID SETUP Button
Press to capture the input EDID or select the default
EDID (see Section 4.1)
3
IN LED
Lights when an active input signal is detected
4
OUT 1-2 LEDS
Lights when an active output acceptor is detected
5
ON LED
Lights when the device is powered on
6
HDMI IN Connector
Connects to the HDMI source
7
HDMI OUT 1-2 Connectors
Connect to up to 2 HDMI acceptors
8
5V DC Connector
Connects to the 5V DC power supply
