KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VP-2L UXGA Line Amplifier
4
4 Your VP-2L UXGA Line Amplifier

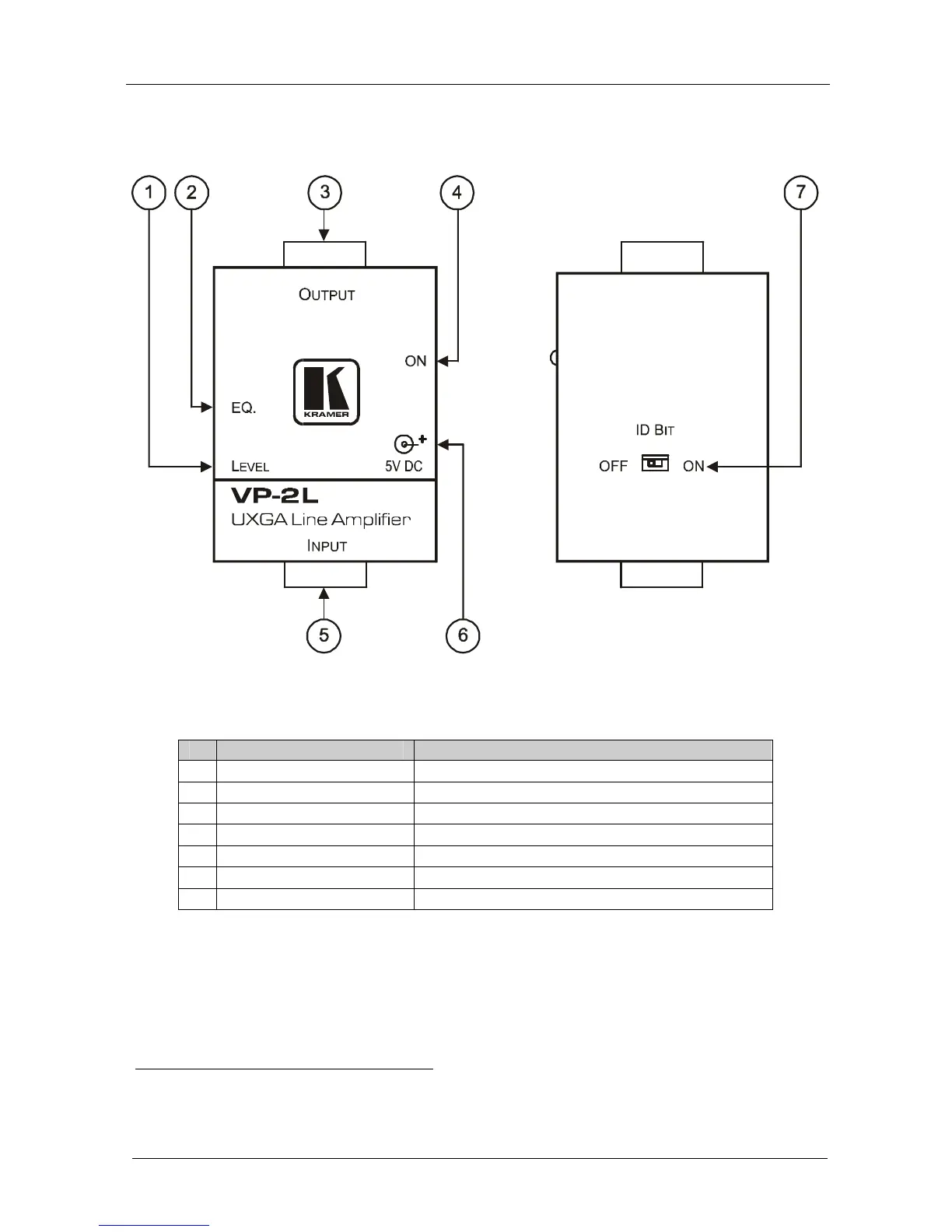

Figure 1 and Table 1 define the VP-2L:
Figure 1: VP-2L UXGA Line Amplifier
Table 1: VP-2L UXGA Line Amplifier Features
# Feature Function
1 LEVEL Control Trimmer Adjusts
1
the video signal level
2 EQ. Control Trimmer Adjusts
1
the video EQ. (equalization) compensation
3 OUTPUT HD15F Connector Connect to the computer graphics acceptor
4 ON LED Illuminates when receiving power
5 INPUT HD15F Connector Connect to the computer graphics source
6 5V DC +5V DC connector for powering the unit
7 ID Bit Switch Slide to the right to set to ON
2
; to the left to set to OFF
1 Use a screwdriver to rotate the trimmer, adjusting the appropriate level
2 The default. Enabling the notebook or laptop to output a VGA signal to an external VGA monitor
