Your VGA/UXGA Distributor
3
4.1 Your VP-3xl 1:3 VGA/UXGA Distributor
Figure 1, Table 1, and Table 2 define the VP-3xl 1:3 VGA/UXGA Distributor:

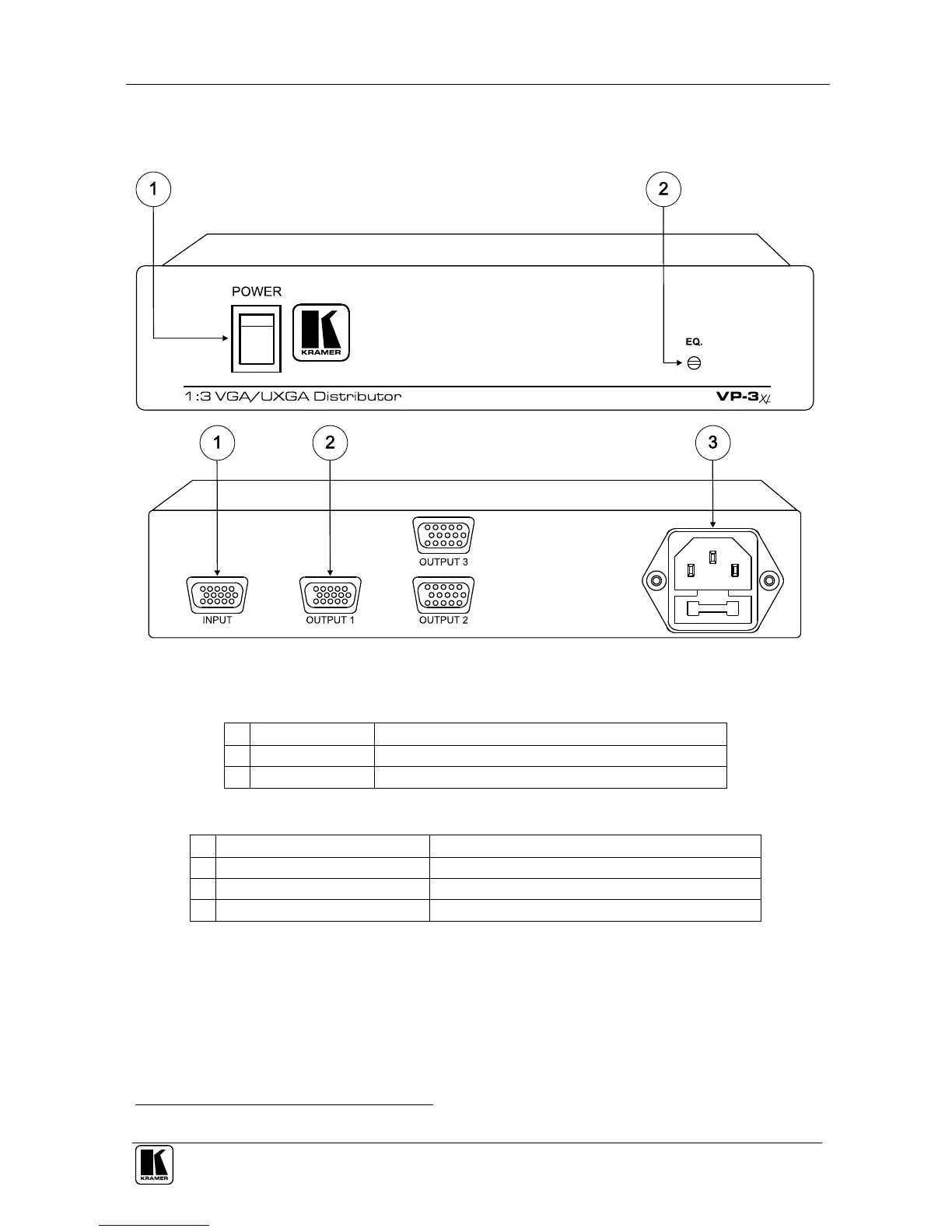

Figure 1: VP-3xl 1:3 VGA/UXGA Distributor
Table 1: Front Panel VP-3xl 1:3 VGA/UXGA Distributor Features
# Feature Function
1 POWER Switch Illuminated switch for turning the unit ON or OFF
2 EQ. Trimmer Adjusts
1
the video EQ. (equalization) compensation
Table 2: Rear Panel VP-3xl 1:3 VGA/UXGA Distributor Features
# Feature Function
1 INPUT HD15F Connector Connect to the VGA/UXGA source
2 OUTPUT HD15F Connector Connect to the VGA/UXGA acceptor (from 1 to 3)
3 Power Connector with FUSE AC connector enabling power supply to the unit
1 Insert a screwdriver into the hole and carefully rotate it, to trim the level
