PrPr
PrPr
Pr
eparation for useeparation for use
eparation for useeparation for use
eparation for use
12 33

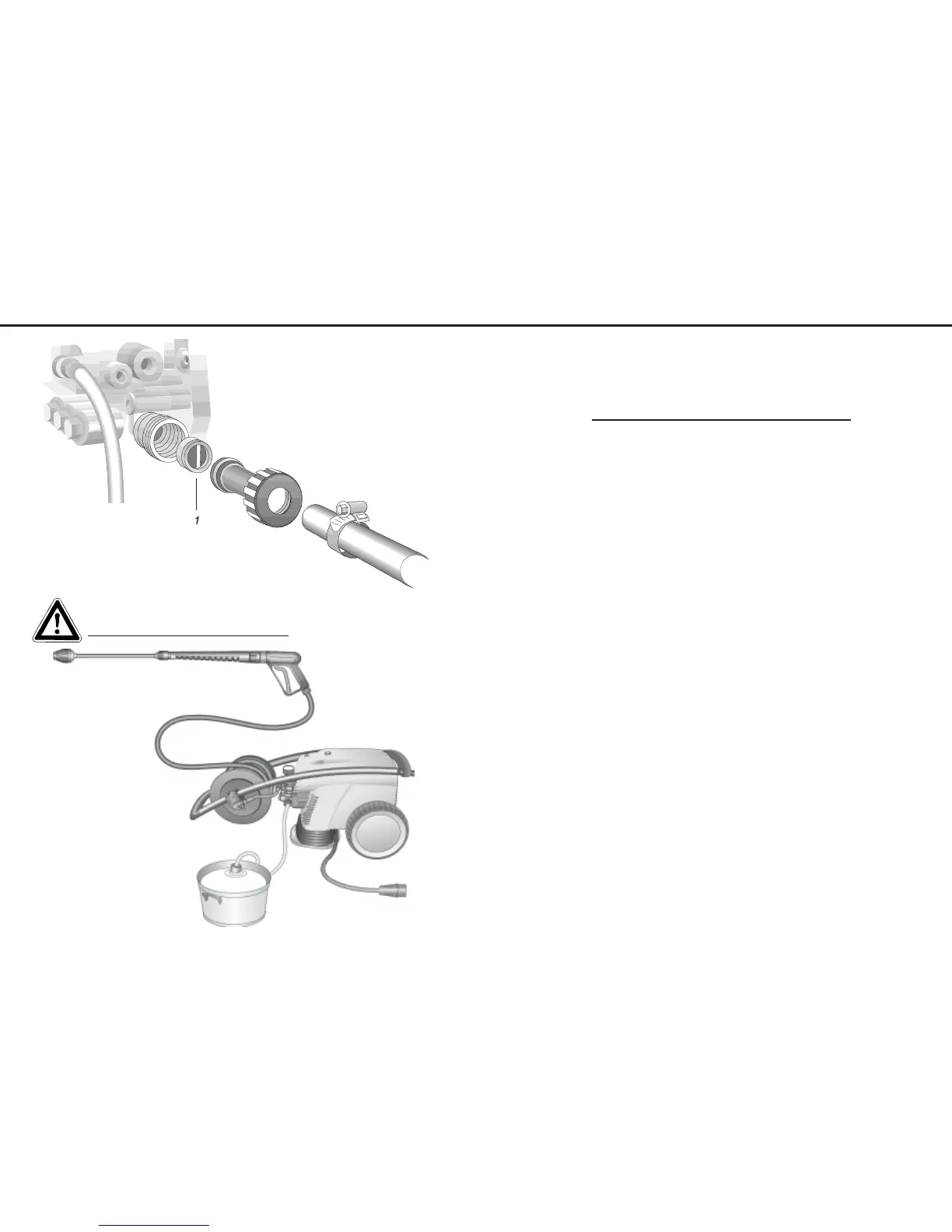

4. The machine can be connected to a
pressurised water line with cold or 80°C hot
water (see page 2).
Ensure that the water supply is clean when
sucking from external sources. The hose
cross section must be at least 3/4” =
16 mm (free passage).
Filter 1 must always be
clean.
Please make sure that
the filter is clean before
using your high pressure
cleaner.
CAUTION !
When running your high pressure cleaner with hot water of 80 °C raised tem-
peratures occur.
Do not touch the pump without safety gloves!
5. Maximum induction height 2.5 m
see technical data on page 2
Maximum temperature of
the inducted water: 60°C
Water
K 3170 TST - K 3270 TST
No Description Qty. Ord.-No
1 Ölgehäuse 1 40.501
4 Innensechskantschraube M 8 x 25 6 40.053
5 Sicherungsscheibe 6 40.054
6 Flachdichtung 1 40.511
7 Öldichtung 20 x 30x 7 3 40.044 1
8 Wellenscheibe 1 40.043
9 Axial-Rollenkäfig 1 40.040
10 AS-Scheibe 1 40.041
11.1 Taumelscheibe AQ 7,0° bei K 2170 TST 1 40.042 1
please specify angle 7,0° when ordering
12 Plungerfeder 3 40.506
13 Federdruckscheibe 3 40.510
14 Plunger 20 mm (lang) 3 40.505
15 Sprengring 3 40.048
16 O-Ring 14 x 2 2 43.445
17 Stopfen M 18 x 1,5 1 41.011
18 Flachdichtung 1 41.019 3
19 Deckel 1 40.518
20 Innensechskantschraube M 5 x 12 4 41.019 4
21 Stopfen M 18 x 1,5 mit Ölmeßstab 1 42.520
22 Stützscheibe für Plungerfeder 3 40.513
23 Ölablasschlauch 1 42.521 1
24 Kupferring 3 14.149
25 Verschlußkappe 1 44.130
Spare parts list KRÄNZLE 3170 TST - 3270 TST
Transmission unit for AQ-Pump
