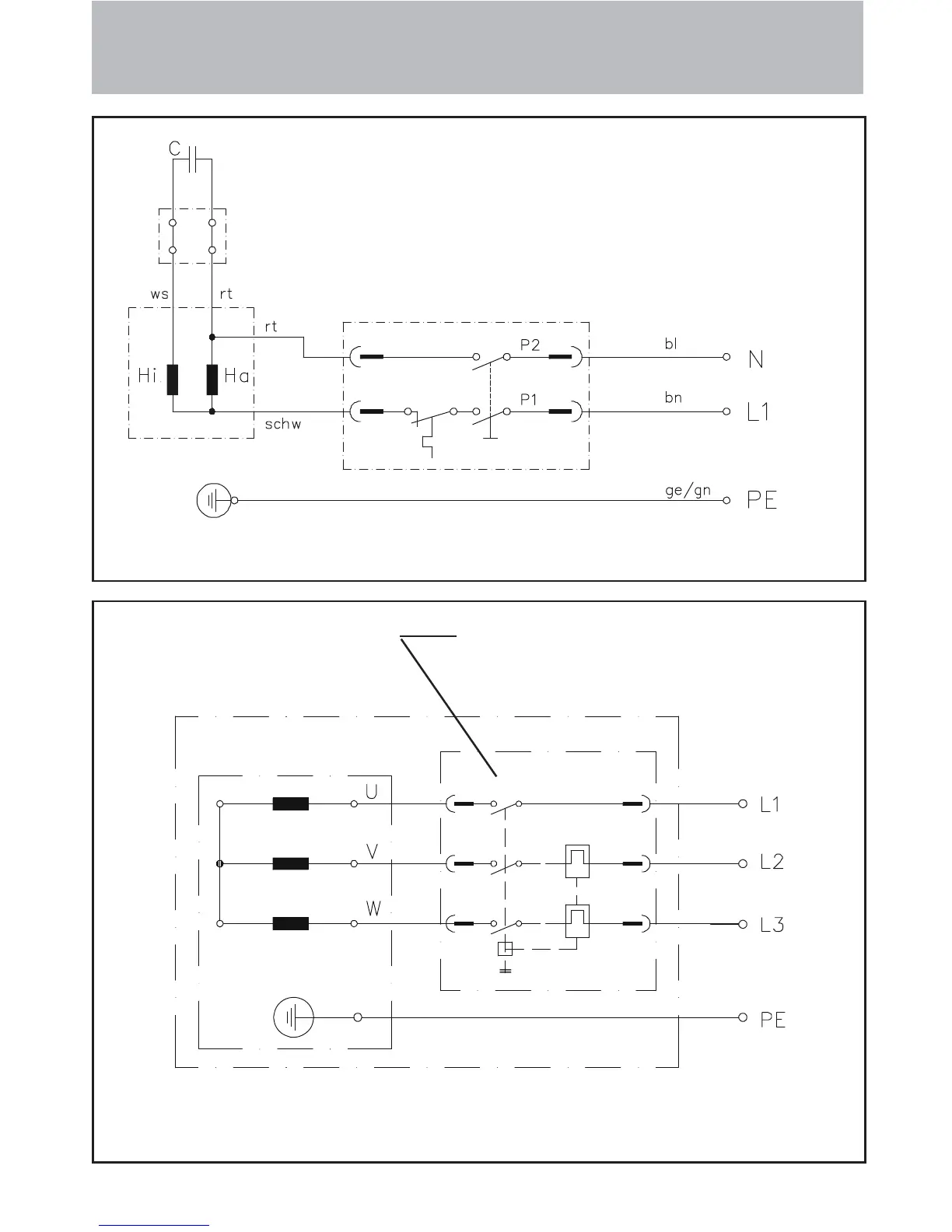

Kranzle K115 - Wiring Diagram

35
Terminal strip
Weber-Unimat WT 22 - 551
13,5A excess current release
Motor-Stator
Switch Weber - Amazonas
8 A for K155
KRÄNZLE 155 400 Volt / 50 Hz
Motor with terminal box
KRÄNZLE 115, 125, 135 230 Volt / 50 Hz
Wiring diagram
70 μF
braun = brown
blau = blue
schw = black
rt = red
ge = yellow
gn = green
ws = white
