Kranzle therm 890 User Manual

Control board
with delayed
motor cut-out
Control board
Burner console
Anti-interference device
A1
B1
F1
K3
M1
M2
Q1
Q2
S1
S2
S3
S4
Y1
CEE 4x16A
400V/50Hz
A1 Ignition transformer
B1 Thermostat
F1 Fuse 3.15 timelag
K3 Motor contactor
M1 Motor, HP pump
M2 Burner motor
Q1 Master switch
Q2 Burner switch
S1 Excess temperature release
S2 Pressure switch delayed motor cut-out
S3 Pressure switch burner release
S4 Float switch (Fuel)
S5 Waterflow detector
Y1 Fuel valve

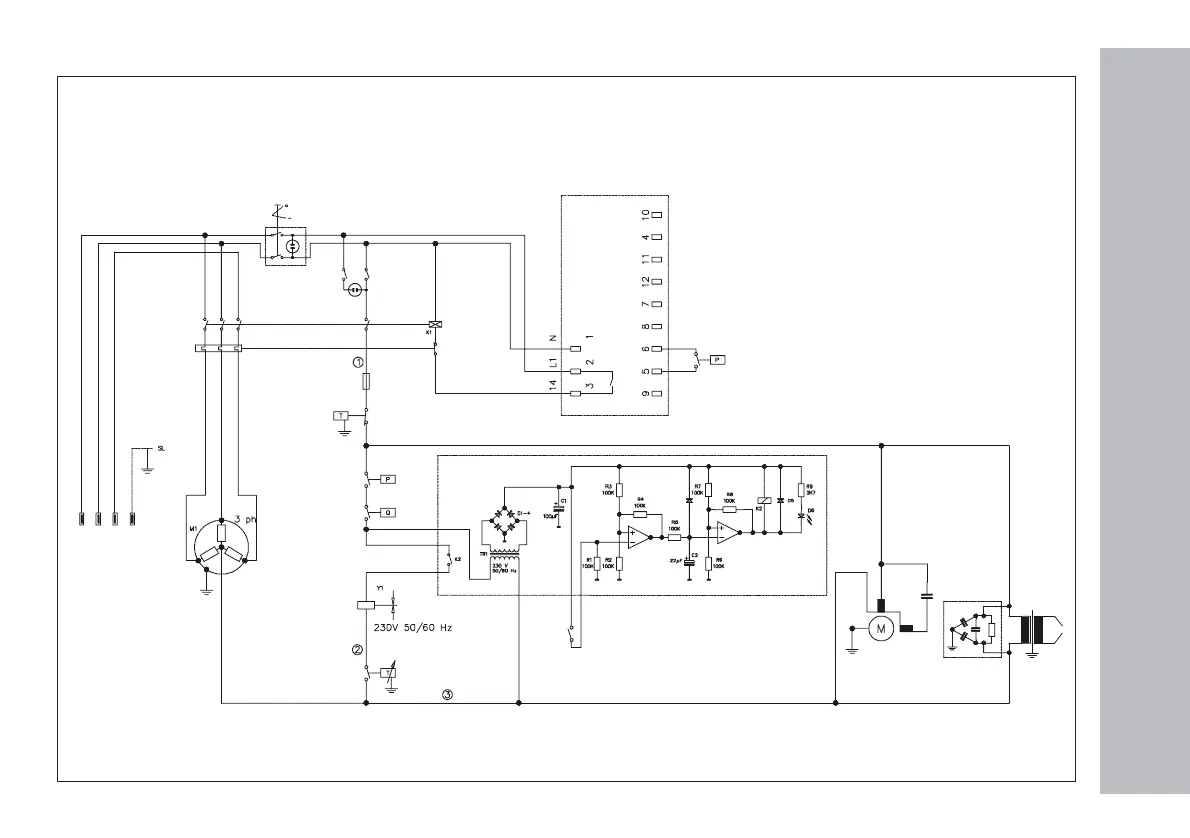

Circuit diagramme
27
Y1
B1
S5
