28

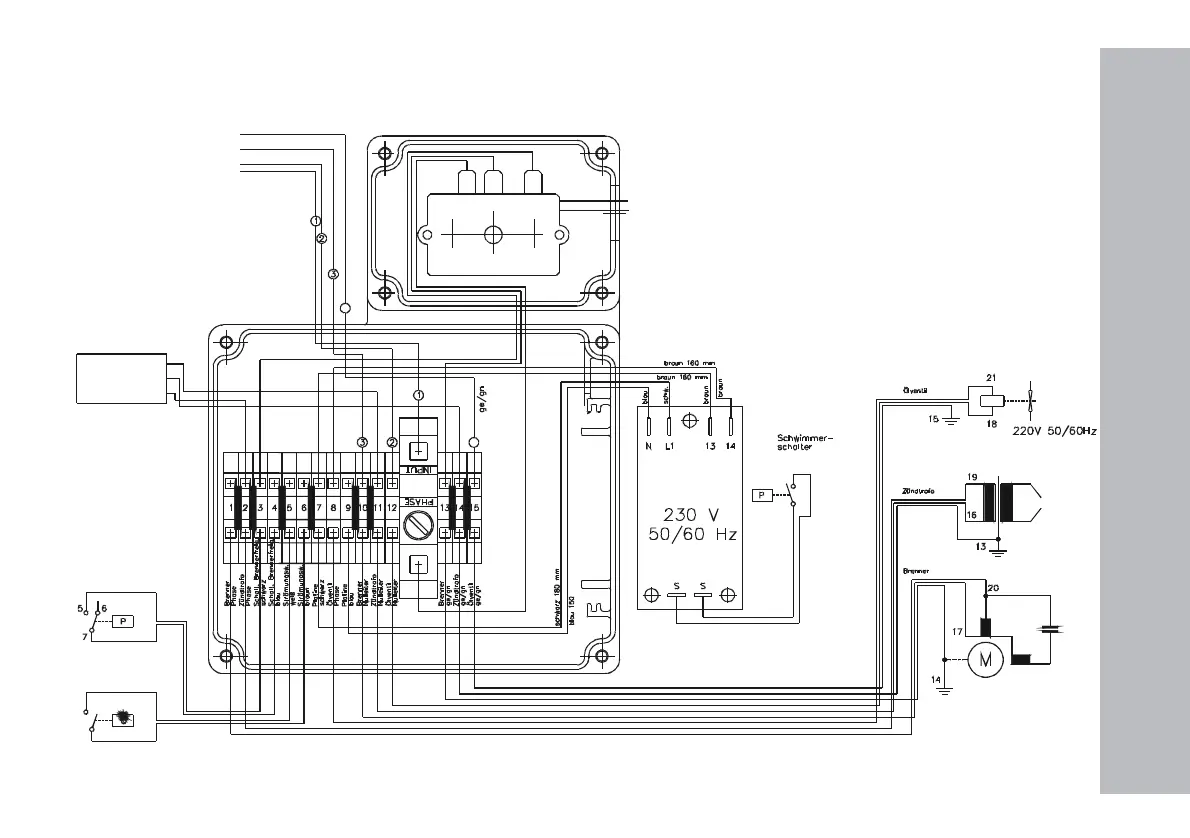

Terminal box terminal plan
Screening unit
Terminal box
Pressure switch
burner release
(black)
4-pole control
line 4x1,0 mm²
Control
board
Burner motor
Ignation
transformator
Solenoid
valve (Fuel)
Float switch
(Fuel)
Waterflow
detector
