29

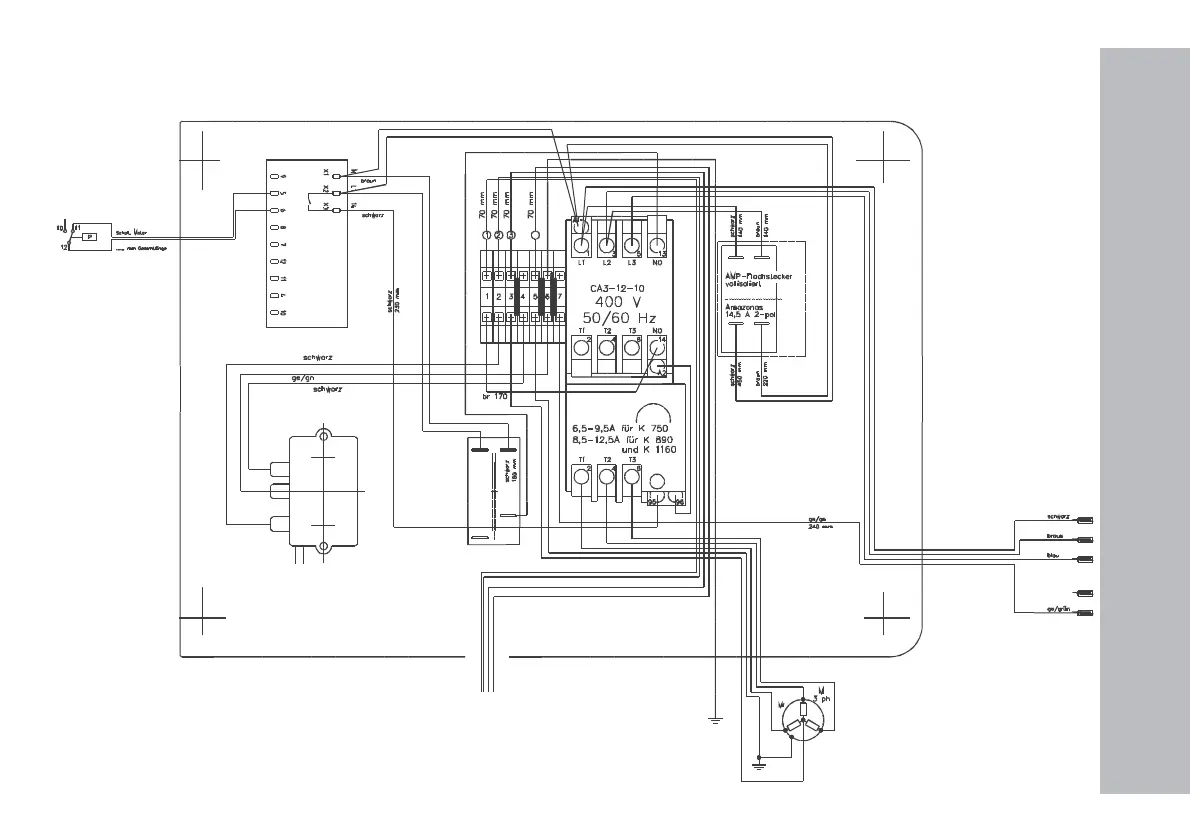

Cockpit terminal plan
Earth cable
Machine frame
Three-Phase motor
High pressure pump
Mains con-
nection cable
Master switch
Motor contactor
B1 Thermostat
7-pole control
line 4x1,0 mm²
Differential
pressure switch
(red)
Overcurrent
relaese
Control board
with delayed
motor cut-out
Pump
S
t
art - S
top
28
30
Table of Contents
Technical Data
2
Dear Customer
2
Construction and Function
3
Water System
4
Motor Protection Switch
5
Heat Exchanger
7
Safety Information
8
Electrical Connection
12
Water Connection
13
High Pressure Connection
13
Usage as a Cold Water High Pressure Cleaner
14
Usage as a Hot Water High Pressure Cleaner
14
Adjusting the Pressure
15
Care and Maintenance
16
Anti-Freeze Protection
16
Decalcifying the Heating Coil
18
Troubleshooting
23
Complete Assembly
30
Electronics Switchbox
32
Water Supply
34
Fuel Supply
35
Combustion Chamber
36
Unloader and Pressure Switch
40
Valve Housing
46
Pump Motor
48
Fuel Pump
49
Pipeline Plan
54
Ec Declaration of Conformity
55
Inspection Sheet
56
Inspection Report for HP Cleaners
58
