7
1
2
3
2
3
4
1
5
CAUTION: If the connections are not
made properly, the sensor feature will
not work.

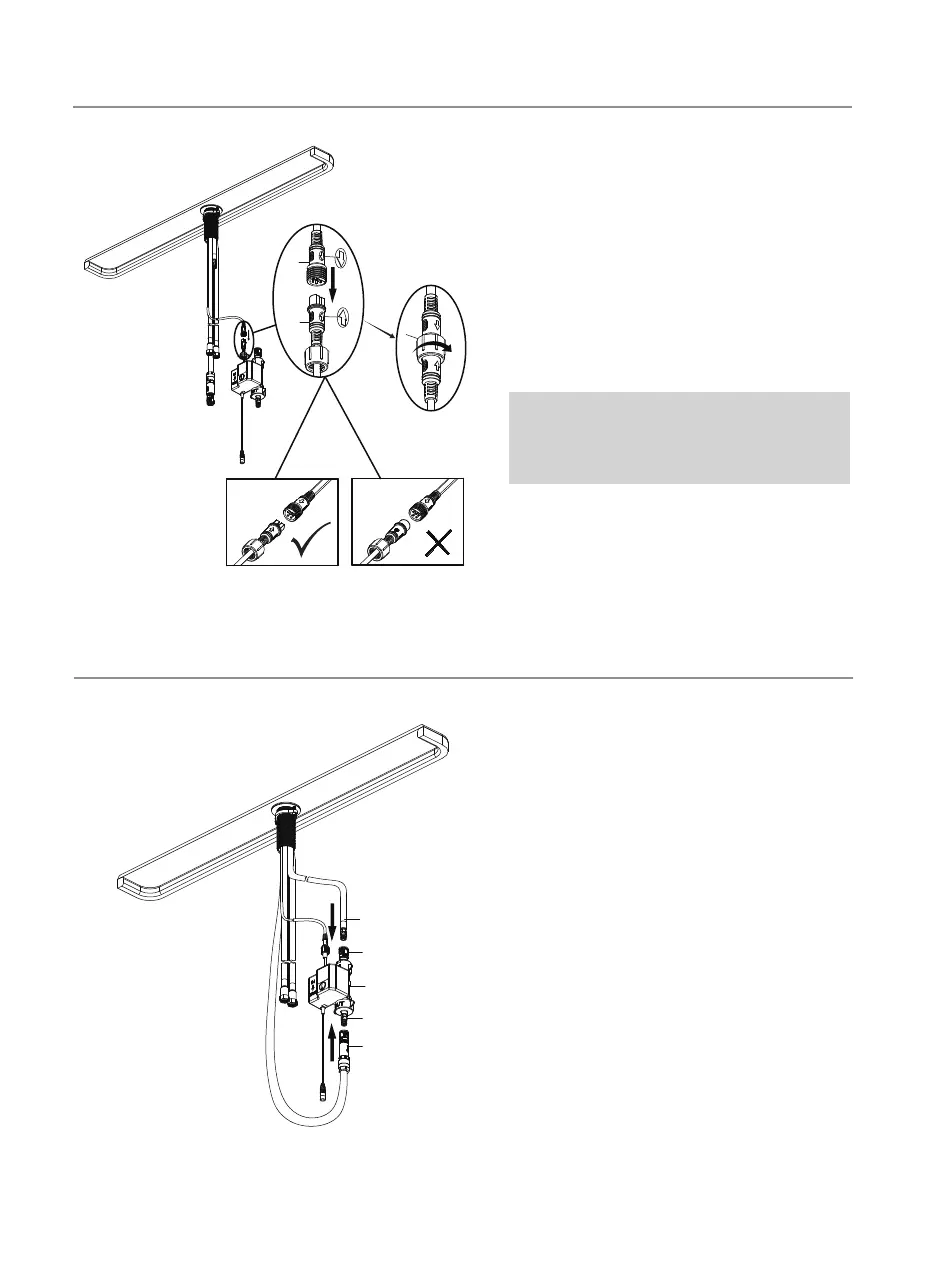

Step 3: Installing the sensor control box
Install the data cable (1) to the control
box connection (2). Ensure the arrows
on the data cable and control box
connection are aligned to one another
to ensure proper installation. Ensure
they are tightly connected by firmly
pushing together. Secure the
connection by hand tightening the nut
(3) in a clockwise direction onto the
threaded sensor cable.
Step 4: Installing the sensor control box
Connect the hose (1& 2) to the
connector (3 & 4) on the control box
(5). Push firmly together until they
snap into place.
