Kraus Oren KPF-2252 User Manual

10

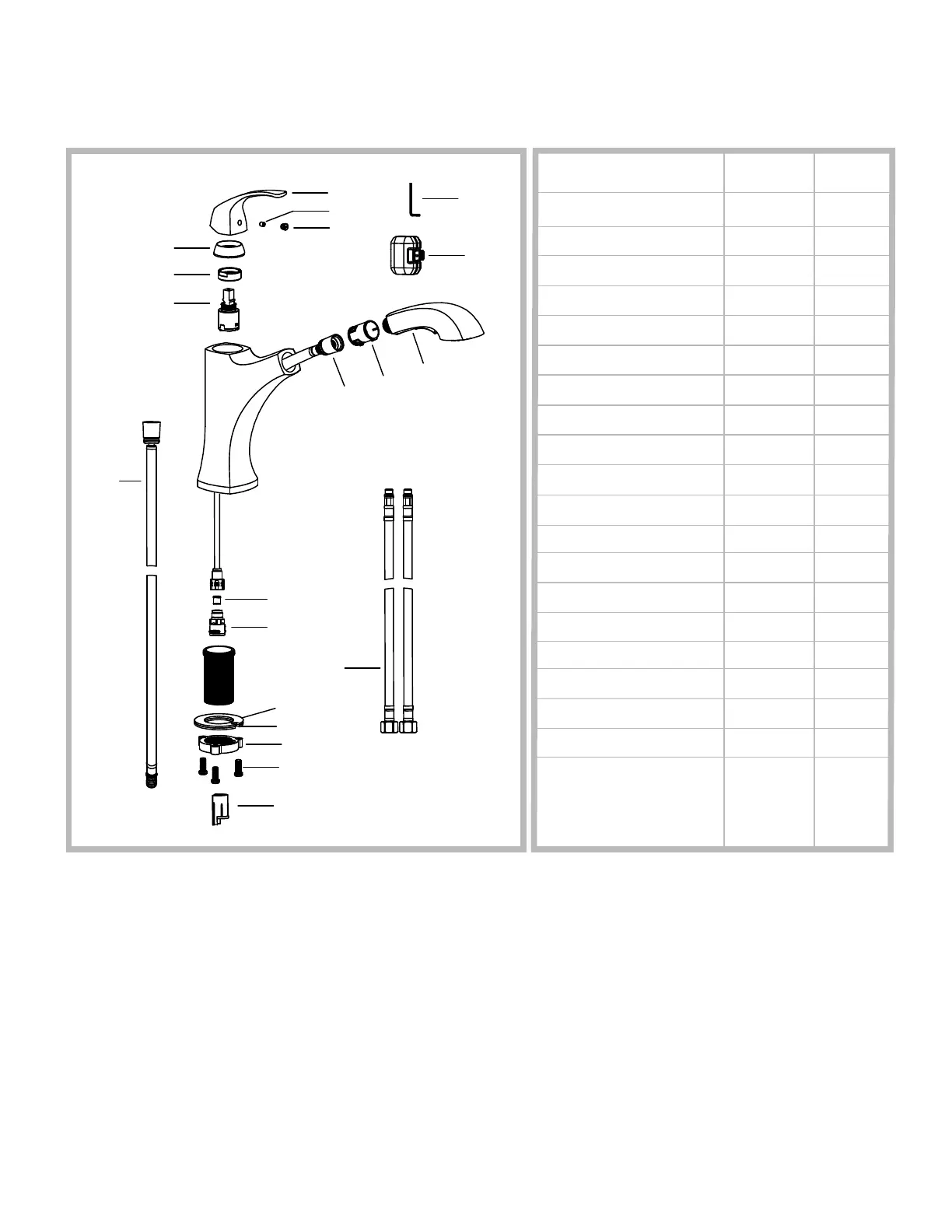

Replacement Parts
4
5
6
12
9
7
7
10
11
17
8
1
2
3
15
14
1. Metal Handle
2. Set Screw
3. Handle Button
4. Cartridge Cover
5. Locking Nut
6. Cartridge
7. Spray Hose
8. Hose Guide
9. Spray Head
10. Check Valve
11. Quick Connector
12. Rubber Washer
13. Metal Washer
14. Mounting Nut
15. Mounting Screws
16. Protective Sleeve
17. Hot & Cold Waterlines
18. Weight
19. Hex Wrench
20. Mounting Hardware Kit
(includes KP06041,
KP06028,KP06067,
KP06068)
Replacement Parts List Finish/Color Part #
KP06002
KP06055
KP06030
KP06020
KP06018
KP06100
KP06097
KP06045
KP06090
KP06104
KP06108
KP06041
KP06028
KP06067
KP06068
KP06057
KP06095
KP06015
KP06050
KP06200
CH,SFS,MB*
*Denotes faucet component color options:
SFS - Spot Free Stainless Steel
MB - Matte Black
CH - Chrome
CH,SFS,MB*
CH,SFS,MB*
CH,SFS,MB*
CH,SFS,MB*
16
14
15
12
13

Kraus Oren KPF-2252 Specifications

General

Brand	Kraus
Model	Oren KPF-2252
Category	Plumbing Product
Language	English
