Kreg Precision KMS7101 - Precision Miter Gauge Parts Diagram; Component Identification

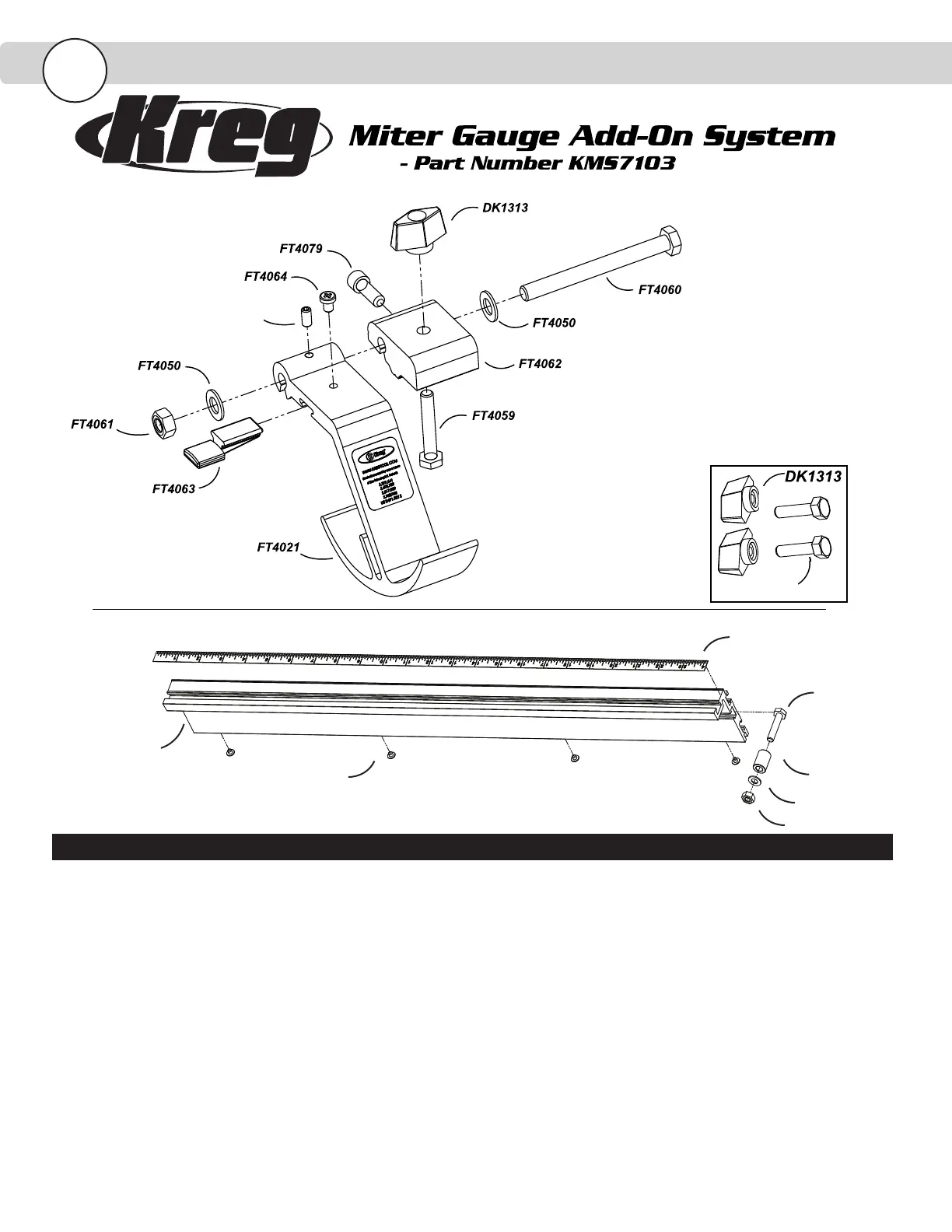

Parts Diagram

















5
KMS7702
FT4055
DK1504
DK1510
FT4059
FT4139
FT4047
DK1313 3 Black T-Knob
DK1504 1 Brass Washers
DK1510 1 1/4” - 20 Hex Nut
FT4021 1 Flipstop Arm
FT4047 1 4’ Right to Left Reading Self-Adhesive Tape
FT4050 2 5/16” Delrin Washer
FT4055 4 Trak Bumper
FT4059 2 1/4-20 x 1-1/4” Hex Head Bolt
FT4060 1 5/16” - 24 x 3-1/4” Hex Head Bolt
FT4061 1 5/16” - 24 Nyloc Nut
FT4062 1 Stop Base
FT4063 1 Lens
FT4064 1 10-32 x 1/4” Nylon Screw
FT4204 1 10-32 x 3/16” Half Dog Point Set Screw
FT4079 1 1/4” - 20 x 1/2” Nylon Hex Socket Screw
FT4203 1 Positioning Stop for Miter Gauge Head
FT4139 2 1/4” - 20 x 1” Hex Head Bolt
KMS7702 1 Auxiliary Fence HD Trak
Part Number Quantity Description
FT4203
FT4204
