Krell Industries Front Loading Compact Disc Player KAV-300cd - Figure 1 FRONT PANEL; Figure 2 BACK PANEL

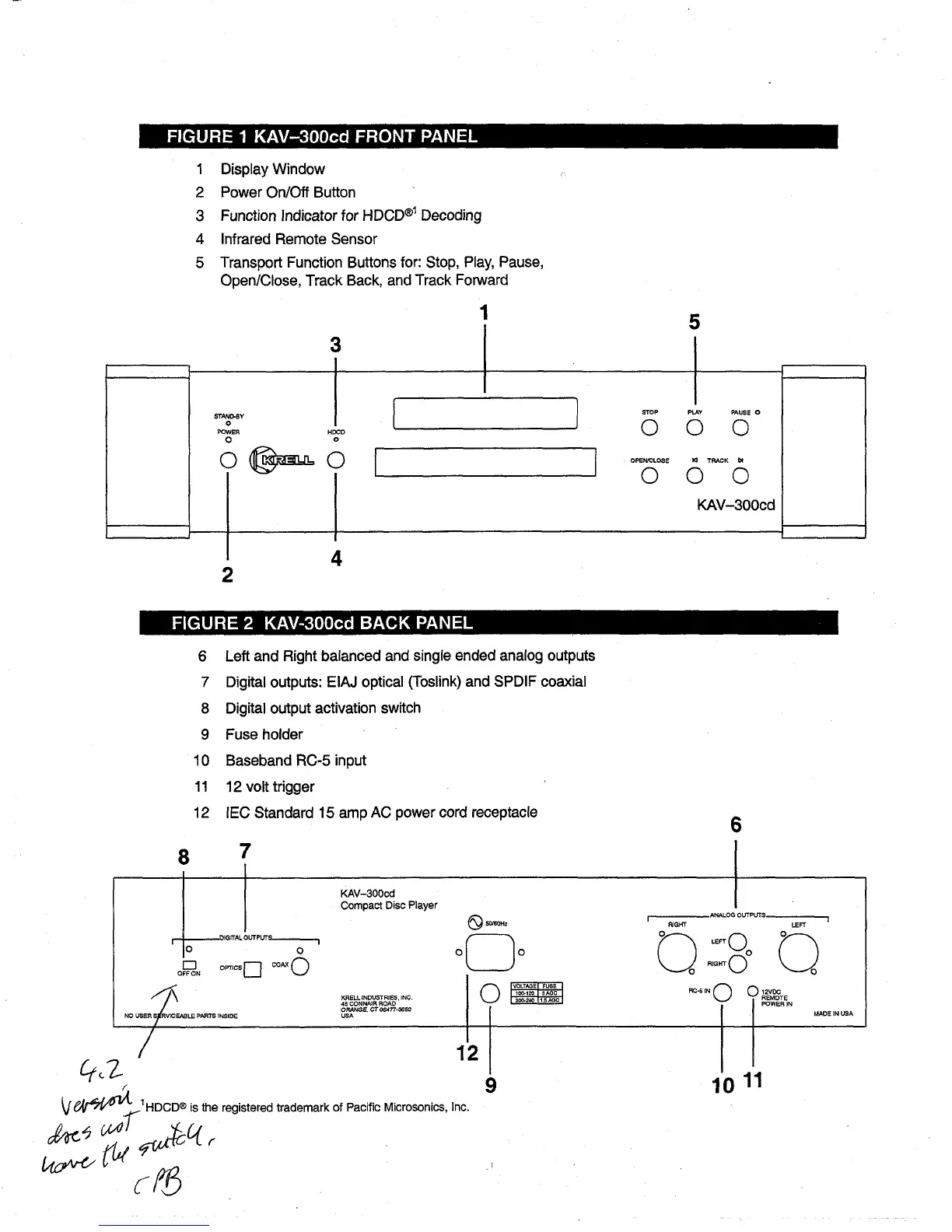

FIGURE 1 KAV-300cd FRONT PANEL
1 Display Window
2 Power On/Off Button
3
Function Indicator for HDCD
®1
Decoding
4 Infrared Remote Sensor
5
Transport Function Buttons for: Stop, Play, Pause,
Open/Close, Track Back, and Track Forward
1
3
HDCD
O
5
4
2
0 0 0
KAV-300cd
FIGURE 2 KAV-:~00cd BACK PANEL
6
Left and Right balanced and single ended analog outputs
7 Digital outputs: EIAJ optical (Toslink) and SPDIF coaxial
8
Digital output activation switch
9 Fuse holder
10
Baseband RC-5 input
11 12 volt trigger
12 IEC Standard 15 amp AC power cord receptacle
8 7
r-o~
IGrrAL°uTPUTs----~O
/
KAV-300cd
Compact Disc Player
V~
~
HDCD® is the registered trademark of Pacific Microsonics, Inc.
