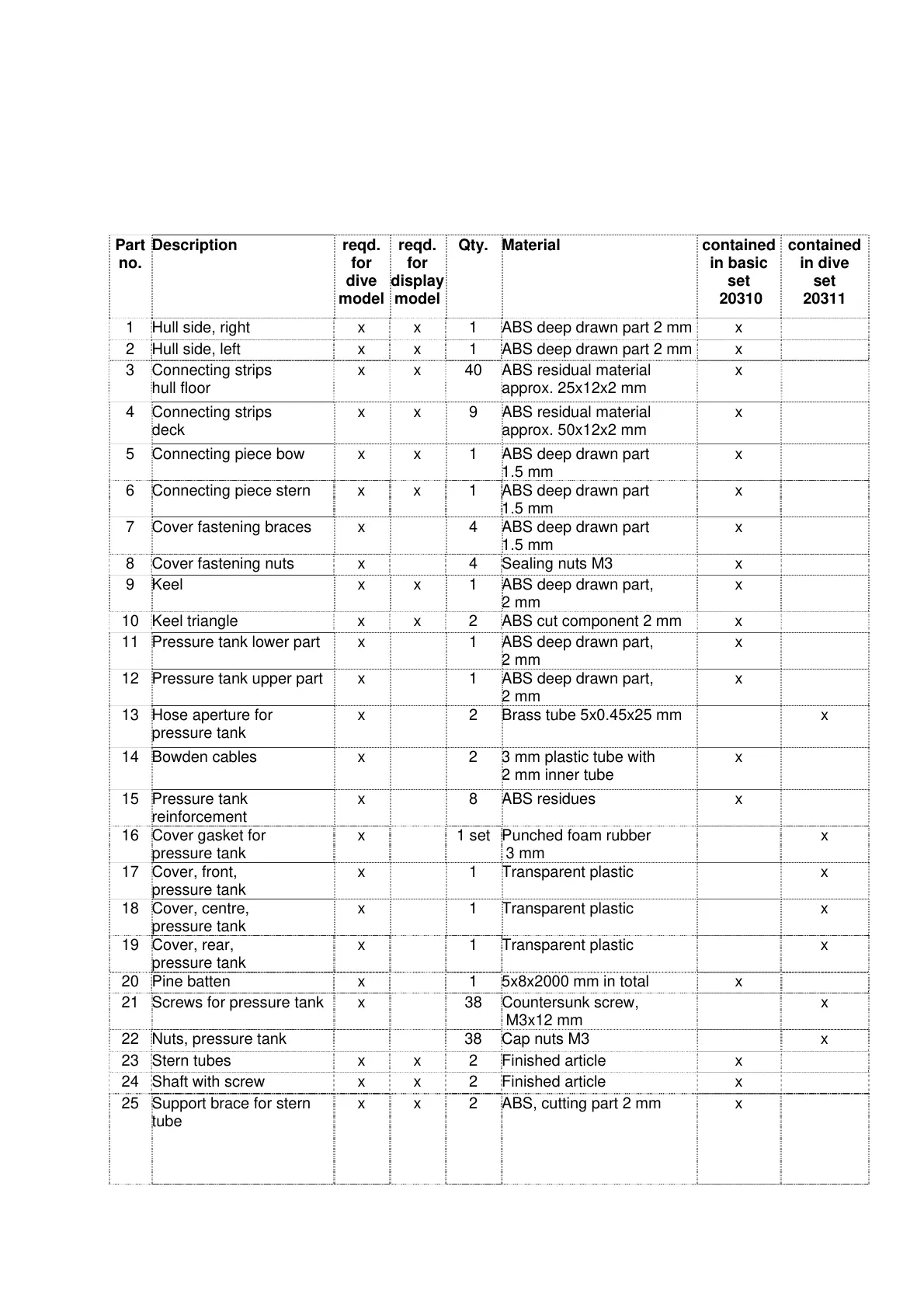

Item list for submarine type VIIb
This item list contains both the parts of the construction box (order no. 20310) and of the diving set
(order no. 20311)
Part
no.
Description reqd.
for
dive
model
reqd.
for
display
model
Qty. Material contained
in basic
set
20310
contained
in dive
set
20311
1 Hull side, right x x 1 ABS deep drawn part 2 mm x
2 Hull side, left x x 1 ABS deep drawn part 2 mm x
3 Connecting strips
hull floor
x x 40 ABS residual material
approx. 25x12x2 mm
x
4 Connecting strips
deck
x x 9 ABS residual material
approx. 50x12x2 mm
x
5 Connecting piece bow x x 1 ABS deep drawn part
1.5 mm
x
6 Connecting piece stern x x 1 ABS deep drawn part
1.5 mm
x
7 Cover fastening braces x 4 ABS deep drawn part
1.5 mm
x
8 Cover fastening nuts x 4 Sealing nuts M3 x
9 Keel x x 1 ABS deep drawn part,
2 mm
x
10 Keel triangle x x 2 ABS cut component 2 mm x
11 Pressure tank lower part x 1 ABS deep drawn part,
2 mm
x
12 Pressure tank upper part x 1 ABS deep drawn part,
2 mm
x
13 Hose aperture for
pressure tank
x 2 Brass tube 5x0.45x25 mm x
14 Bowden cables x 2 3 mm plastic tube with
2 mm inner tube
x
15 Pressure tank
reinforcement
x 8 ABS residues x
16 Cover gasket for
pressure tank
x 1 set Punched foam rubber
3 mm
x
17 Cover, front,
pressure tank
x 1 Transparent plastic x
18 Cover, centre,
pressure tank
x 1 Transparent plastic x
19 Cover, rear,
pressure tank
x 1 Transparent plastic x
20 Pine batten x 1 5x8x2000 mm in total x
21 Screws for pressure tank x 38 Countersunk screw,
M3x12 mm
x
22 Nuts, pressure tank 38 Cap nuts M3 x
23 Stern tubes x x 2 Finished article x
24 Shaft with screw x x 2 Finished article x
25 Support brace for stern
tube
x x 2 ABS, cutting part 2 mm x
