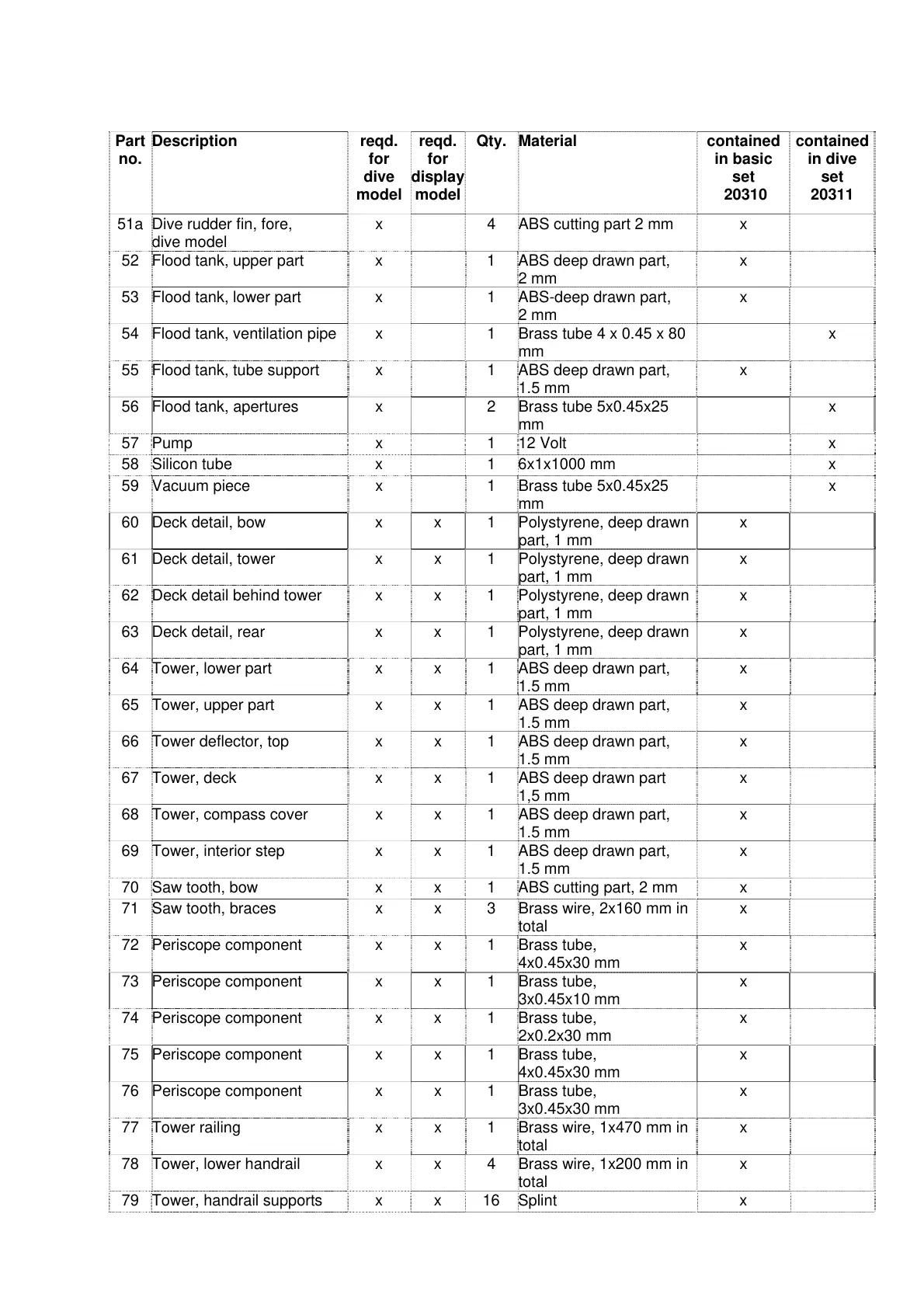

Krick 20310 - Page 22

Page 22 © Klaus Krick Modelltechnik Knittlingen August 2002
Part
no.
Description reqd.
for
dive
model
reqd.
for
display
model
Qty. Material contained
in basic
set
20310
contained
in dive
set
20311
51a Dive rudder fin, fore,
dive model
x 4 ABS cutting part 2 mm x
52 Flood tank, upper part x 1 ABS deep drawn part,
2 mm
x
53 Flood tank, lower part x 1 ABS-deep drawn part,
2 mm
x
54 Flood tank, ventilation pipe x 1 Brass tube 4 x 0.45 x 80
mm
x
55 Flood tank, tube support x 1 ABS deep drawn part,
1.5 mm
x
56 Flood tank, apertures x 2 Brass tube 5x0.45x25
mm
x
57 Pump x 1 12 Volt x
58 Silicon tube x 1 6x1x1000 mm x
59 Vacuum piece x 1 Brass tube 5x0.45x25
mm
x
60 Deck detail, bow x x 1 Polystyrene, deep drawn
part, 1 mm
x
61 Deck detail, tower x x 1 Polystyrene, deep drawn
part, 1 mm
x
62 Deck detail behind tower x x 1 Polystyrene, deep drawn
part, 1 mm
x
63 Deck detail, rear x x 1 Polystyrene, deep drawn
part, 1 mm
x
64 Tower, lower part x x 1 ABS deep drawn part,
1.5 mm
x
65 Tower, upper part x x 1 ABS deep drawn part,
1.5 mm
x
66 Tower deflector, top x x 1 ABS deep drawn part,
1.5 mm
x
67 Tower, deck x x 1 ABS deep drawn part
1,5 mm
x
68 Tower, compass cover x x 1 ABS deep drawn part,
1.5 mm
x
69 Tower, interior step x x 1 ABS deep drawn part,
1.5 mm
x
70 Saw tooth, bow x x 1 ABS cutting part, 2 mm x
71 Saw tooth, braces x x 3 Brass wire, 2x160 mm in
total
x
72 Periscope component x x 1 Brass tube,
4x0.45x30 mm
x
73 Periscope component x x 1 Brass tube,
3x0.45x10 mm
x
74 Periscope component x x 1 Brass tube,
2x0.2x30 mm
x
75 Periscope component x x 1 Brass tube,
4x0.45x30 mm
x
76 Periscope component x x 1 Brass tube,
3x0.45x30 mm
x
77 Tower railing x x 1 Brass wire, 1x470 mm in
total
x
78 Tower, lower handrail x x 4 Brass wire, 1x200 mm in
total
x
79 Tower, handrail supports x x 16 Splint x
