Design and function
15
4 Design and function
4.1 General description
The aeroplus E oxygen concentrator for has been optimized for the oxygen supply at home.
The aeroplus E concentrates the oxygen of the room air by applying the pressure swing
adsorption process, by removing the nitrogen portion of the room air. The remaining gas
contains up to 95% pure oxygen and is supplied to the patient with up to 5 liter per minute.
4.2 Design

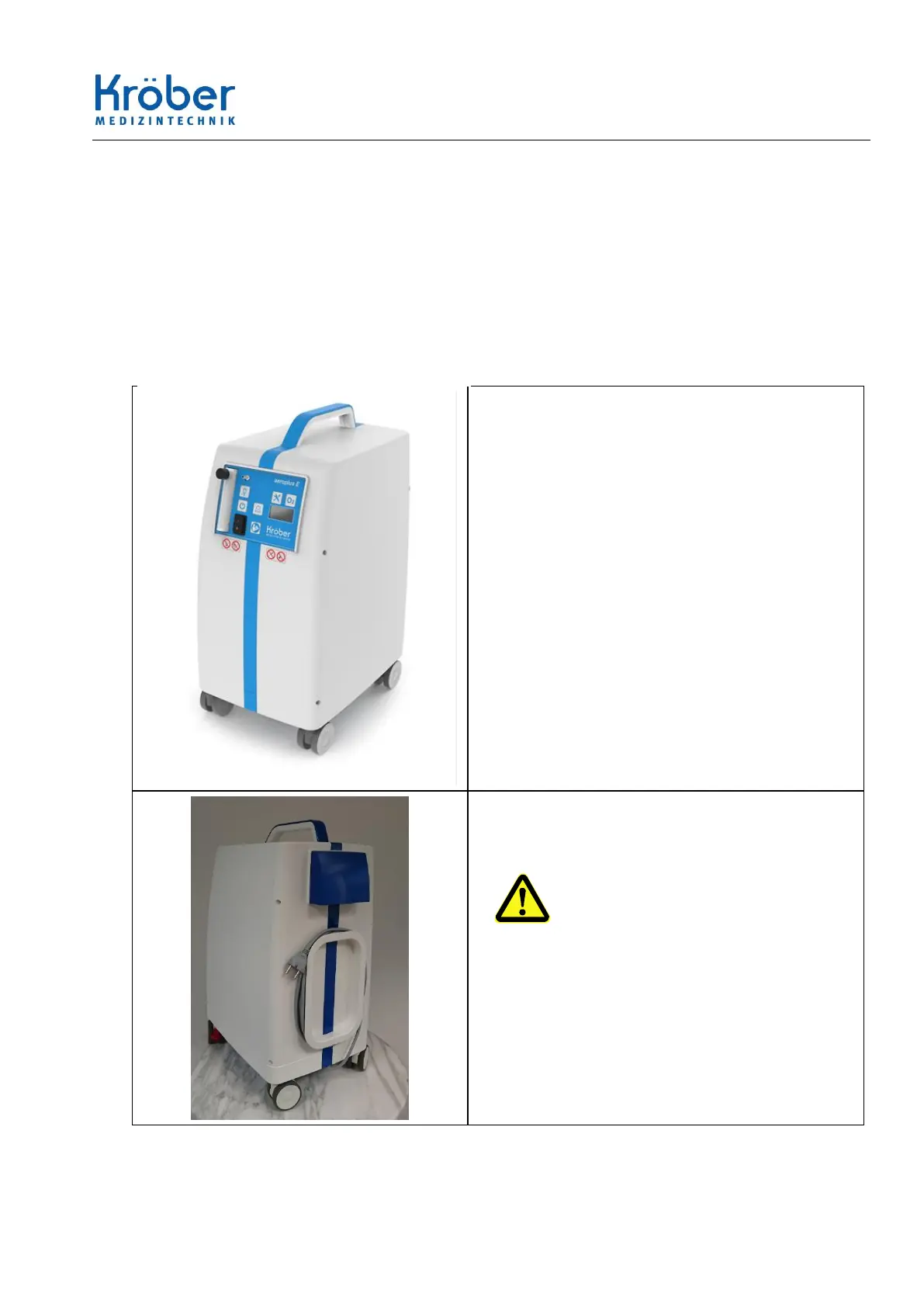

Setup:
1 Carrying handle
2 O2 flowmeter
3 Control panel
4 Casters
5 Mounting bracket for humidifier
6 Filter lid
7 Device inlet filter (behind filter lid) and air inlet
8 USB service connection (behind filter lid)
WARNING! Risk of device
malfunction!
Connect only authorized devices to this
port for service means
9 Mains power cable
10 Air exhaust
1
2
3
4
8
6
6
9
10
7
