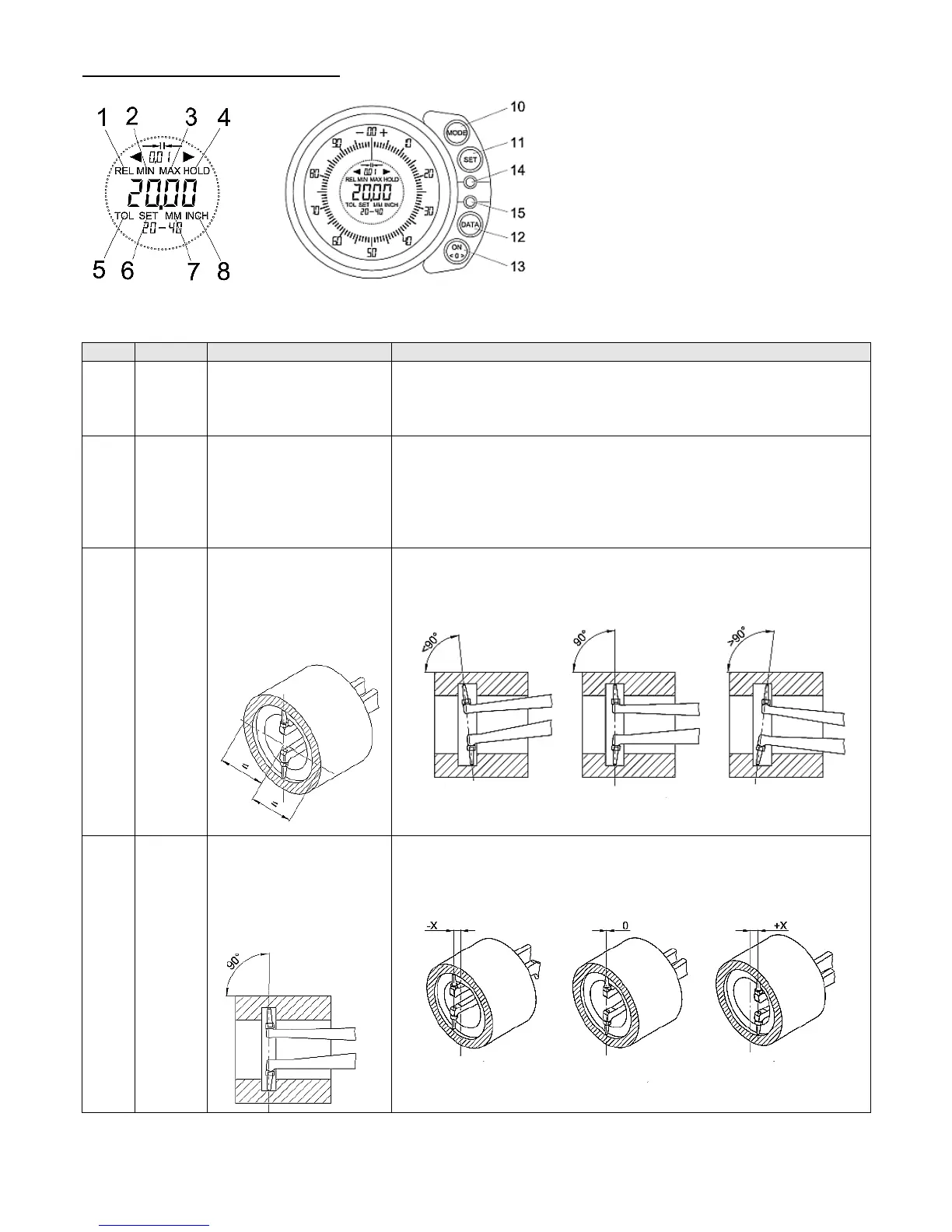

2. Display and operating keys
Display:
No. Display Function Application
Without Continuous tracking of the
measured value and
pointer in relation to the
position of the caliper
Absolut mode: Direct finding and reading of the measured value
1 REL Switching from Absolute
into Relative mode.
(0-Preset)
The Absolute mode will
not be displayed sepa-
rately
Switch can be done in every mode,
but should be done in MIN, MAX or HOLD Mode, as the last measured
value can be set to 0.
2 MIN Finding and saving of the
minimum measured value
Requirement:
Measuring axle is central
to the bore
For internal diameter and wide grooves,
Steadily pivot gauge vertically
Measurement:
3 MAX Finding and saving of the
maximum measured value
Requirement:
Measuring axle is vertical
to the bore
For small grooves where a vertical panning is not possible.
Steadily pivot gauge horizontally or turn it around its own axis.
Measurement:
Measured value
too high
Measured value
is correct
Measured value
too high
Measured value
too small
Measured value
is correct
Measured value
too small
