17

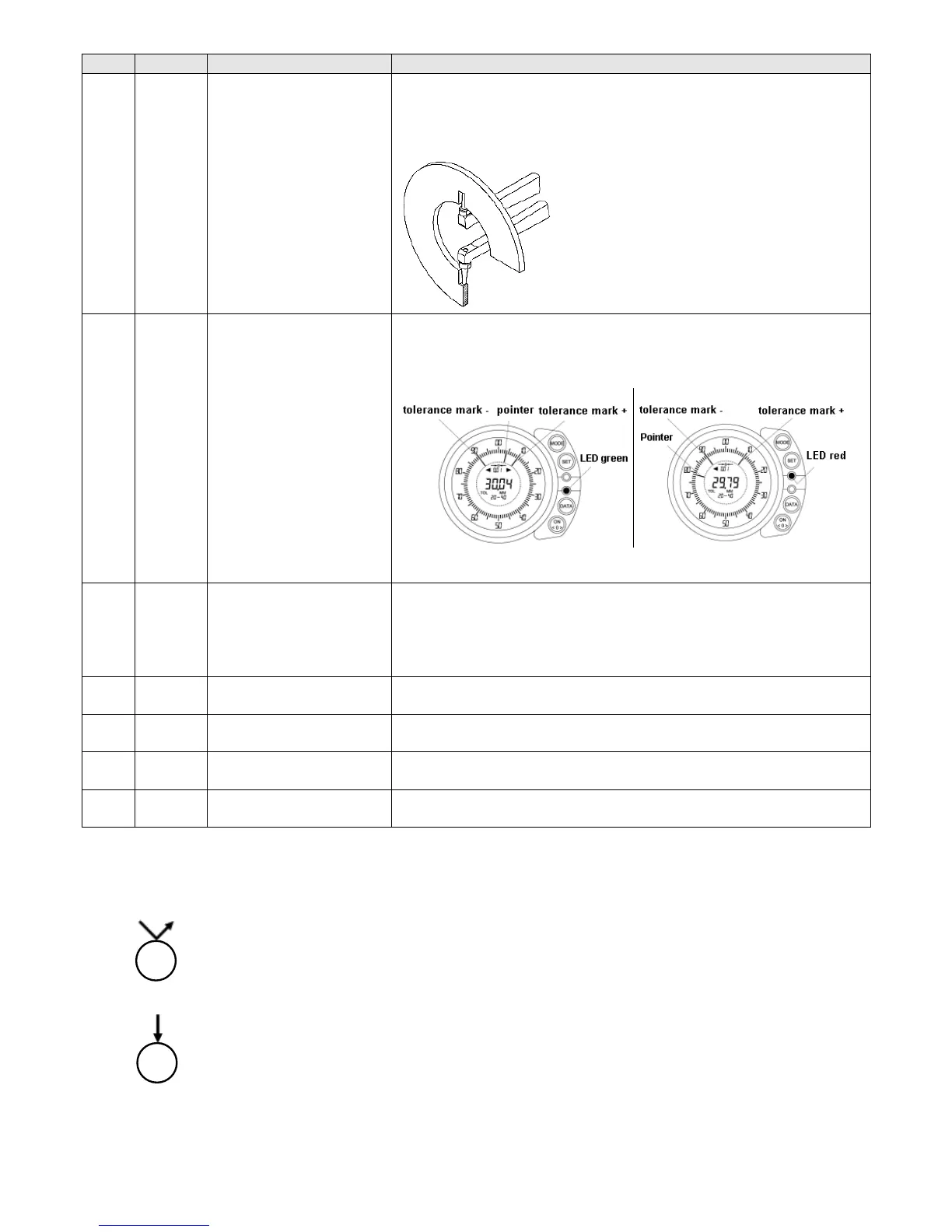

No. Display Function Application
4 HOLD Finding and saving of the
measured value
If the gauge cannot be used vertical and horizontal.
Hold gauge steady around 2 sec.
Measurement:
5 TOL Activation of the tolerance
marks and the tolerance
display
(red and green LED)
During series measurements the observance of the given tolerances will
be checked.
Example: Diameter 30 +/-0,1 mm will be checked
Measurement / Display:
Measured value within tolerance Measured value out of tolerance
The LED expires 5 sec. after having found a measuring value.
It switchs on after having found a new one.
6 SET Setup – Menu is active
Possible Settings:
- Configuration of the zero setting adjustment (OFFSET)
- Upper and lower tolerance limit (TOL)
- Measuring unit mm / INCH (UNIT)
- Numerical interval / Scale interval (RES)
7 MM Representation of the
measured value in MM
8 INCH Representation of the
measured value in INCH
14 Red LED Measured value is out of
tolerance
For fast identification of reject parts.
15 Green
LED
Measured value is within
tolerance
For fast identification of good parts.
Remarks:
= press the key shortly
= press the key long (> 2 sec.)
Example
