4. Handling of functions and programs

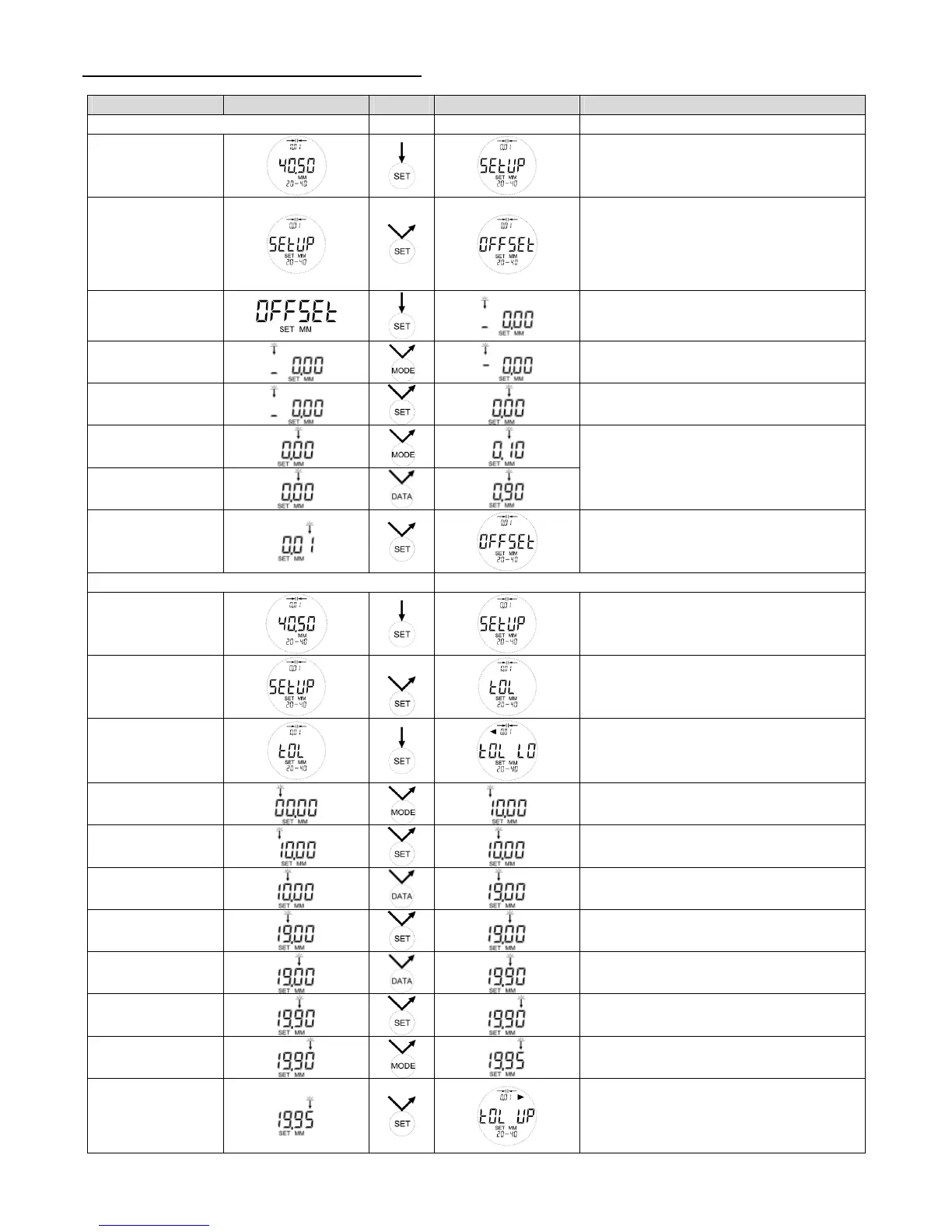

Function Basic Action Result Remarks
Zero point adjustment
Start SETUP
SETUP Menu can be started within every
measuring mode
OFFSET
Possible 0 point adjustment according to
resolution in certain ranges (see “9. Tech-
nical Details”). If the absolute OFFSET is
exceeded, the error report ERR 07 is
shown.
Adjustment
unsigned
= plus
Adjust + / -
signed
= minus
Select next digit
Adjustment
upwards
Adjustment
downwards
Applies for the blinking digit (scale inter-
val 0,005mm = 3 decimal places)
Quitting
After adjustment of the last digit
Adjustment of the tolerance limits in ABS Example: 20,00 +/- 0,05 mm
Start SETUP
SETUP Menu can be started within every
measuring mode
TOL
2x
Lower tolerance limit
Attention!
TOL LO must be lower than TOL UP
Adjust lower
tolerance limit
After short display TOL LO, the last
saved value will always be shown
Adjust first digit
MODE counts upwards
Select second digit
Adjust second digit
DATA counts downwards
Select third digit
Adjust third digit
Select fourth digit
Adjust fourth digit
Number of digits depending on the scale
interval
Adjust upper
tolerance limit
After short display TOL UP, the last saved
value will always be shown
