10.10 Checking the Cutter Blades and Blade Holder
Pos: 29.34.2 /B A/Sicherheit/7. Gefahrenhinweis e alt/Mähwer ke/Gefahr - Fehl ende und besch ädigte Mä hklingen und Mä hklingenhalterunge n @ 0\mo d_11972657228 13_78.docx @ 1 6342 @ @ 1
Warning! - Missing and damaged cutter blades and cutter blade retainers.
Effect: Danger to life, serious injuries or damage to the machine
• Check cutter blades at least once per day and check retaining bolts every time you change
the blades or after contact with foreign objects.
• Immediately replace missing or damaged cutter blades and cutter blade retainers
Pos: 29.34.3 /B A/Wartung/Mäh werke/Schutz vorrichtung hoc hklappen/runter klappen Bild AM-S Baureihe @ 73\mod_1308 125196166_7 8.docx @ 65502 5 @ @ 1

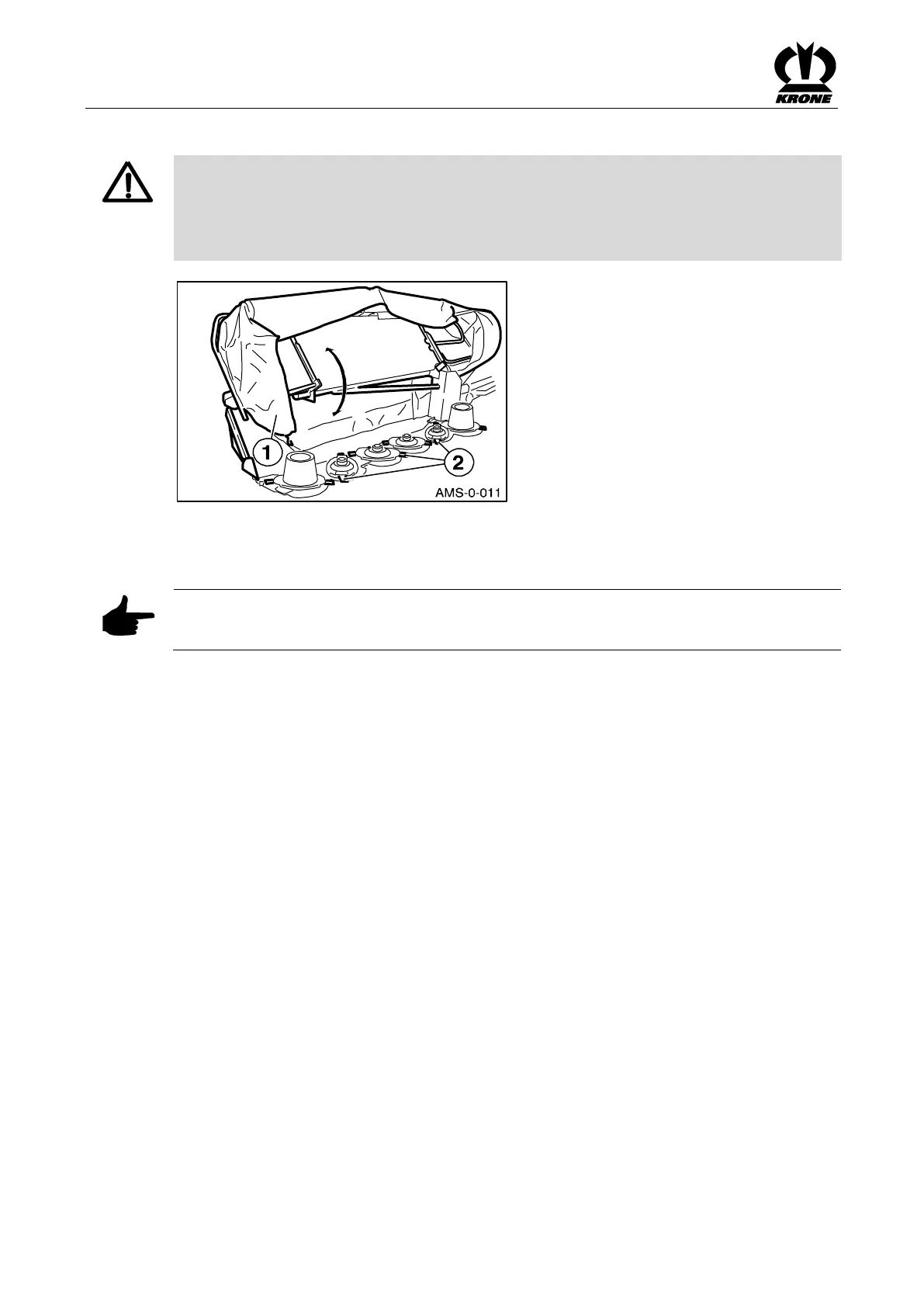

Fig.
Pos: 29.34.4 /B A/Wartung/Mäh werke/Schutz vorrichtung hoc hklappen/runter klappen AM Baurei he @ 70\ mod_13051770 31755_78.doc x @ 635507 @ @ 1
To check and fit the blades, fold up the protective device (1). Now you can access the blades
(2).
Note
After the inspection and installation tasks are completed, move the protective device into its
protective position.
