Start-up
33
Pos: 48.25 /BA/I nbetriebnahm e/Schwader/A nbau Gelenkwelle /Anbau Gel enkwelle beidseitig Weitwinkel Hi nweis auf G elenkwelle beacht en SW46T/ 42T/38T US @ 9\mod_12209 42928709_78.d oc @ 129302
SW46T003_1_US
1
2
3
4

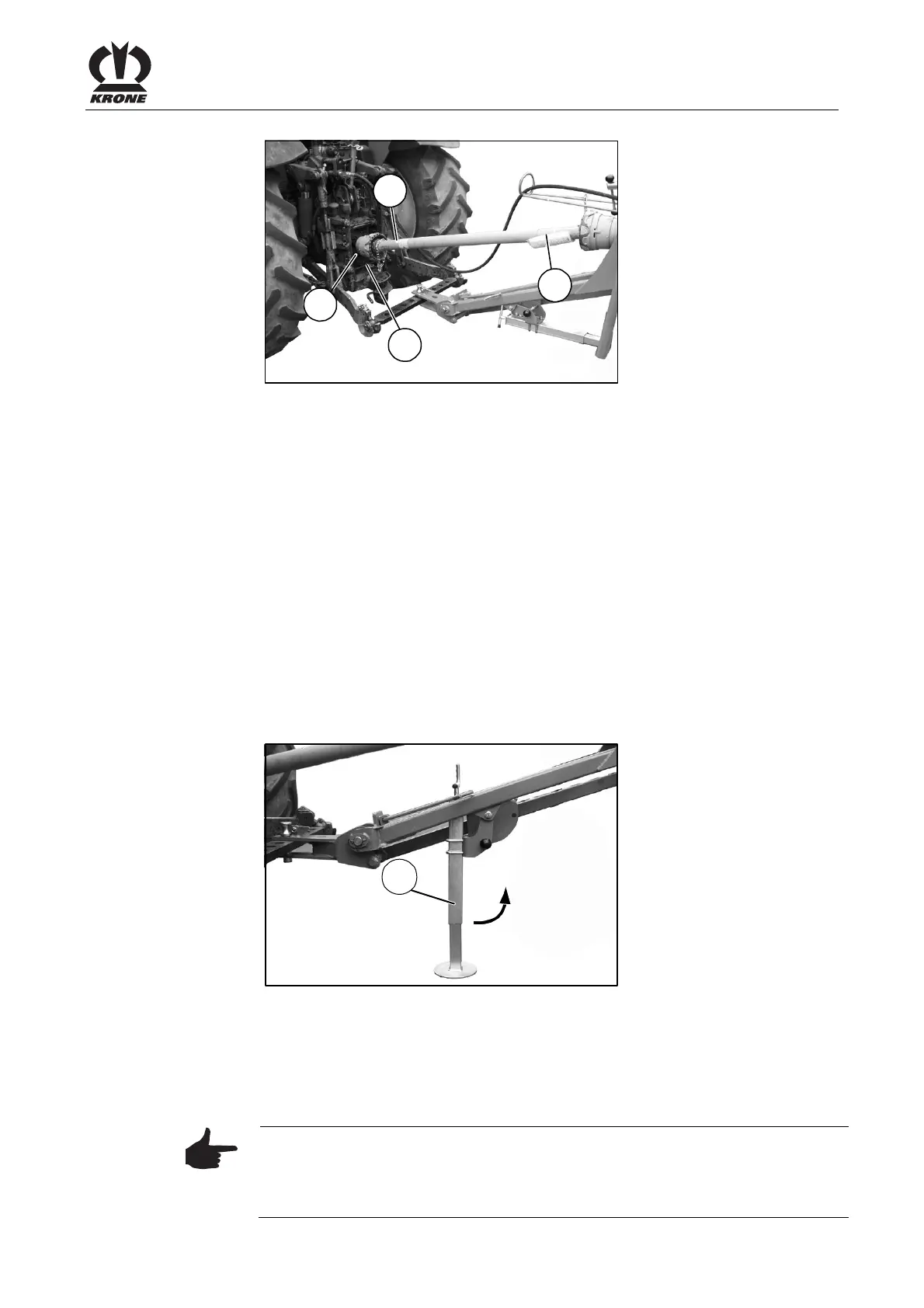

Figure 11:
• Switch off the engine and remove the ignition key.
• Secure tractor and machine against rolling.
• First mount the PTO shaft (1) on the machine side.
• Rotate the PTO shaft support (2) down.
• Then slide the PTO shaft onto the PTO of the tractor. In doing this, ensure that the sliding
pin is securely engaged.
Swadro 46T:
(Make certain the "Tractor" icon inscribed on the PTO shaft is actually inserted on the
tractor side.)
Swadro 38T, Swadro 42T:
(Make certain the wide-angle coupling is actually connected on the tractor side.)
• Secure the PTO shaft guard against turning with the retaining chain (3).
Pos: 48.27 /BA/I nbetriebnahm e/Schwader/Stütz füß in Trans portstellung S W46T/S710T US @ 9\mod_12 20951413990 _78.doc @ 12 9481
Swivelling parking jack into transport position
SW46T037_US
4
II
I
Figure 12:
Before the machine can be transported, the parking jack must be swivelled up.
• Crank up the parking jack (4).
• Pull the bolt (5) out of position II.
• Swivel up the parking jack (4)
• Use the bolt (5) to fix the parking jack in position I.
Pos: 48.28 /BA/I nbetriebnahm e/Schwader/Hin weis Stützfuß eindrehen SW 7 10 T @ 6\ mod_1215007004 388_78.doc @ 98059
Note
Screw in parking jack
Turn in the parking jack (4) until it no longer comes in contact with the tines in
its transport position or turn setting.
