10
Fan Powered Terminal Units IOM
INSTALL UNIT
1. Install eld-supplied eyebolts, straphangers or bolt rod
supports as desired. Figure 5 illustrates possible unit
suspension methods. A typical installation is shown in
Figure 6.
2. Care should be taken to use hanging materials of
sucient stiness and strength, rigidly attached to the
unit. Straps should not be located on coil anges, electric
heat sections, or control boxes. When using trapeze

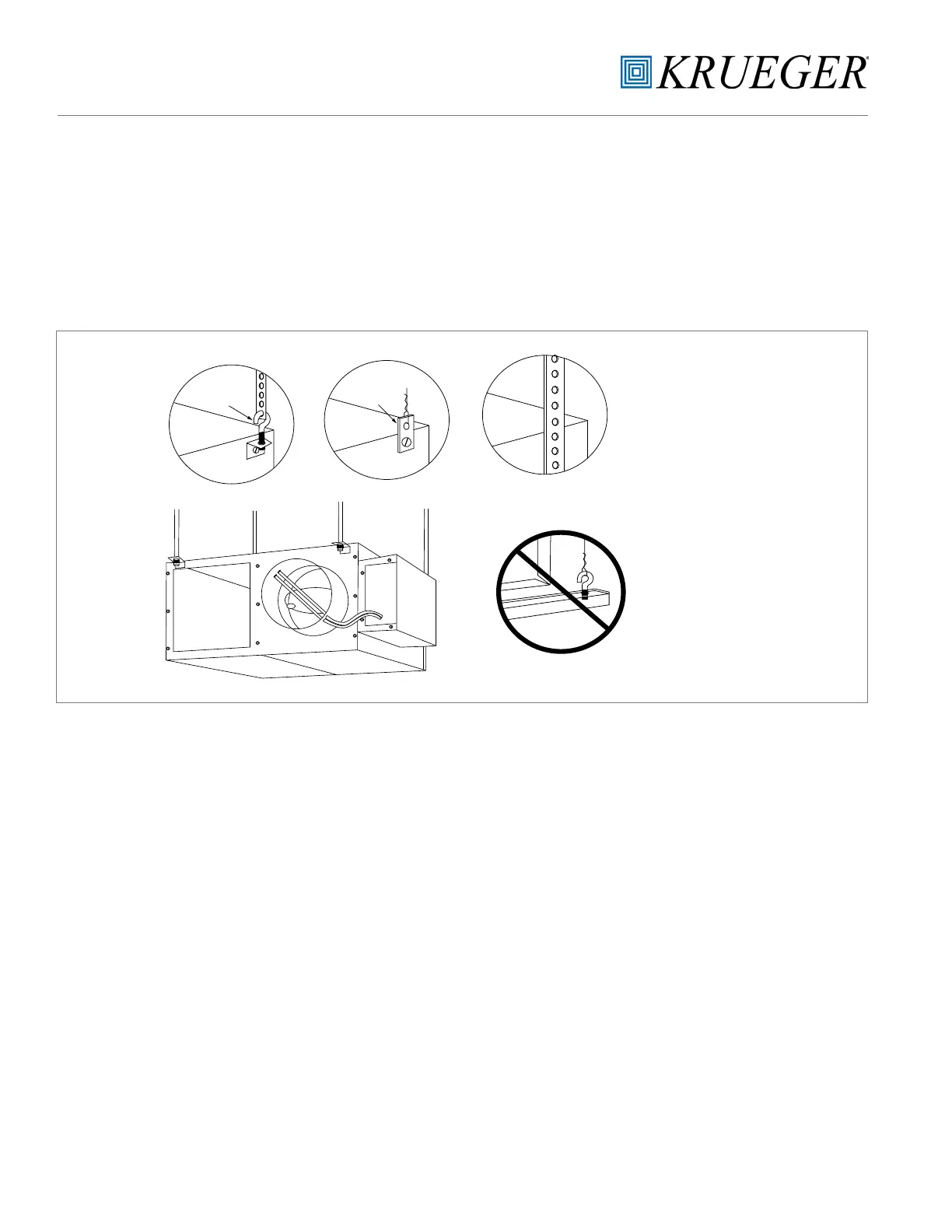

FIGURE 5 – Typical Unit Suspension Methods (KQFS Shown)
OPTIONAL
ACCESSORY
HANGER
FIELD-SUPPLIED
HANGING STRAPS
DO NOT suspend unit by trapeze
hangers that intefere with the unit
access panal.
FIELD-SUPPLIED
HANGER
BRACKET
supports, avoid areas where access is required to side
mounted controls, or side or bottom access doors.
For best installation with trapeze supports, provide
elastomeric material between unit and supports.
3. Hangers should be securely attached to bar joist or
mounting anchors properly secured to building structure
with lugs or poured-in-place hangers. Percussion nails
are not considered adequate anchors.
