KSB AMTRONIC R1300 User Manual

23
AM
T
R
ONIC R1300

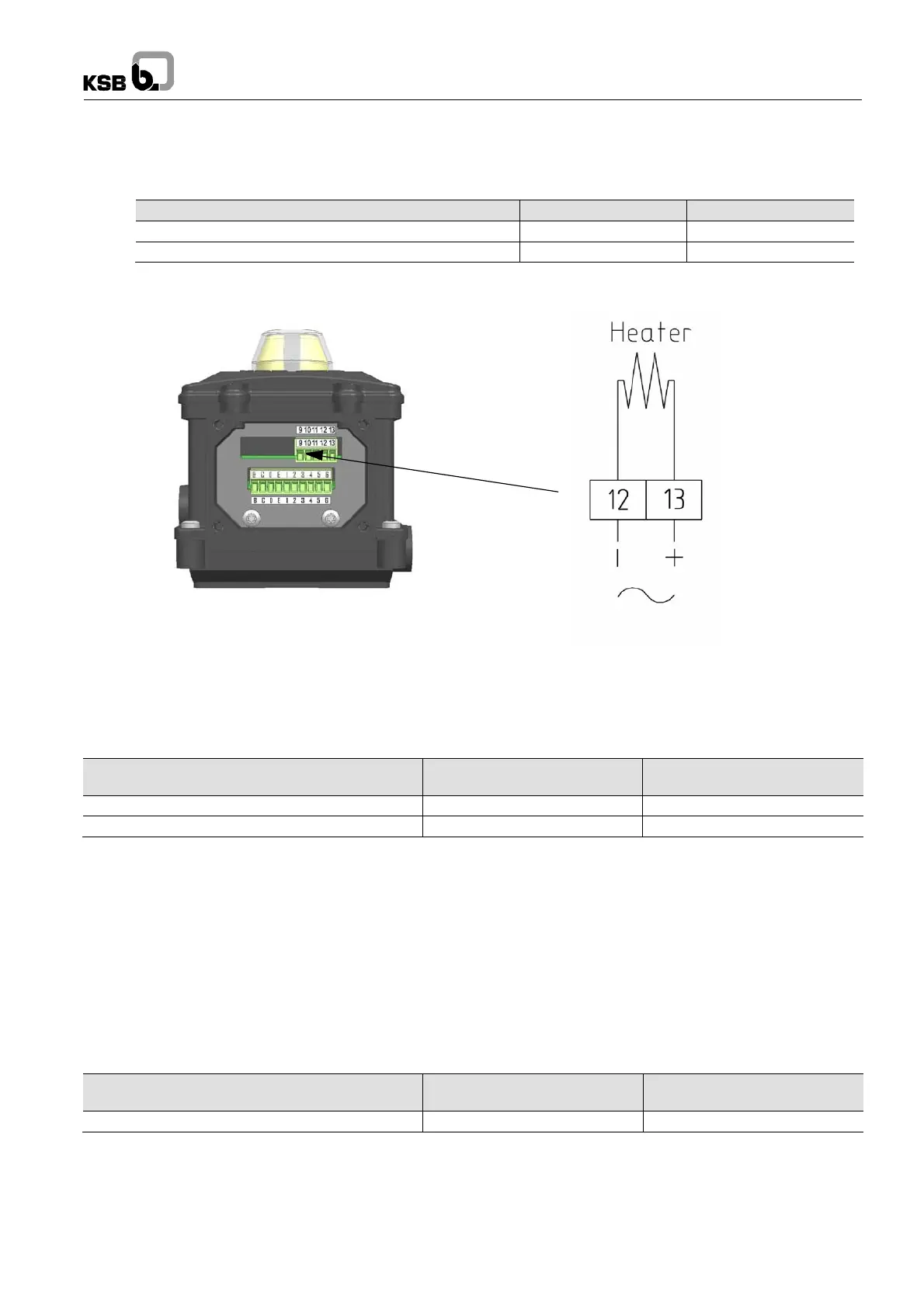

VI - 6 Heating resistance connection (option)
VI - 6 - 1 Electrical characteristics
Voltage Regulated temperature Consumption
12 Vdc - 24 Vdc
40 ° C
10 W
110 Vac - 230 Vac
50 ° C
10 W
VII - Pneumatic distribution
VII - 1 Monostable distributor
A single pilot connected to EV1.
Safety position on loss of
electrical supply
EV1=0 EV1=1
Closed Closed Open
Open Open Closed
VII - 2 Bistable distributor
The solenoid valve action depends on the valve safety position when the device has no electrical supply and for the
type of actuator in application.
Case N° 1:
- ACTAIR 3 to 200, end-stops on closing
- ACTAIR NG 2 to 160, end-stops on closing
- DYNACTAIR 1.5 to 25, closing by air failure, end-stops on closing
- DYNACTAIR 50 and 100, opening by air failure, end-stops on opening
- DYNACTAIR NG 1 to 80, opening by air failure, end-stops on opening
EV1=0
EV2=0
EV1=1
EV2=0
EV1=0
EV2=1
Last command Closed Open
