lares 4.0 Installation manual
11 R30024.120en
2. INSTALLATION
Before starting with the installation, choose an appropriate site where to install the control panel, following the
recommendations below:
• Choose a vertical flat surface, with sufficient space around for installation and the opening operations.
• For an optimal wireless transmission, install the panel to an height of at least 150 cm from the floor, as much as
possible centrally located with respect to the peripherals. Avoid installations in cellars or in proximity of
obstacles that can disturb the propagation of radio waves, like huge metal or concrete beams, electrical
frames, big White Goods or large metallic masses.
• Choose a place difficult to reach by thieves and accessible by the user, better if protected by one or more
motion sensors.
• At the entrance, we suggest to consider the installation of just one keypad.
2.1 lares 4.0 control panel description and connections details

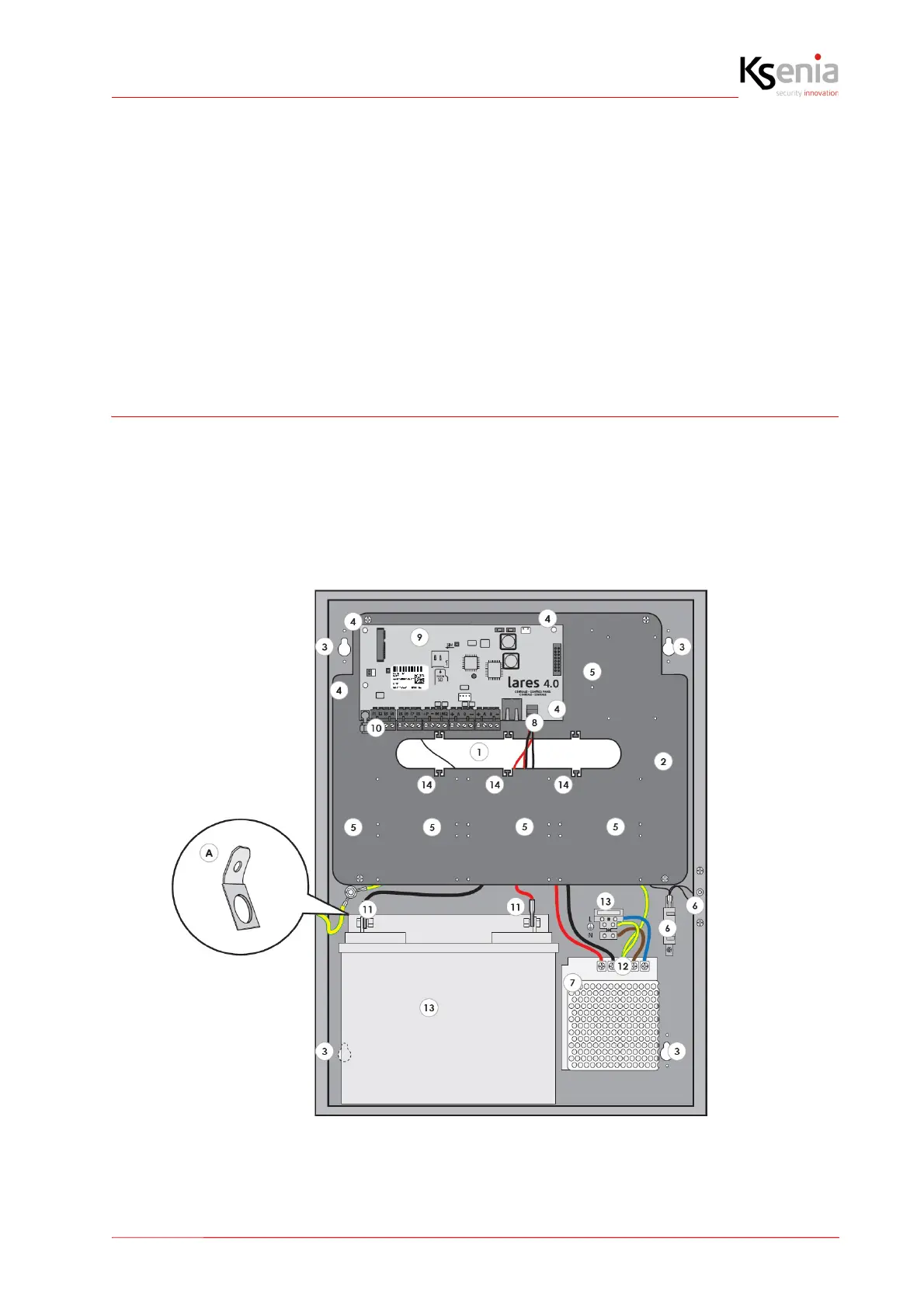

The main parts of the lares 4.0 system are identified below.
The image also shows the Power Supply connections: pay attention to the protection ground connection.
The large slot in the metal box bottom allows a convenient passing of cables for wiring the peripheral devices, even
in the case of large systems.
- Figure 1 -
