YPbPr/YCbCr Input Connection

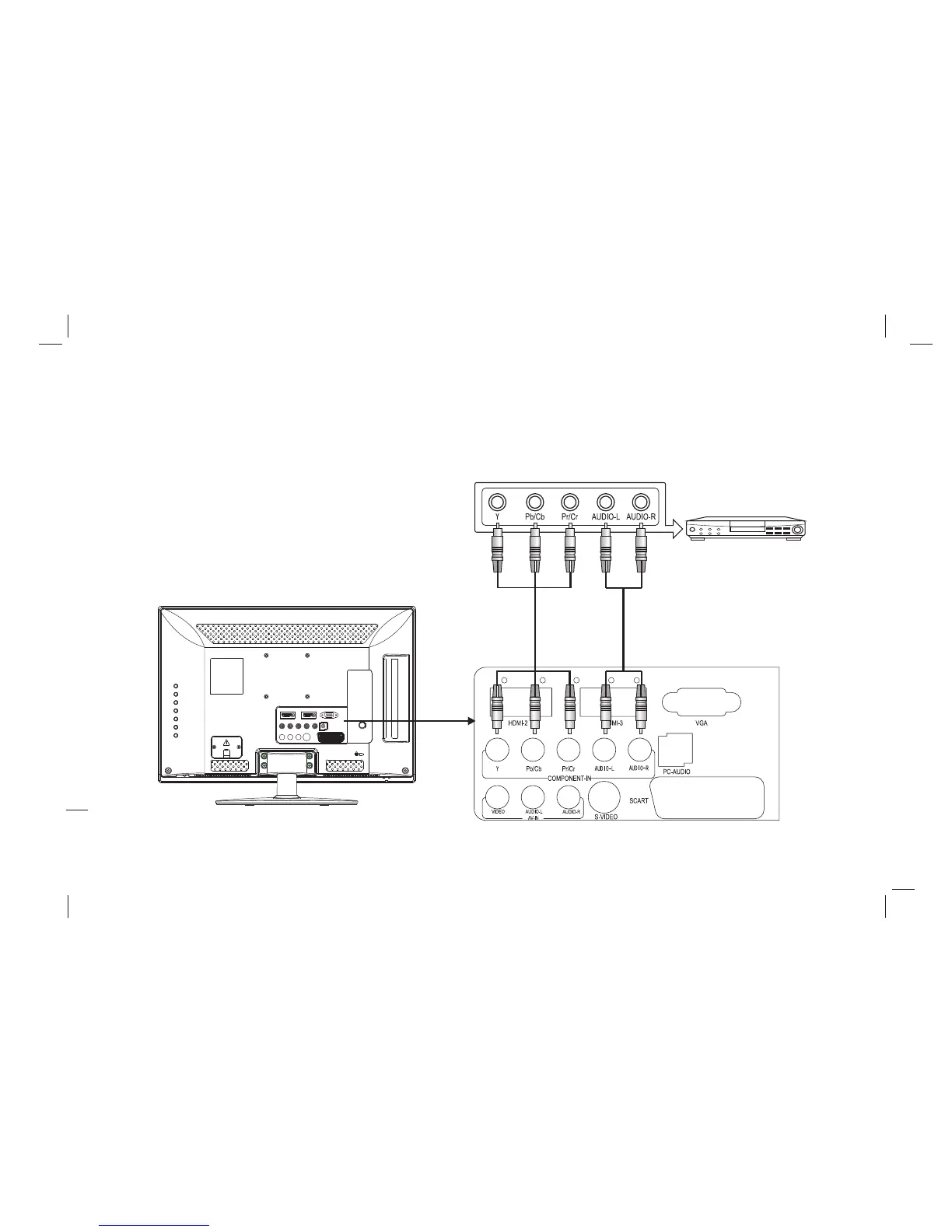

If the signal source is DVD, Digital wired receiver or equipments with the YPbPr/YCbCr output, recommends you to
connect YPbPr or YCbCr output with the TV YPbPr/YCbCr input. In order to obtains the better picture quality, at the same
time, please connect its audio output with TV audio input as shown in the following chart. If you choose the YPbPr/YCbCr
signal, please set signal source selection under YPbPr pattern.
CVBS, DVD Player or other
machine with YPbPr/YCbCr.
G Green (Y)
B Blue (Pb/Cb)
W White(AUDIO-L )
R Red (AUDIO-R, Pr/Cr)
